E N
Nome file:
7540028EN - CUSTOMER MANUAL SF15_200 TOP EN.docx Rev. 1 12/06/2017
14-28
Fig. 20

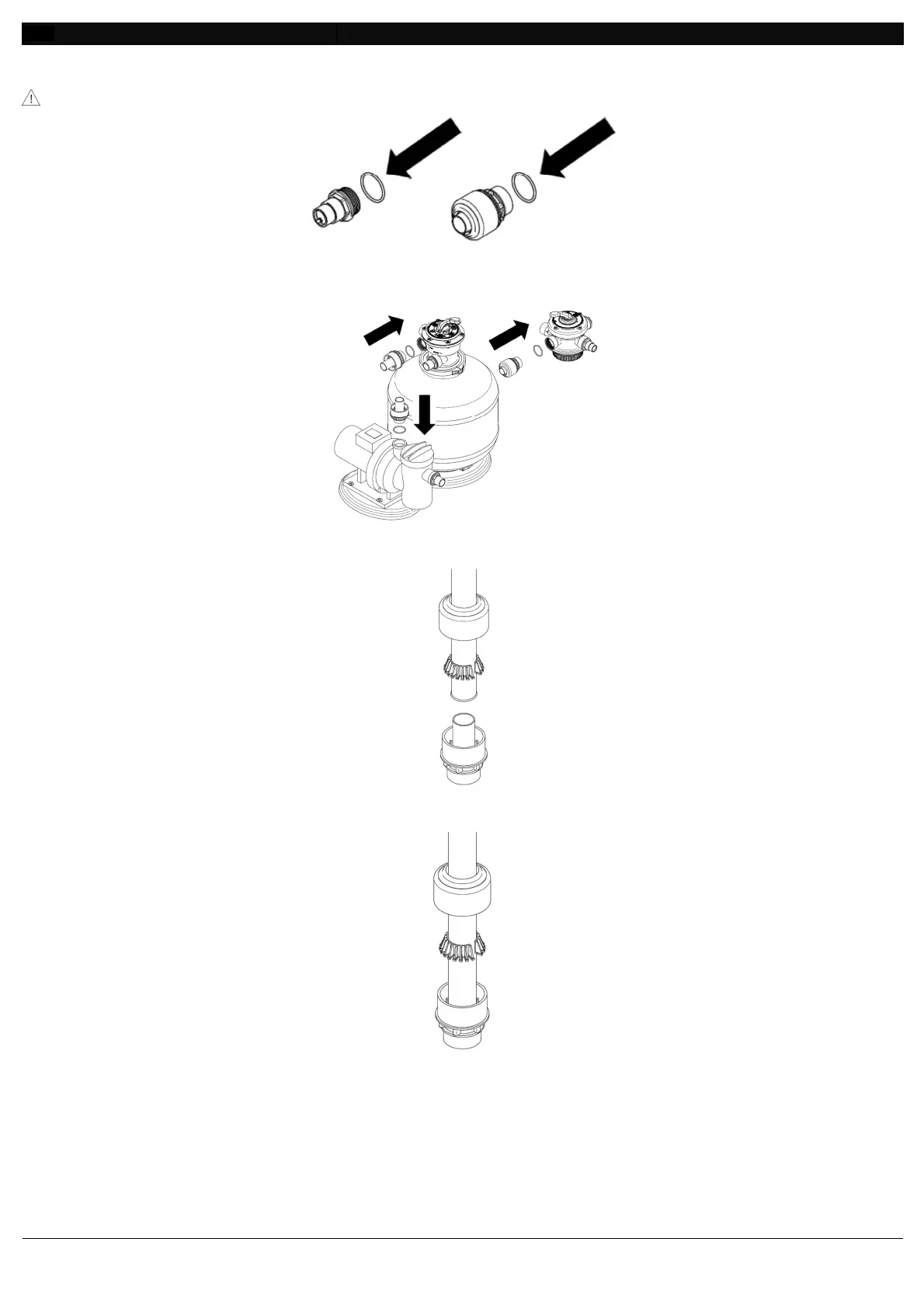

Position the O-rings on the hosetail (Fig. 21).
Fig. 21
Proceed as follows:
1. Screw the two hosetail (Fig. 22).
Fig. 22
2. Insert onto the hose: ring nut, split ring (Fig. 23)
Fig. 23
3. Insert the hose all the way in until it goes no further (Fig. 24)
Fig. 24
4. Move all the components forward.
5. Tighten the nut (Fig. 25).
