Description of the device
Features
The Light Brick is a 4 Channel Dimm- / Switch-Pack from Showtec.
• 4 channel DMX chaser with 16 built-in programs
• 4 channel DMX dimmer pack with 4 individual DMX addresses
• Normal/Cross dimmer
• Forward/Reverse chasing direction
• Fade Time control
• Preheat function
• Manual override
• Built-in microphone for Music triggering
• Power failure memory

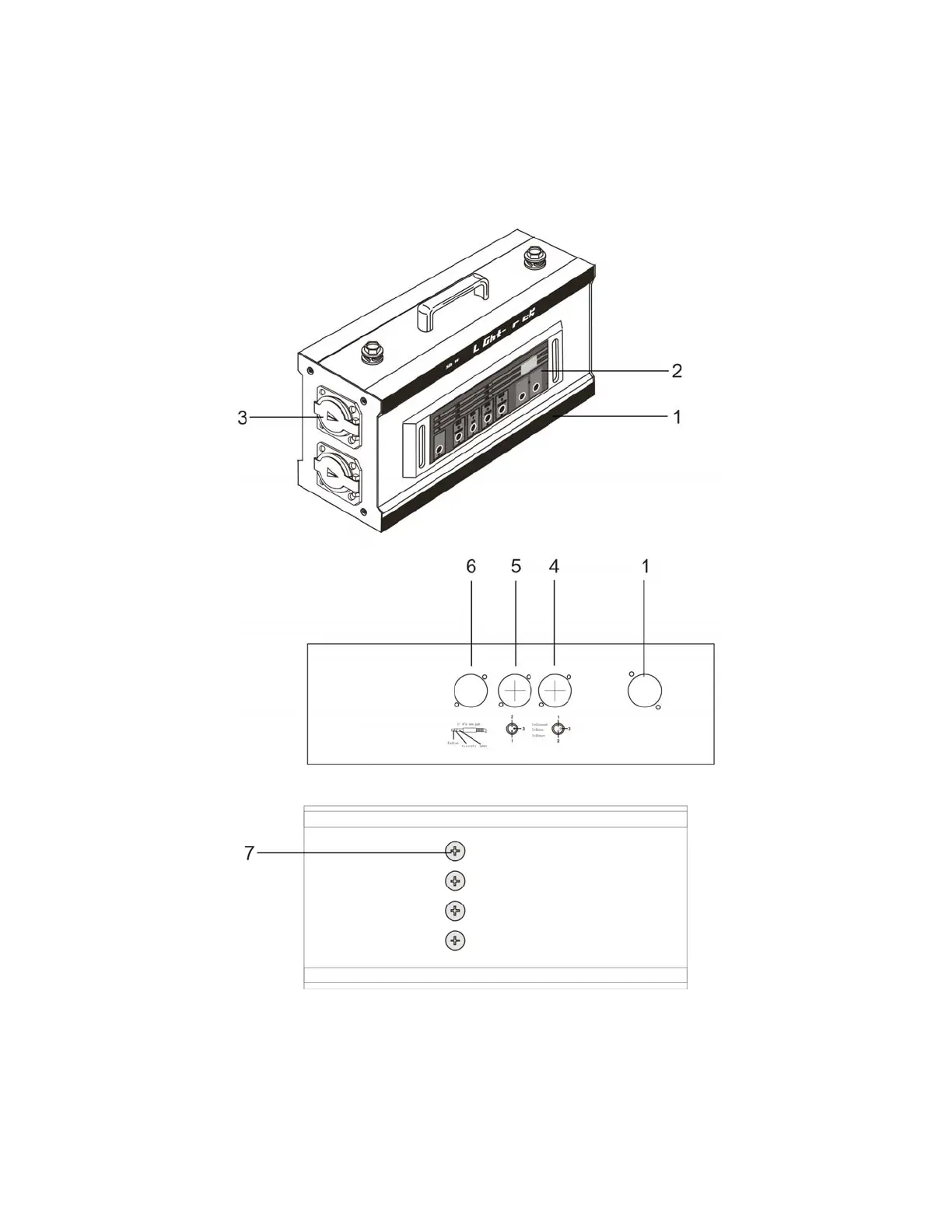

Fig. 1
Fig. 2
Fig. 3
1. Power Input: Power cable/ Powercon Neutrik input
2. Control Board: Control this unit via these function buttons.
3. Channel Output: 1.5 A/CH., Total 6 A max.(CE)
4. DMX-Out: This connector sends DMX signal.
5. DMX-In: This connector receives DMX signal.
6. Remote Control In: Provides Full On, Stand By operation via the Foot Controller(sold separately).
7. Channel Fuse: F6.3A 250V 5x20mm
