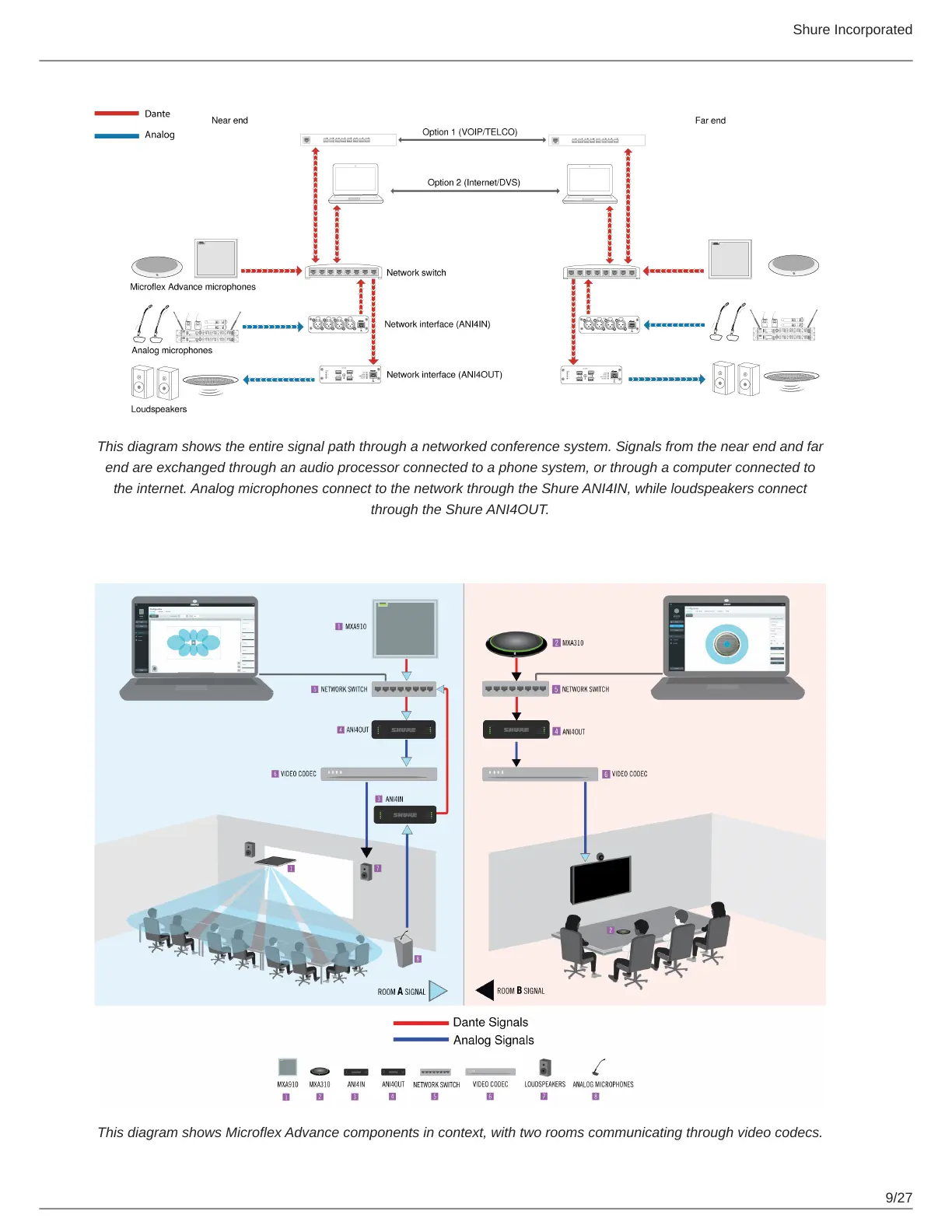

This diagram shows the entire signal path through a networked conference system. Signals from the near end and far
end are exchanged through an audio processor connected to a phone system, or through a computer connected to
the internet. Analog microphones connect to the network through the Shure ANI4IN, while loudspeakers connect
through the Shure ANI4OUT.
This diagram shows Microflex Advance components in context, with two rooms communicating through video codecs.
