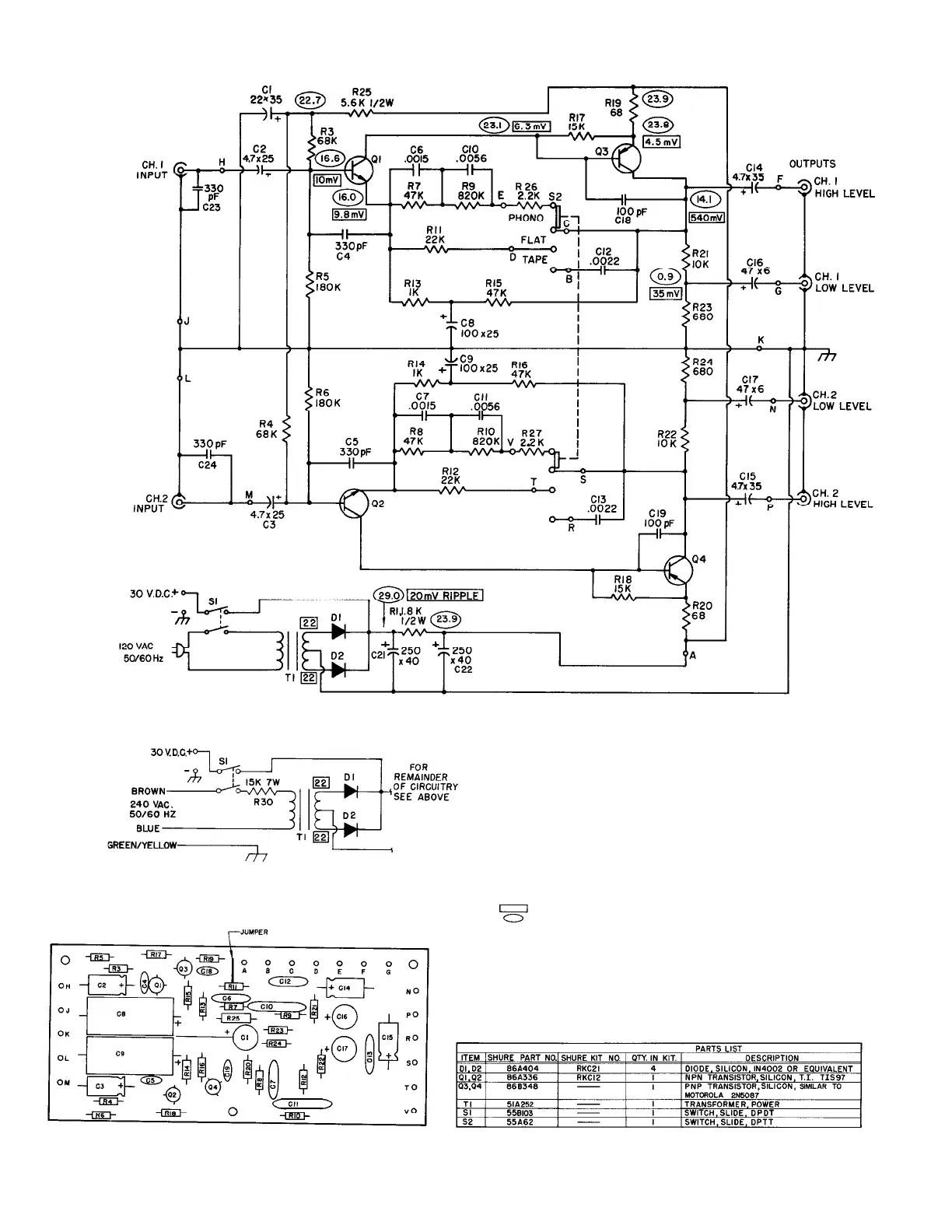

MODEL M64 CIRCUIT
MODEL M64-2E CIRCUIT
NOTES:
1. ALL CAPACITORS IN MFD AND 100 VOLTS OR MORE UNLESS
OTHERWISE SHOWN.
MFD x VOLTS.
ELECTROLYTIC CAPACITORS SHOWN IN
2. ALL RESISTORS 10%, 1/4 WATT UNLESS OTHERWISE SHOWN.
3. THE FOLLOWING SYMBOL WITH LETTER DESIGNATION DENOTES
A TERMINAL ON PRINTED CIRCUIT BOARD ASSEMBLY.-
4.
DENOTES A.C. VOLTAGES
DENOTES D.C. VOLTAGES
ALL VOLTAGES MEASURED WITH A.C. LINE = 120V., 60HZ, PHONO
EQUALIZATION, INPUT TO CHANNEL 1 = 10 MV RMS AT 1000 HZ.
D.C. VOLTAGES MEASURED WITH 11 MEGOHM VTVM.
VOLTAGES MEASURED WITH I MEGOHM VTVM.
A.C.
VOLTAGES
ARE TYPICAL AND MAY VARY ±20%. CHANNEL I VOLTAGES
ONLY SHOWN. CHANNEL 2 IS SIMILAR.
PRINTED CIRCUIT BOARD
