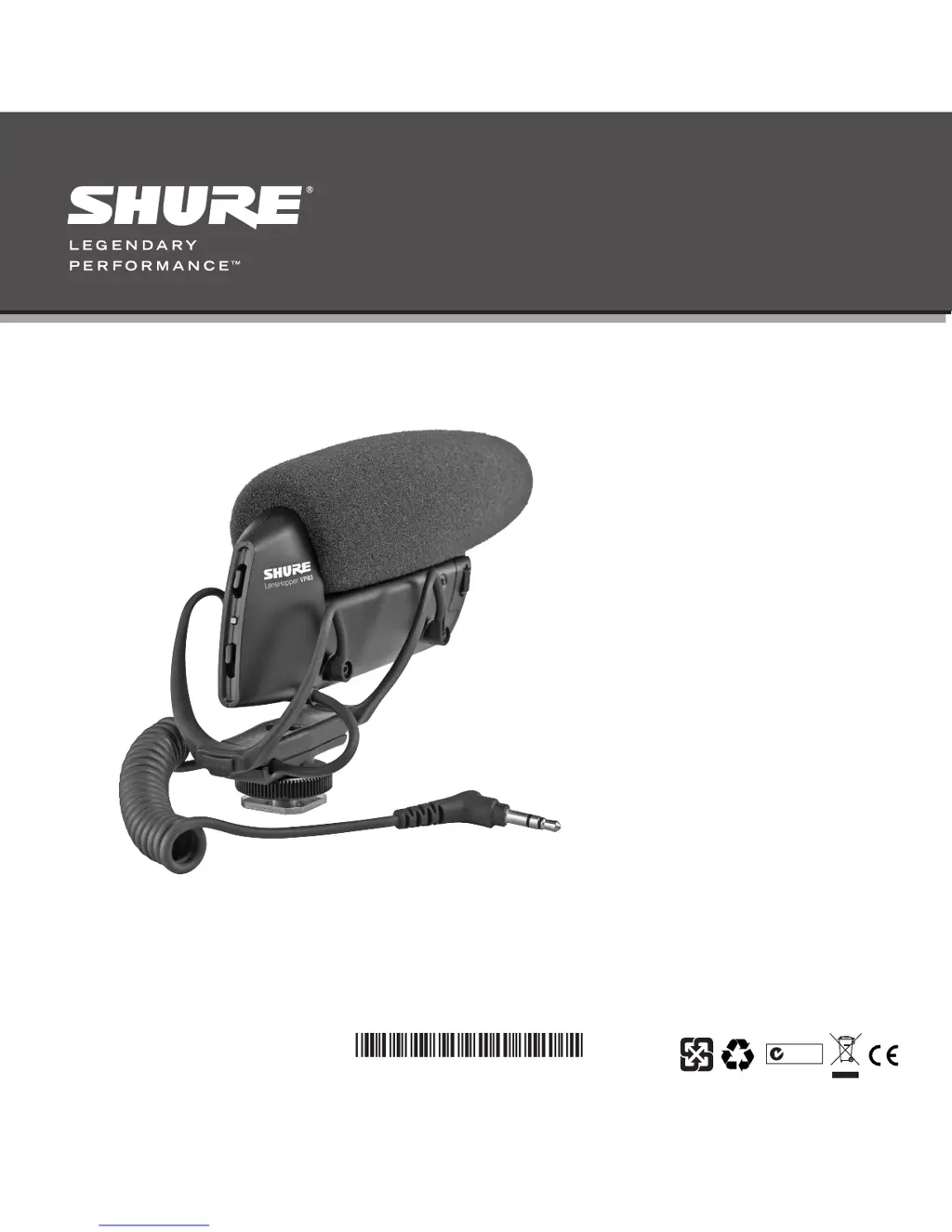

Shure VP83 User Manual

N108
© 2013 Shure Incorporated
Printed in China
27A20676 (Rev. 2)
User Guide
Le Guide de l’Utilisateur
Guia del Usuario
Guida dell’Utente
Bedienungsanleitung
Руководство пользователя
取扱説明書
사용자 안내서
用户指南
Gebruikershandleiding
Manuale d’uso
Pengguna Panduan
Wired Microphones
VP83

Shure VP83 Specifications

General

Type	Condenser
Polar Pattern	Supercardioid
Frequency Response	50 Hz - 20 kHz
Output Impedance	200 ohms
Battery Life	100 hours
Power Requirements	1 AA alkaline battery
Sensitivity	-30 dBV/Pa
Output Connector	3.5 mm (1/8")

Summary

VP83 Microphone

General Description

Overview of the Shure VP83 condenser microphone for professional audio capture with DSLR and video cameras.

Key Features

Highlights key features of the VP83 microphone, including its polar pattern, connectivity, and durability.

Mounting the Microphone

Step-by-step instructions for attaching the VP83 microphone to a camera shoe mount.

Installing Batteries

Guide on how to insert and replace the AA battery for the VP83 microphone.

Audio Configuration

Connect to Camera or Recording Device

Connect the VP83's audio cable to the camera or recording device's audio input.

Set Camera Gain to Minimum

Lower camera gain to minimum for optimal signal-to-noise ratio with the VP83.

Perform Sound Check and Adjust Gain

Guide to adjusting the VP83's gain switch after a sound check for optimal levels.

Monitor Audio Signal

Instructions for monitoring audio output via camera headphones.

Specifications

Troubleshooting

Unit Does Not Turn On

Steps to resolve when the Shure VP83 microphone fails to power on, focusing on battery and connections.

Sound is Distorted

Troubleshooting guidance for distorted audio output, covering gain settings and cable integrity.

No Sound Output

Solutions for the VP83 microphone producing no audio, checking connections and gain levels.
