MICROPHONE PARTS
The WH20 consists of the following parts:
MICROPHONE PARTS
FIGURE 1
COLLAPSIBLE MICROPHONE BOOM
The WH20 headset features a collapsible boom for shipment and storage. Before wear-
ing the headset, unfold the boom until it snaps and locks into place. Refold for storage
or transportation.
WEARING THE HEADSET
Place the headset wireframe around the head so that the wireframe and elastic band are
horizontal across the back of the head and the ends of the wireframe fit over and in
front of the ears. Position the elastic headband either above or below the wireframe to
provide the greatest comfort and stability. The white “SHURE” should face outward.

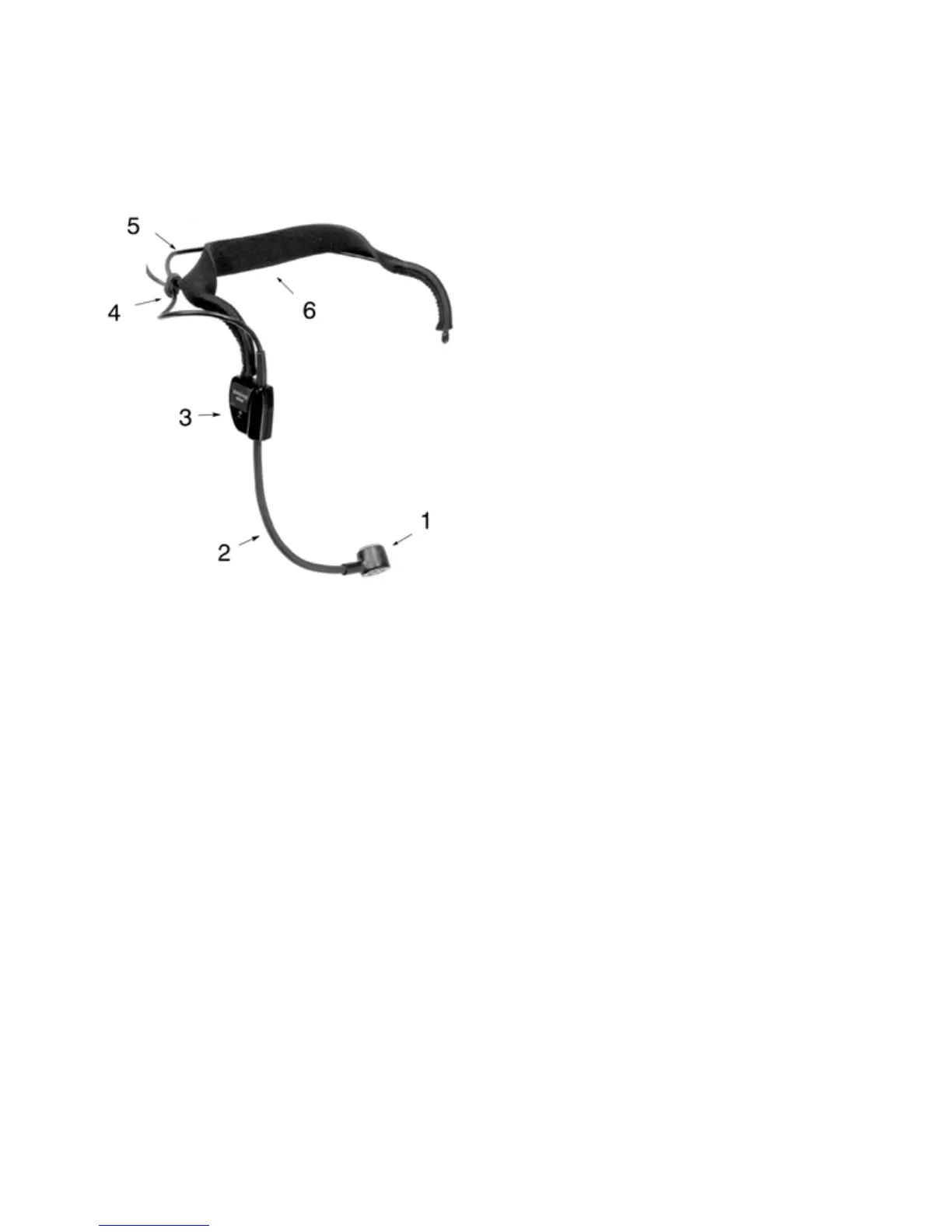

1. Microphone Cartridge
2. Microphone Boom
3. Hinged Housing
4. Cable and Cable Retainer
5. Wireframe
6. Elastic Headband
