Siamp STORM 33A Assembly Manual

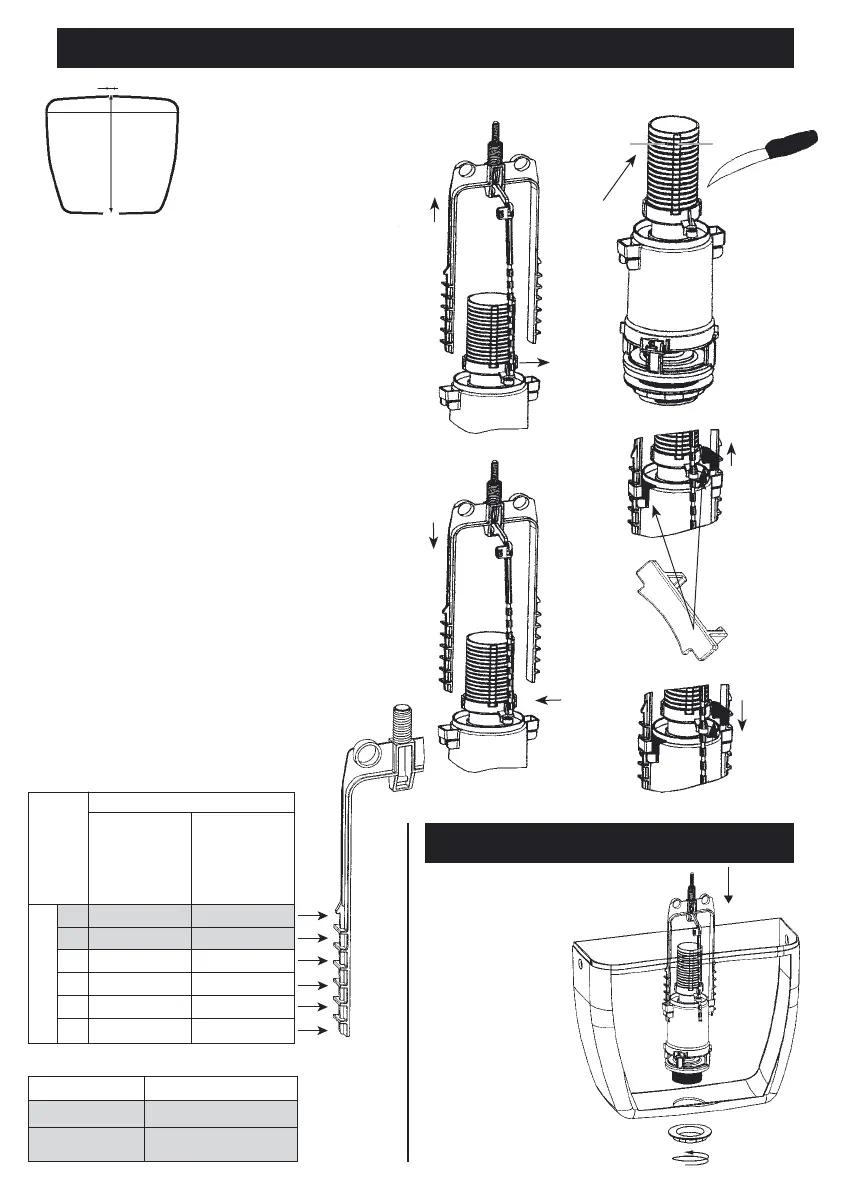

I - PREPARATION OF THE MECHANISM
II - INSTALLATION
 Check the positioning of the stirrup
if the stirrup (k) is positioned correctly
with reference to the table below, move
on to step
➑
; otherwise, go through all
the following steps in order:
➊
Unclip the lift rod (c)
➋
Remove the 2 grey blocking clips (d)
➌
Remove the stirrup (k)
➍
If necessary, cut the overflow (j) as shown
in the table
➎
Set the stirrup (k) in the suitable
notch - see table
➏
Clip the 2 grey blocking clips (d) back in
place
➐
Clip on the lift rod (c)
➑
Unscrew the plug nut (f)
Measure the cistern:
- H (from top of lid to inside bottom of cistern)
- D (diameter of hole in lid)
Height of cistern H
Diameter D Diameter D
of hole of hole
in lid from in lid from
16 to 36 mm & 37 to 42 mm
43 to 50 mm
1* 307 to 325 325 to 343
2* 326 to 340 344 to 358
3 341 to 355 359 to 373
4 356 to 370 374 to 388
5 371 to 385 389 to 403
6 386 to 400 404 to 418
Stirrup adjusting notch
H
D
➌
➊
➍
Stirrup notch Overflow
1 Cut between e and f
2 Cut between b and c
Position the mechanism
in the cistern and attach
it with the nut (f).
➎
➐
➏
Blocking clips
➋
