Siamp STORM 33A Assembly Manual

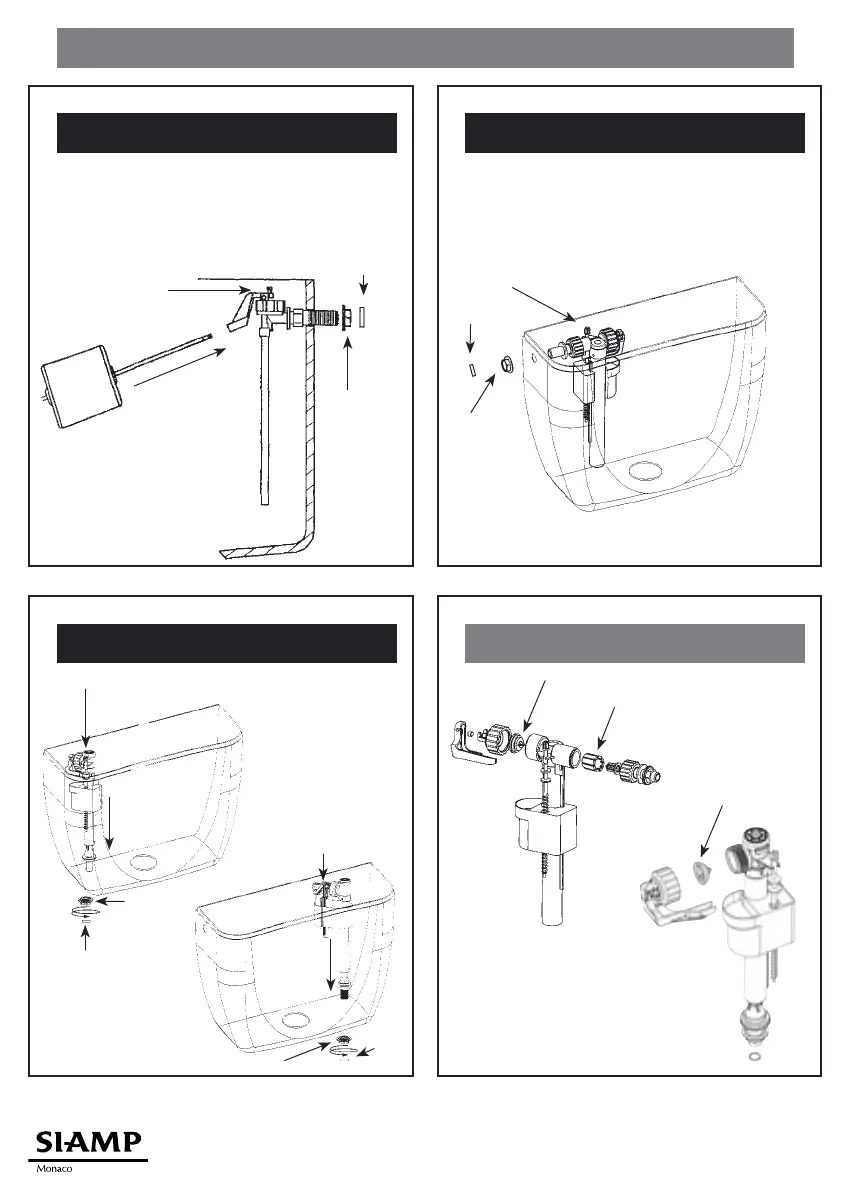

INSTALLING THE FLOAT VALVE
ROBECO 06 and STANDARD 15EL
COMPACT 95L
MAINTENANCE (95L & 99B)
COMPACT 99B and HANDY 93B
4, quai Antoine 1
er
- BP 219 - MC 98007 MONACO Cedex
Tél. 00 377 93 15 53 75 - Fax : 00 377 92 05 71 04 - E-mail: contact@siamp.com
➊
Position valve
➋
Fasten with nut
➌
Connect to water supply
➍
Adjust water level with the adjustment screw
➊
Position valve
➋
Fasten with nut
➌
Connect to water supply
➍
Adjust water level with the adjustment screw
(15 EL) or by bending the rod (06)
Adjustment screw
Adjustment screw
Insert rod
as far as
possible
Locking
nut
Locking
nut
Fiber gasket
Fiber gasket
Adjustment screw
Locking nut
Fiber
gasket
Locking
nut
Gasket/filter
Filter
Membrane
Membrane
N.B. Ensure tightness of
connection to cistern with fiber
gasket, without the use of any
corrosive joint compound
N.B. Ensure tightness of connection to cistern with
fiber gasket, without the use of any corrosive joint
compound
N . B . E n s u r e
t i g h t n e s s o f
c o n n e c t i o n t o
cistern with filter
gasket, without the
use of any corrosive
joint compound
Adjustment screw
