HOW TO SET UP XSTREAM-E
The Mini Controller works by pressing the arrows for at least 1 second. If the touch is too fast, the Mini
Controller will not sense the input given. Press the arrows to move along the desired pre-set timing
program. Touch arrow UP to increase the pump’s speed and water ow, arrow down to decrease them.
Each single touch gives a new input, indicated by the blue LED light, to the Mini Controller.
SHORT PULSE: (MPP) cycle 5 seconds - Pre-set Timing
MEDIUM PULSE: (MPP) cycle 20 seconds
LONG PULSE: (MPP) cycle 60 seconds
RANDOM PULSE: (MPP) cycle 5-30 seconds
0-10V CONTROLLER IN
Constant Speed Mode (MVC) 800gph
Constant Speed Mode (MVC) 1190gph
Constant Speed Mode (MVC) 1450gph
Constant Speed Mode (MVC) 1850gph
Constant Speed Mode (MVC) 2250gph

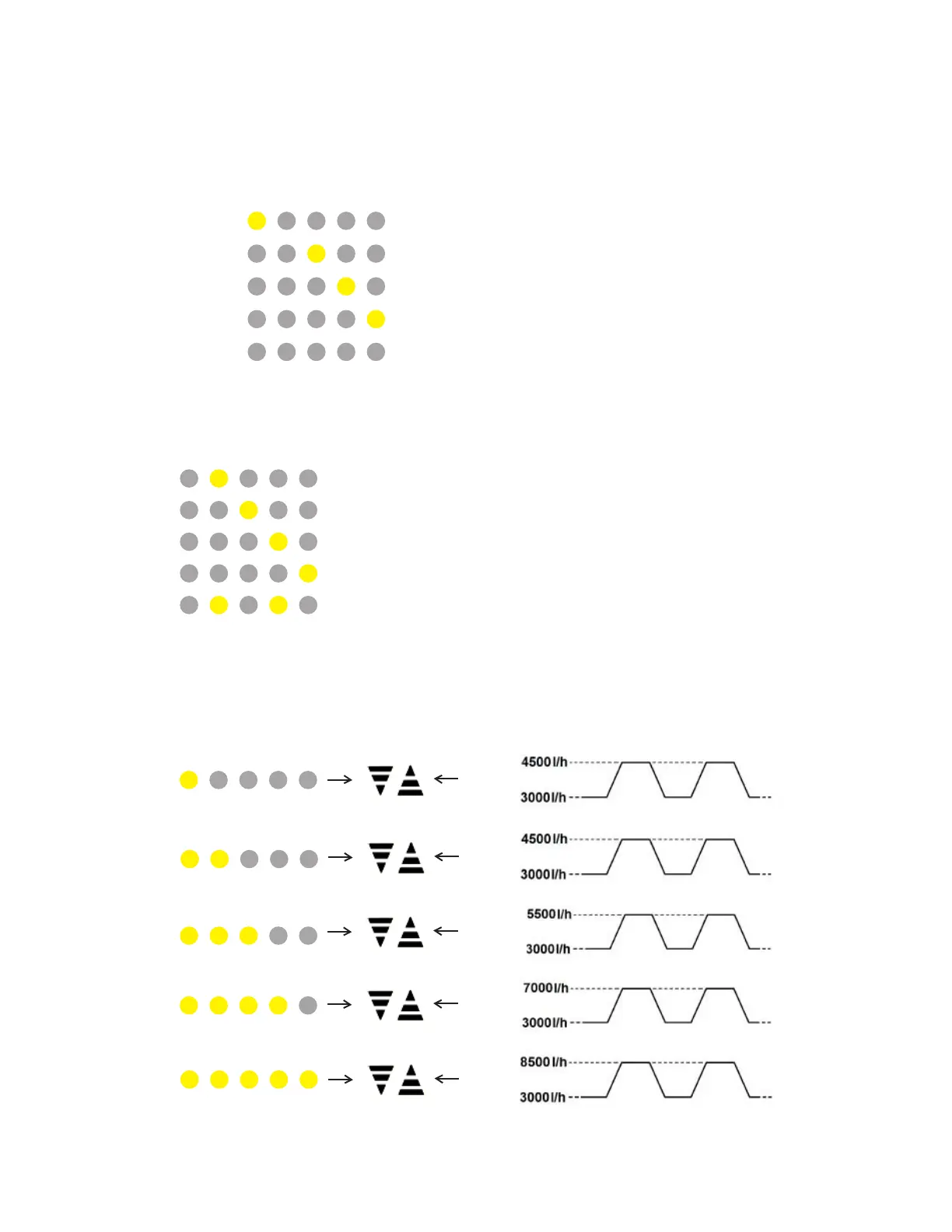

To move from Constant Speed Mode (MVC) to Pre-set Timing Programs (MPP) and vice versa, press
both arrows. The blue LED lights will indicate the selected program as shown below:
When you are in MMP move along the different programs by pressing arrow UP and arrow DOWN.
According to the speed you set, the MMP cycles will reach the max ow according to the following chart:
MMP
MMP
MMP
MMP
MMP
