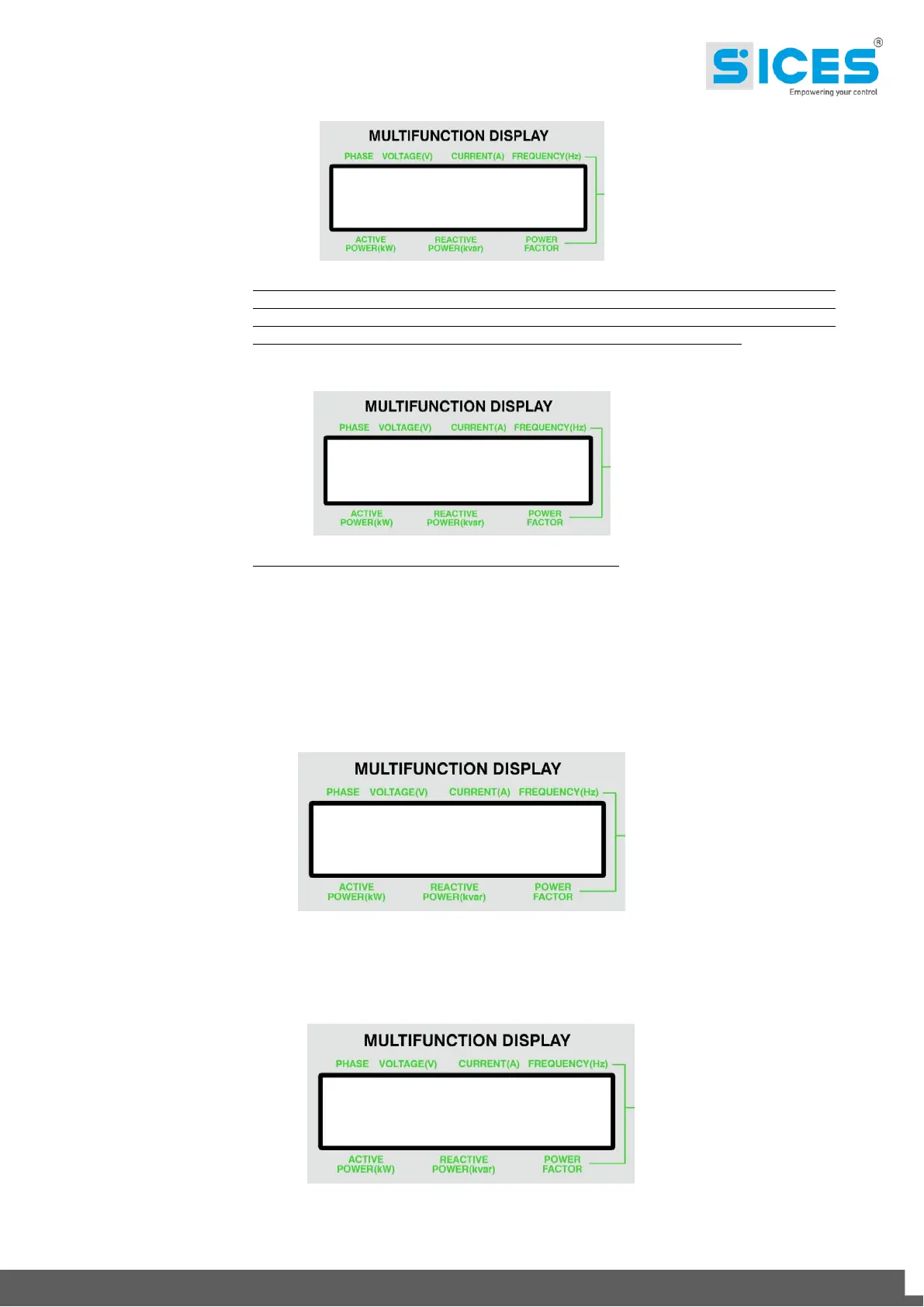

DST2600 User’s Manual 17
On the first row is shown the total apparent power expressed in kVA. On the second
row, with three-phases systems, there is a text showing the phase sequence of the
generator (CW = clockwise / CCW = counter clockwise). If the system is configured
as single phase, the text is substituted with dashes (as in the example).
- Page 2:
This page is shown only with three phases systems. It shows the powers related to
each single phase, cyclically. In the first row it is shown the present phase (1 in the
example), followed by its apparent phase power (in kVA), by its power factor and by
the indication of the type of its load (i if inductive, c if capacitive). The second row
shows the active power (in kW) and the reactive power (in kvar) of that phase. If the
active power and the power factor have negative sign, the system is working in a
power reverse situation.
NOTE: if in “MODE1” the phases scansion is halted, this page will result halted too.
- Page 3:
In the first row it is shown the total active energy supplied by the generator (in kWh).
In the second row it is shown the counter of the total reactive energy supplied by the
generator, in kvarh.
- Page 4
Total kVA: 10.1
Phase sequence: --
1 0.0kVA 1.00i
0.0kW 0.0kvar
MAINS R S T Hz
399 398 396 50.0
