1 Integrated lighting = 4 x LED (2 x left/2 x right);
2 x LED (2 x left) on ECO variant
2 Feed-back spot (e.g. for Good Read) = 1 x green LED
3 Aiming laser for alignment (aiming), can be deactivated = 2 x red
laser LEDs
The ECO variant has no aiming laser.
a
LED and Laser Radiation
The accessible radiation from the laser and the LEDs does
not represent a risk due to the normal restrictions imposed
by human behavior. It is not possible to entirely rule out
temporary, disorientating optical effects on the human eye
vision), in particular in conditions of dim lighting. No safety
precautions are required. Caution – if any operating or
or other methods are employed, this can lead to dangerous
exposure to radiation.
Do not intentionally look directly into light sources.
Do not view the laser directly with optical instruments
(e.g. magnifying glass, microscope)
Comply with the latest version of the applicable regulations
on photobiological safety of lamps and lamp systems as
well as on laser protection.
Additional information see "Technical Data (Excerpt)", page 5.

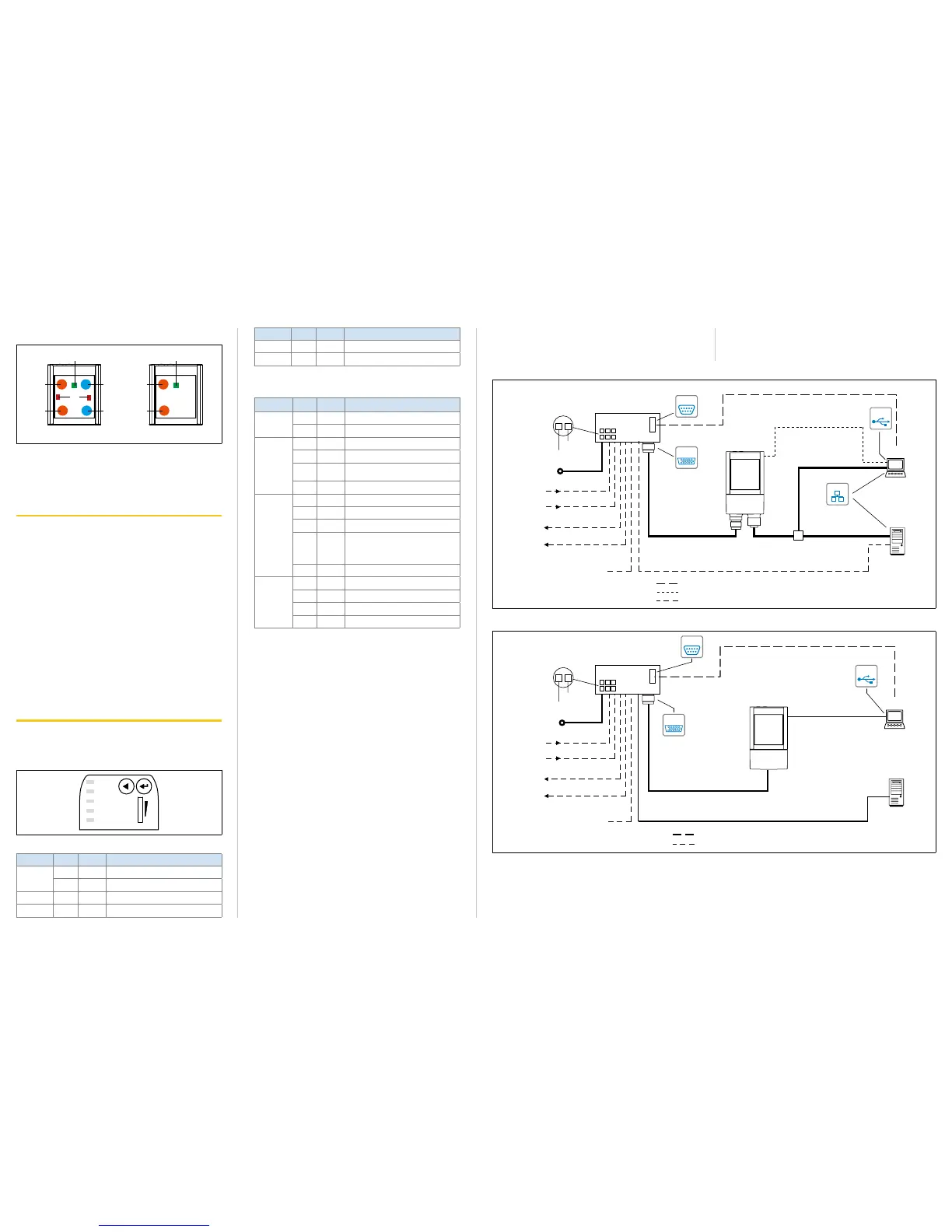

Status Indicators and Functions
Optical Status Indicators:
Ready
Read Diagn
Result
TeachIn
LED
Auto-Setup
Data
Autofocus
LNK TX
Userdefined
300
200
100
70
40
100
0
[mm]
[%]
O
O
O
O
O
Status Indicators on the First Display Level
Indicator LED Color Status
O
Green Device ready to read
O
Red Hardware error
O
Green Successful reading
LED
O
Green Lighting on (in read mode)
Indicator LED Color Status
O
Yellow Data output via host interface
Green
O = illuminated;
Status indicators on the Second Display Level
Indicator LED Color Status
O
Blue Read diagnosis selected
Blue Read diagnosis started
O
Blue Teach-in matchcode selected
Blue Teach-in matchcode started
O
Green
Teach-in matchcode successfully
completed
O
Red No code learned
O
Blue Auto-Setup selected
Blue Auto-Setup started
O
Green
O
Yellow
Auto-Setup partially successful
(in at least one of the 3 modules or
2 modules in the case of the
ECO variant)
O
Red Auto-Setup was unsuccessful
O
Blue Autofocus selected
Blue Autofocus started
O
Green Auto focus successfully completed
O
Red Autofocus was unsuccessful
O = illuminated;
Audible Status Indicator (Beeper):
Signals a selectable event (default: Good Read).
User operations are accompanied by a series of sounds.
Can be disabled.
Functions:
Read Diagn
Percentage analysis: The Lector
®
620 records a series of
images and uses the current reading performance settings
to decode them. The read rate of the last 10 attempts is
displayed in % above the bar display.
TeachIn
When you teach in a matchcode, the Lector
®
620 reads the
code that is presented (not applicable to Pharmacode and
OCR) and saves it permanently (in accordance with the
default setting) as a target code for future code comparisons
during read mode.
Auto-Setup
The Lector
®
620 adjusts itself automatically to the lighting
conditions and quality presented code (not applicable
to Pharmacode and OCR). The Professional, High Speed,
DPM Plus and OCR variants also adjust to the working
distance. The device permanently stores the calculated
values (default).
Overview of all Interfaces and Connection Options
“Ethernet”
(HOST 2, reading result,
image transfer)
To Next Page
