SIDESHIFT INSTALLATION GUIDE V1.9

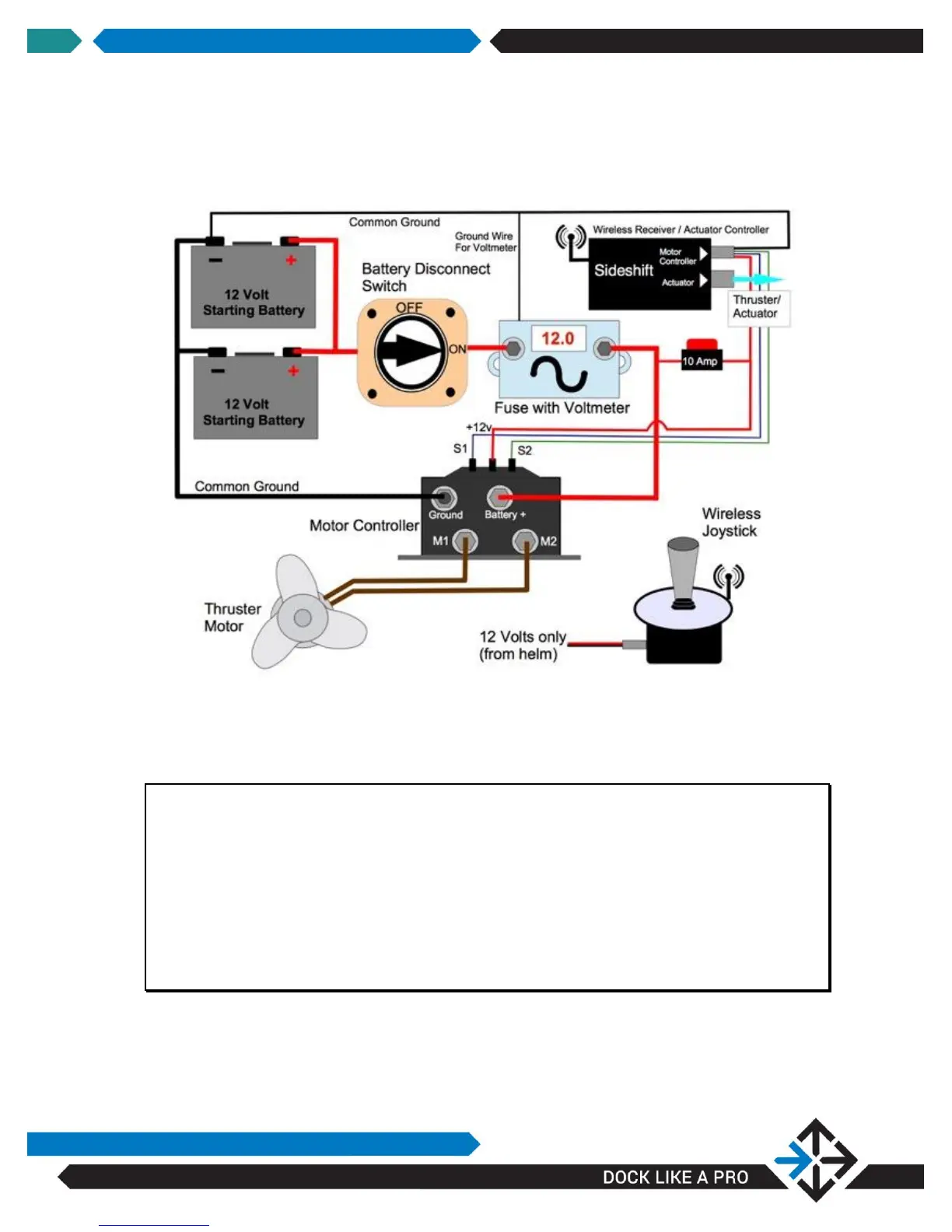

Schematic – HB340 12V System
Due to the high current draw, Sideshift thrusters must be supplied with dedicated
12v starter-type batteries for each thruster.
WARNING: High currents can result in reduced voltage supply to the thruster if
improper cable, connectors and/or assembly procedures are used.
This can result in poor performance or damage to the thruster
motor.
WARNING: Ensure the dedicated thruster batteries are fully charged and load
tested. Low battery voltage can result in erratic actuator
performance(actuator arm will not extend or retract properly) and
poor thruster performance or damage to the thruster motor.
