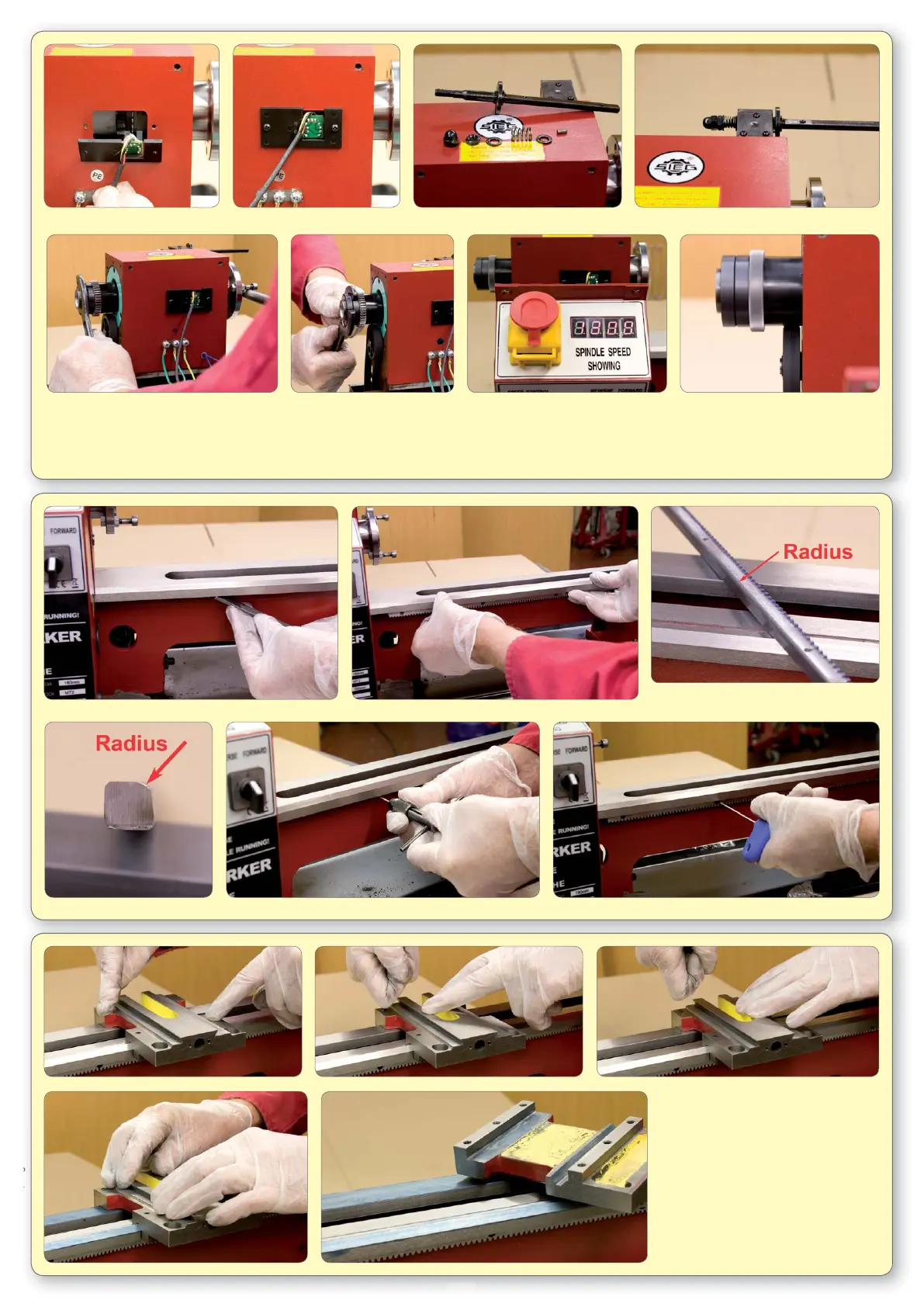

79. Check the speed encoder disk aligns with the pick-up and fi t. 80. Refi t the chuck guard assembly.
81. Adjust the bearings for “slight drag” and pinch up the C nuts for the moment. Following the Start Up Procedure on page 18, run the spindle to warm
it up and settle the grease. Check and adjust the preload again. Lock the C nuts when the preload appears to be OK. Take care not to overdo the
preload as this could overheat and damage the bearings.
82. Check the drive belt is running on the centre of the pulley. If not, then adjust the motor’s lateral position with the motor pivot screws.
83. Check the drive belt tension again.
- 1
89. Place the saddle on the bed and
check to see how it sits.
90. If it rocks, blue the bed and slide
the saddle up and down to fi nd the high
spots.
91. Scrape, fi le or stone down the high
spots until the saddle sits fl at on the bed.
87. Drill and tap the fi xing holes deeper if necessary. 88. Final fi t rack making sure it seats properly in the corner.
84. Scrape any paint off the bed shears.
86. If necessary, radius top rear edge of
the rack and trial fi t again.
85. Trial fi t rack to check if it seats or rocks.
