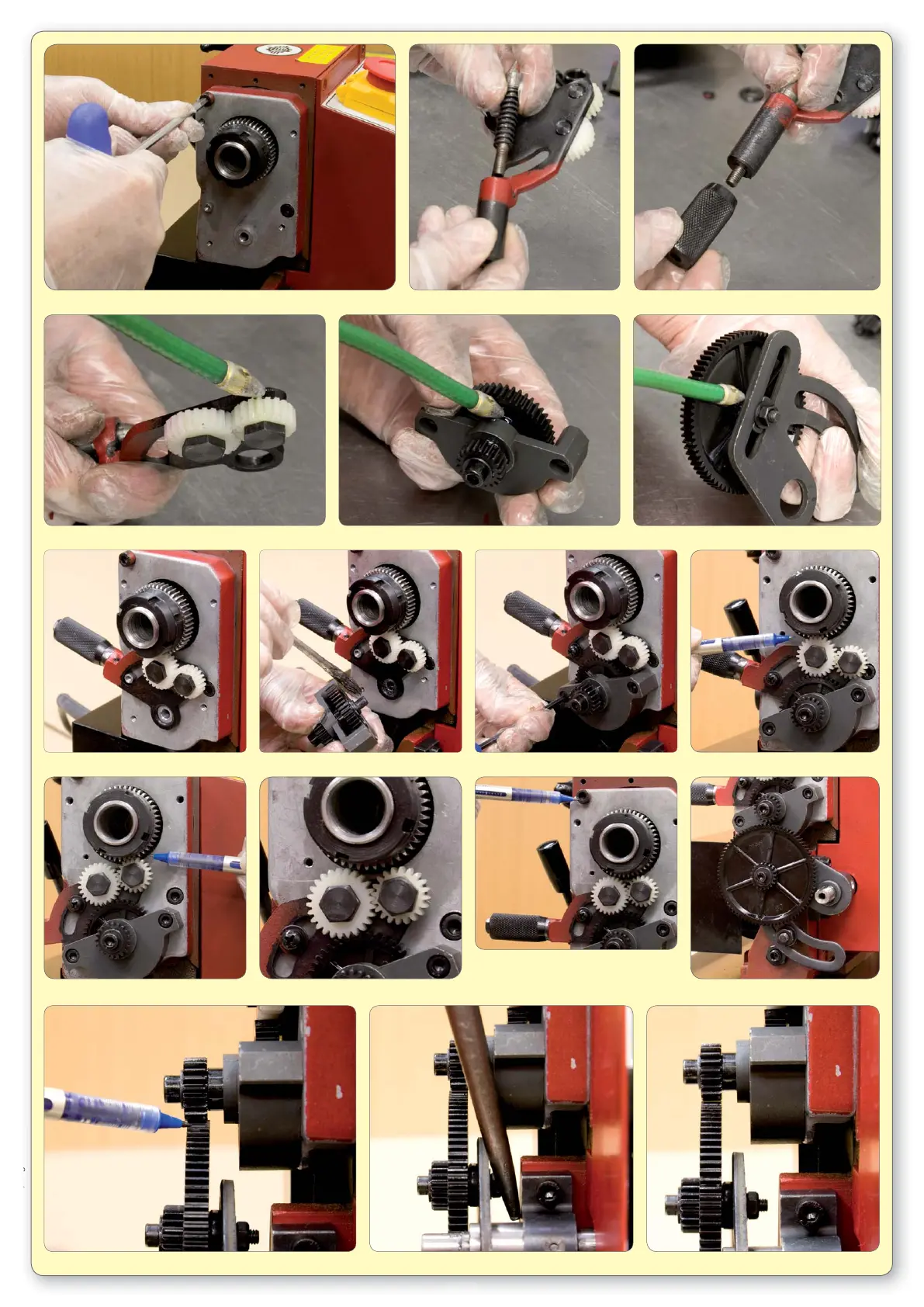

121. Refi t the belt cover.
123. Oil the tumbler reverse gear shafts.
126. Fit tumbler reverse mechanism.
... gears for backlash.
132. Check for correct gear alignment.
122. Strip, clean, oil / grease and reassemble the tumbler reverse detent assembly.
124. Oil gear shaft.
127. Grease the gear shaft and fi x the gear carrier to the cover.
129. Check neutral gear position.
133. “Tweak” the lower quadrant bracket until the gears are in proper alignment.
130. The mesh and neutral position
can be improved by adjusting
the position of the belt cover.
125. Oil the lower quadrant gear shaft.
128. Check forward and reverse...
131. Refi t lower gear quadrant.
