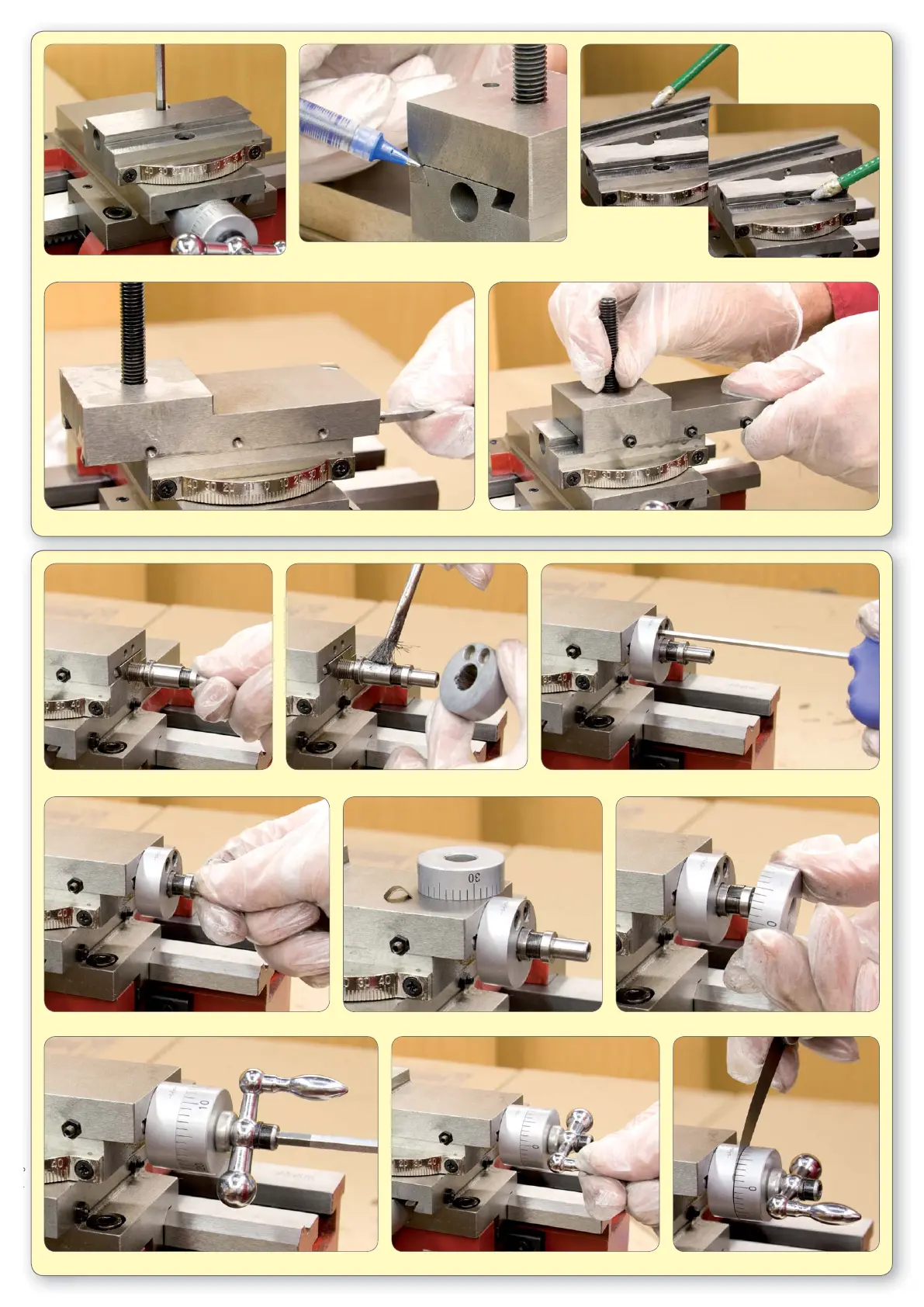

167. Temporarily fi t top slide to compound base
and check for clearance in corners of dovetail.
166. Fit compound base to cross slide.
168. Oil top slide assembly and fi t.
171. Oil / grease feed screw and fi t. Oil / grease end of feed screw and bracket and fi t.
172. Turn the feed screw to check it turns freely. 173. Assemble and fi t the micrometer dial and friction clip to feed screw.
174. Fit the spacer and handle and wind the slide back and forth.
169.
Fit gib strip and adjusting screws making sure they engage in the gib strip dimples.
170. Adjust the screws so the slide will move back and forth easily by hand.
175. Measure backlash with a feeler gauge.
