Sieg C3 - Compound Slide and Leadscrew Detachment

© Arc Euro Trade Ltd, England 2012
- 3 -

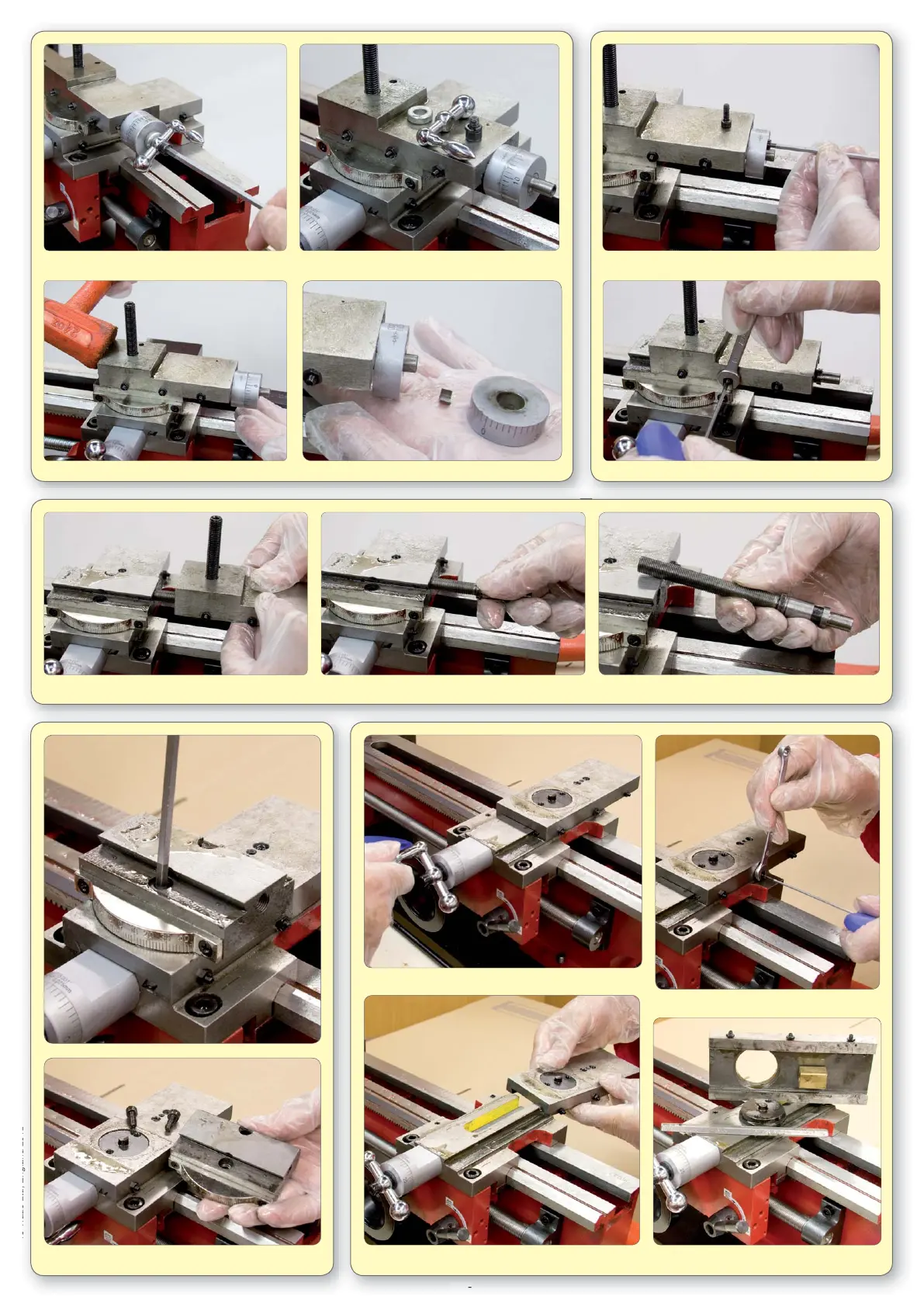

10. Remove compound slide and gib strip. 11. Unscrew the leadscrew from the compound slide base.
© A
c Eu
T
ro T
L
,
En
g
20
d 20
12
1
© Ar
© Ar
c Eu
c Eu
ro T
ro T
rade
rade
Ltd
Ltd
,En
, En
glan
glan
d20
d 20
12
12
12. Remove the compound slide base.
6. Remove the screw securing the compound slide handle. Remove handle and spacer.
7. Tap compound slide along with a soft mallet to remove micrometer dial and friction clip.
8. Remove the leadscrew end plate.
9. Slacken the gib adjusting screws.
- 3
-
13. Wind the cross slide off the lead screw.
14. Slacken the gib adjusting screws.
15. Pull off the cross slide assembly.
