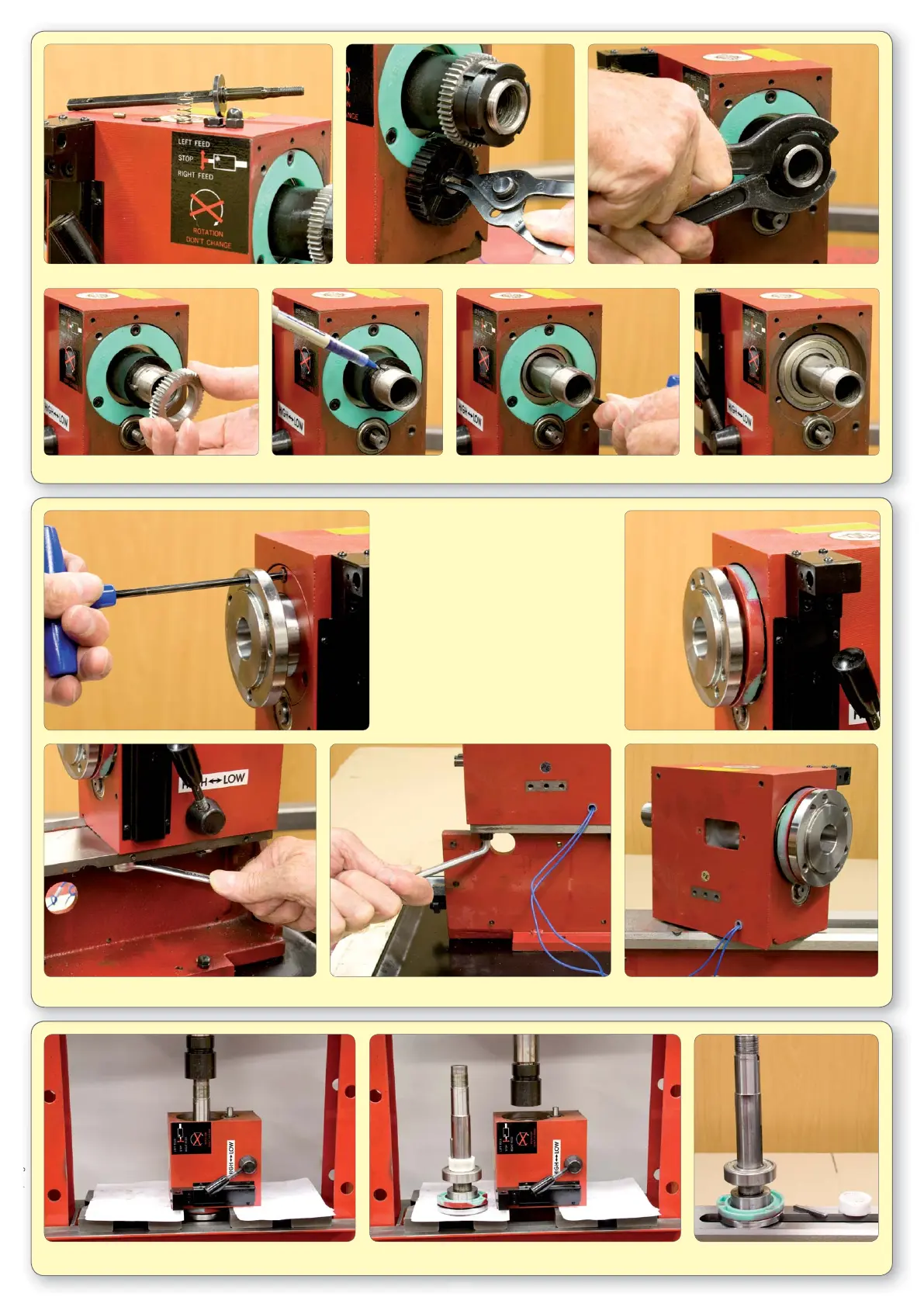

51. Press spindle out of head. 52. Remove spacer and key.
49. Using a hole in the spindle fl ange for
access to the 3 fi xing screws, remove the
front bearing cover.
50. Undo and remove the three screws fi xing the head casting to the bed and remove the head.
43. Remove the chuck guard carrier spindle etc. 44. Remove circlip & pull off drive pulley. 45.
Using two C spanners, unlock & remove spindle nuts.
46. Remove Spindle Gear. 47. Remove key and spacer. 48. Remove the spindle rear bearing cover.
