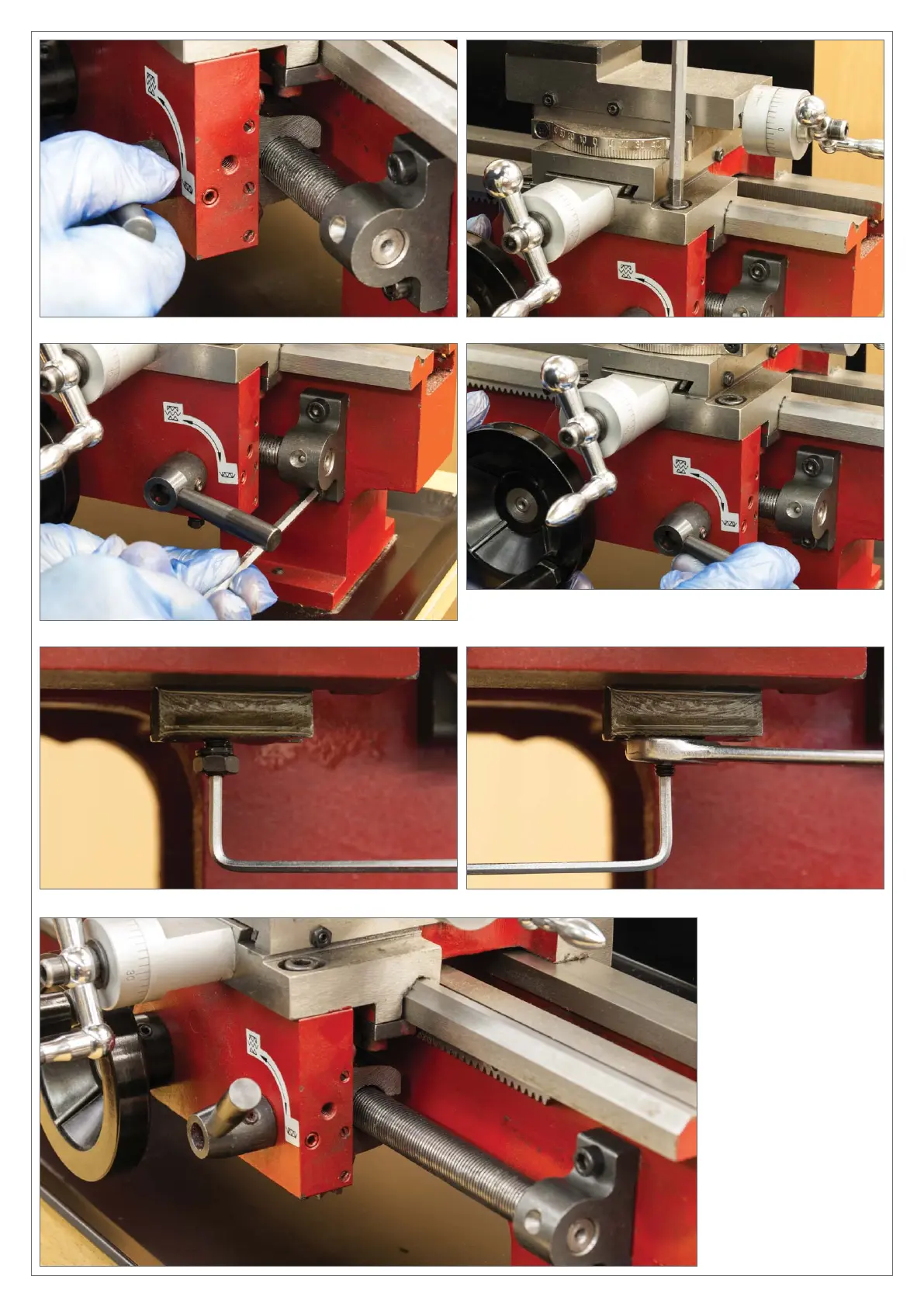

21. Lock the half nuts onto the leadscrew near the end of the bed.
23. Slacken and then pinch the leadscrew bracket screws.
22. Ensure the half nuts are seated before pinching the apron screws.
24. Check the bite of the half nuts and if necessary slacken and
re-pinch the apron screws. If everything is correctly aligned, fi nally
tighten the apron screws and the leadscrew bracket screws.
24. Lightly tighten the lower half nut adjusting screw and then back-off ¼ turn. Lock the adjusting screw with the lock nut.
25. Work the half nut operating
handle a few times and rack
the saddle up and down the
bed to fi nally check everything
is working smoothly.
The End
