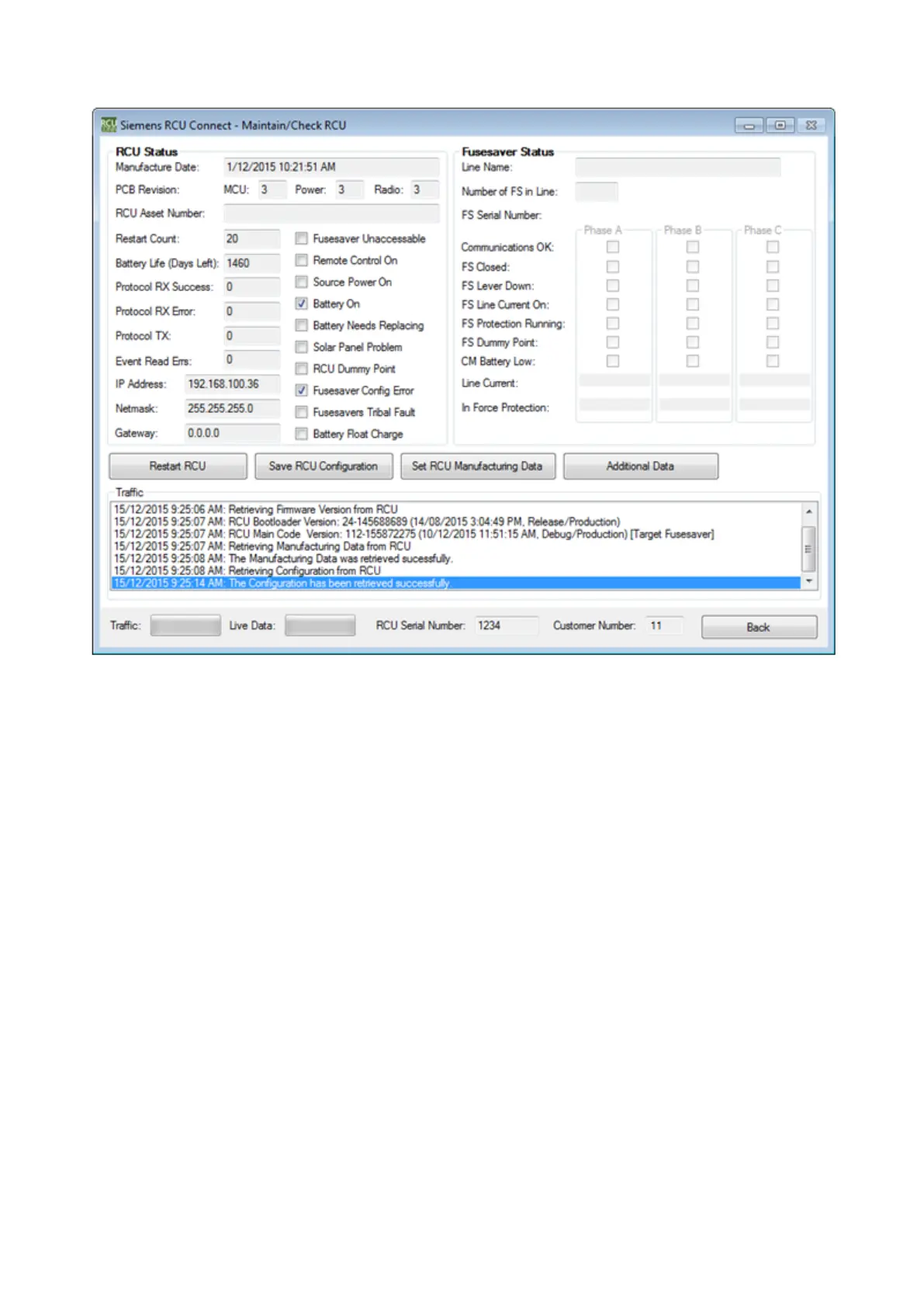

Fig. 47 RCU Connect – Maintain/Check Window
for Fusesaver Installations.
When the configuration and connection is working correctly, the user will see something similar to
figure 48. Under Fusesaver Status, the Line Name, number of Fusesavers in the line and serial
number of each Fusesaver can be seen, as well as the individual Fusesaver status for each device.
In the example shown in figure 48, the Fusesaver line has line current, the devices are all closed,
communications is OK, protection is running, and the protection mode is normal.
