2
In der Verpackungseinheit der Baugrößen III, 4-polig und
IV, 3-polig existiert kein komplett montierter Hilfsschalterblock.
Die in der Verpackung lose angelieferten Verpackungsteile Pos.
2.1, 2.2 und 2.3 müssen im Gegensatz zu den Hilfsschalterblök-
ken für die Baugrößen I-III, 3-polig und Baugrößen I, II, 4-polig
getrennt am Leistungsschalter montiert werden.
1
2.1
X4
10
8
9
7
6
5
4
3
2
2.3 2.2
-X1
(203)
1
2345678
-S4
-S5
3
(202)
(201)
(200)
(207)
(206)
(205)
(204)
311
4
422
-X4
(209)
1
2345678
-S1
-S2
3
(210)
(211)
(212)
(213)
(214)
(215)
(216)
311
4
422

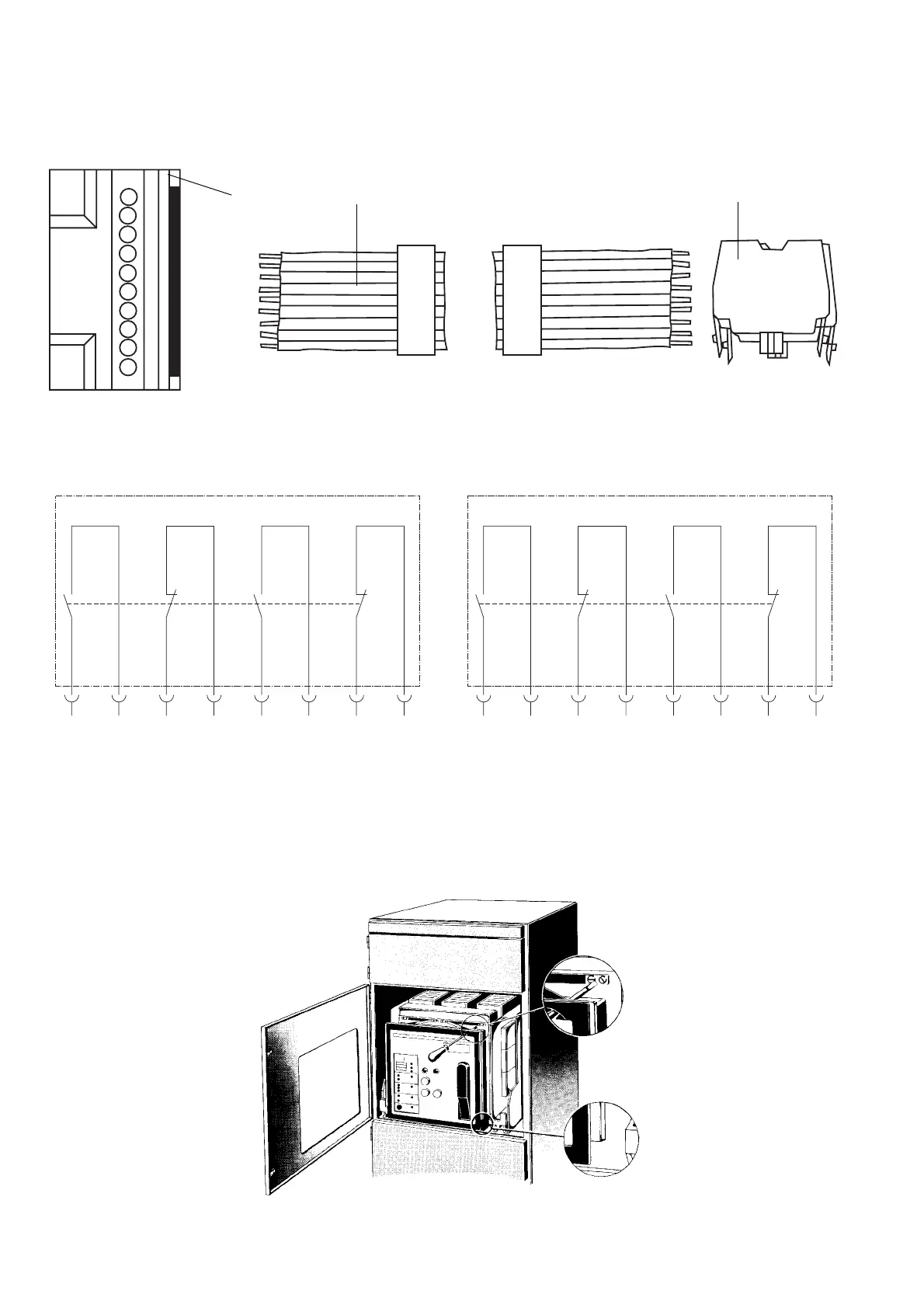

Fig. 2 Verdrahtungselemente für Baugröße
IIIIII
IIIIII
III, 4-polig und Baugröße
IVIV
IVIV
IV, 3-polig
Wiring elements for size
IIIIII
IIIIII
III (4-pole) and size
IVIV
IVIV
IV (3-pole)
Übersichtsplan 1. und 2. Hilfsschalterblock
Block diagram 1st and 2nd auxiliary switch block
Fig. 3a 1. Hilfsschalterblock/1st auxiliary switch block Fig. 3b 2. Hilfsschalterblock/2nd auxiliary switch block
1 Vorarbeiten
1.1 Türdichtungsrahmen ausbauen. (gültig nur für Schalter
mit Liefertermin bis 07.92)
- 8 Befestigungsschrauben des Türdichtungsrahmens lösen
1 Preparatory work
1.1 Removing the door sealing frame (applies only to breakers
supplied up to July 1992).
- Undo the 8 fixing screws of the door sealing frame
Fig. 4 Türdichtungsrahmen ausbauen/
Removing the door sealing frame
The packing unit for size III 4-pole and size IV 3-pole does not
include a completely assembled auxiliary switch block. The
wiring parts (2.1, 2.2 and 2.3) supplied loose in the packing
must, unlike the auxiliary switch blocks for sizes I-III (3-pole)
and sizes I, II, (4-pole), be fitted separately to the circuit
breaker.
