Installation
English 8
(when the appliance is to be connected by means of a cord kit, use 4-conductor
cord for this purpose)
Use only cord kits rated 125/250 volts (minimum), 50 amperes and labeled “For
Use with Ranges”. Strain relief provided with cord must be installed per instruc-
tions included with cord.
Four Wire Range Cord Connection
(Recommended Method)
1. Disconnect electrical power at breaker box.
2. Remove the terminal block cover to expose the terminal block
4. Remove TOP nut, star washer, and round washer from each post.
Note:
DO NOT remove last round washer, last nut or internal wiring leads.
5. Remove screw from bottom end of ground strap.

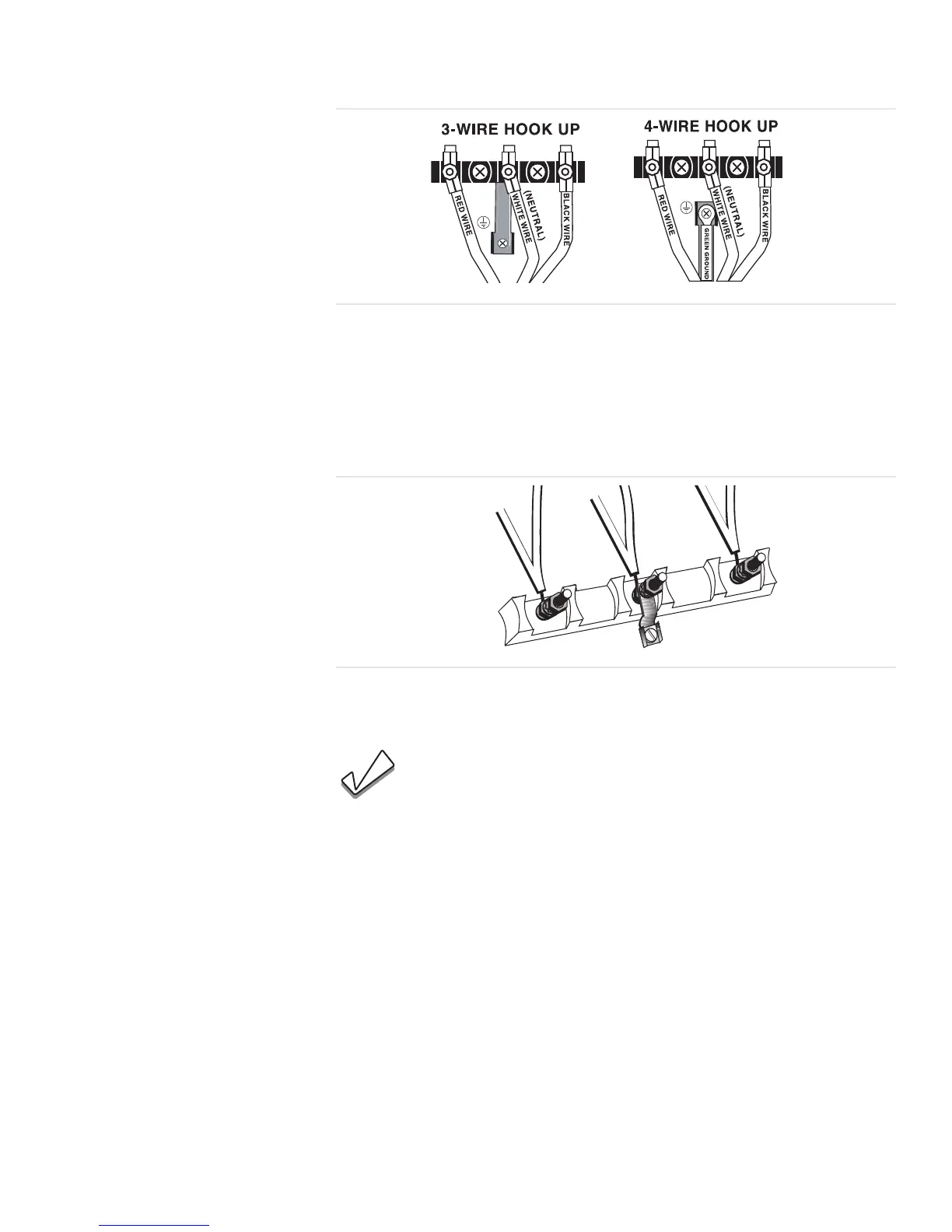

Figure 5: Grounding Options
Figure 3: Four Wire Connection
