Installation
English 10
2. Remove the terminal block cover to expose the terminal block.
4. Remove TOP nut, star washer, and round washer from each post.
Note:
DO NOT remove last round washer, last nut or internal wiring leads.
5. Attach WHITE wire, round washer, star washer and nut IN THIS ORDER on
TOP of ground strap on CENTER post.
6. Attach RED wire, round washer, star washer and nut IN THIS ORDER to
LEFT post.
7. Attach BLACK wire, round washer, star washer and nut IN THIS ORDER to
RIGHT post.
9. Tighten all connections securely and replace terminal block cover.
11. Properly secure strain relief. See “Install Strain Relief” on page 6.

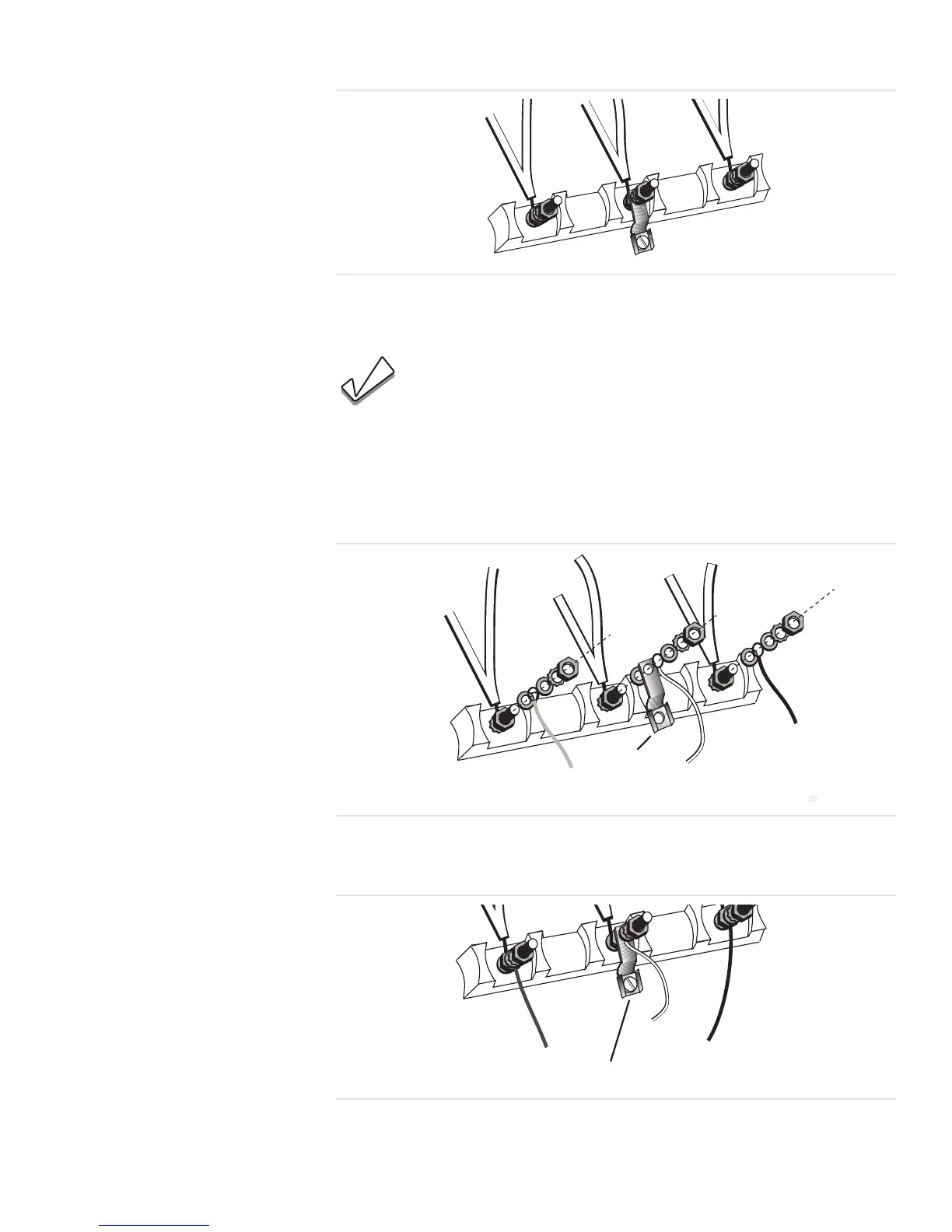

Figure 3: Terminal Block
Figure 8: Three Wire Connection
Figure 10: Completed Three Wire Range Cord Connection
red
white
black
ground strap
green ground screw
To Next Page
