Installation
English 13
8. Insert stripped end of WHITE wire into the CENTER lug on TOP of the ground
strap. Secure the clamping screw.
10. Insert stripped end of RED wire into the LEFT lug. Secure clamping screw.
11. Insert stripped end of BLACK wire into the RIGHT lug. Secure clamping
screw.
12. Tighten each clamping screw with the appropriate torque. See Table 3.
13. Properly secure flexible conduit at knockout panel on range and at supply
side junction box. The wiring is now complete.
Note:
DO NOT plug in range at this time.
Anti-tip Bracket
Attach anti-tip bracket to floor WARNING
RANGE TIPPING HAZARD
All ranges can tip and injury could result. To prevent accidental tipping
of the range, attach it to the floor by installing the Anti-Tip Device sup-
plied.

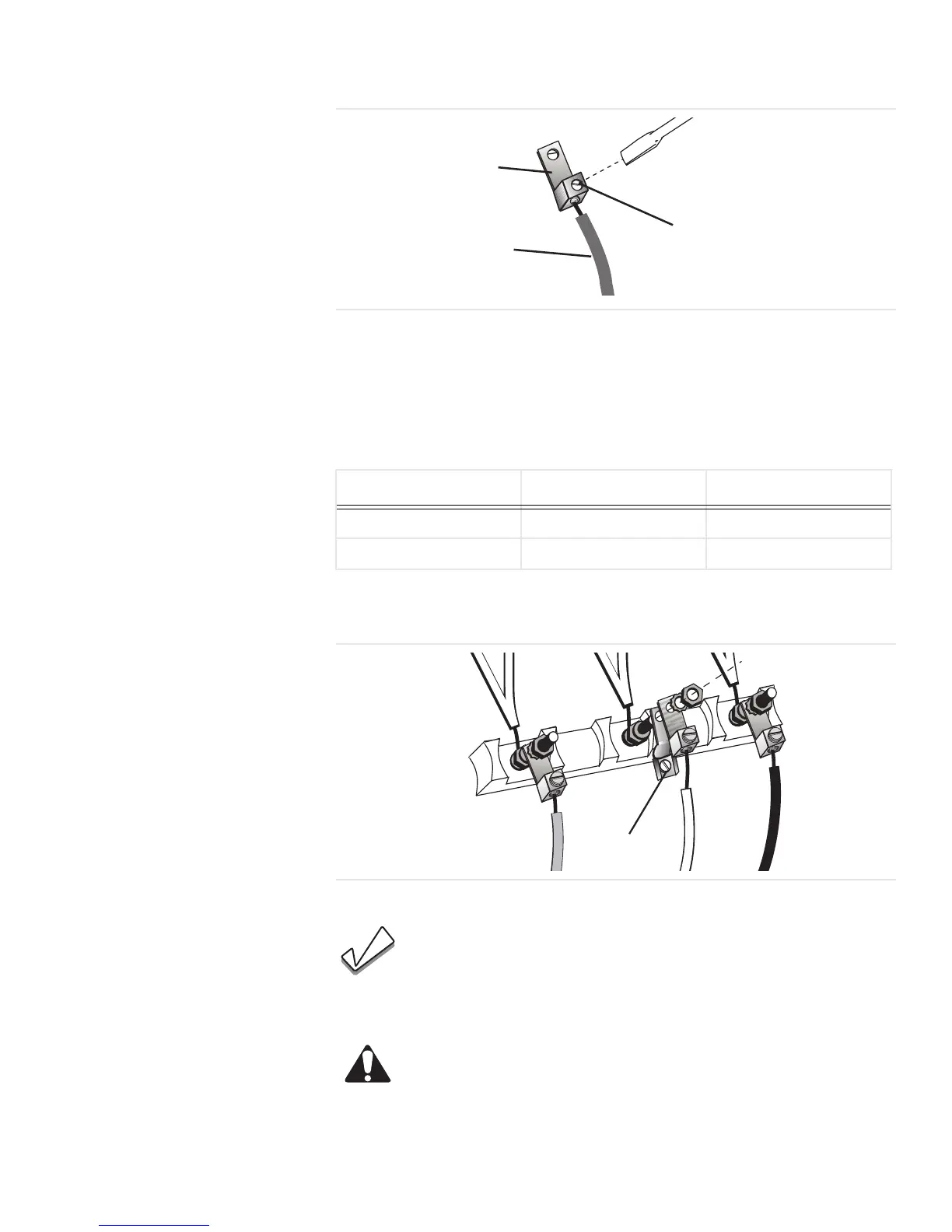

Figure 9: Attaching Wire to Terminal Lug
Table 3: Appropriate Torque Levels for Aluminum or Copper Wire
Gauge Torque (in./lbs.) Torque (Nm)
6353.95
8252.82
Figure 14: Completed Three Wire Flexible Conduit Connection
lug
clamping screw
wire
green ground screw
