3. Install the ground strap on both the inner and outer doors. (Refer to Figure 9.)
4. Close the outer door and secure with the key latch.

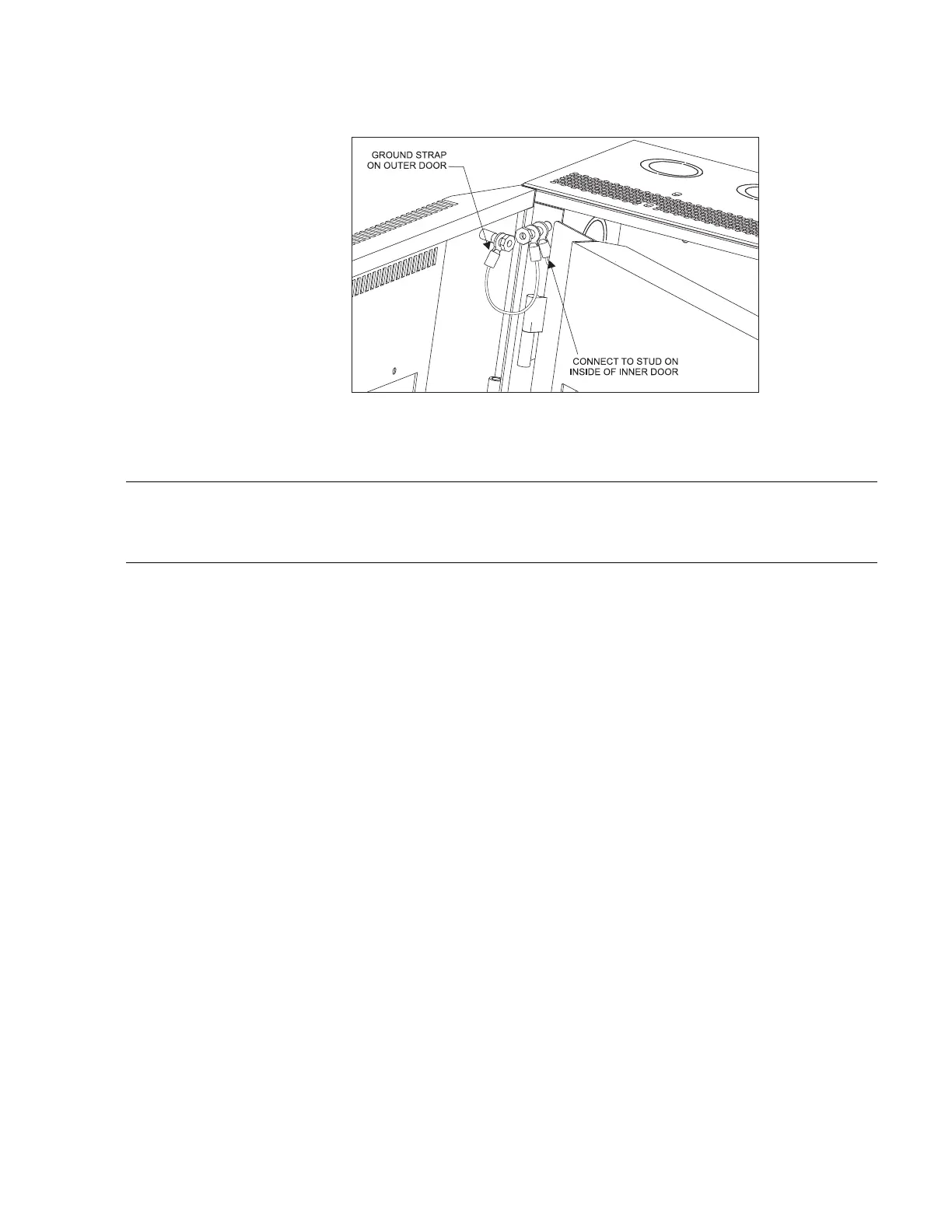

Figure 9
Installing The 12 AWG Ground Straps On The Inner And Outer Doors
COMPATIBILITY CAB2-BD/-RD inner and outer doors can be used with CAB2-BB/-RB backboxes only.
CAB3-BD/-RD inner and outer doors can be used with CAB3-BB/-RB backboxes only.
SPECIFICATIONS CAB2-BD/RD: 26-
1
/8”W x 1-
1
/4”D x 44-
3
/4”L
CAB3-BD/RD: 26-
1
/8”W x 1-
1
/4”D x 62-
1
/2”L
