Siemens CAB2-BD/-RD - Installation Guide; Outer Door Hinge and Lock Reversal

Siemens Industry, Inc.
Building Technologies Division
P/N 315-033008-82
INSTALLATION Outer door hinge and lock reversal (if required):
1. Note the location of the two rubber bumpers on the right side of the
backbox, then remove them.
2. Remove the upper door hinge, turn the hinge upside down, and install on
the right side of the backbox. (Refer to Figure 2.)
OUTER
DOOR
HINGE
3. Repeat the above procedure for the lower door hinge.

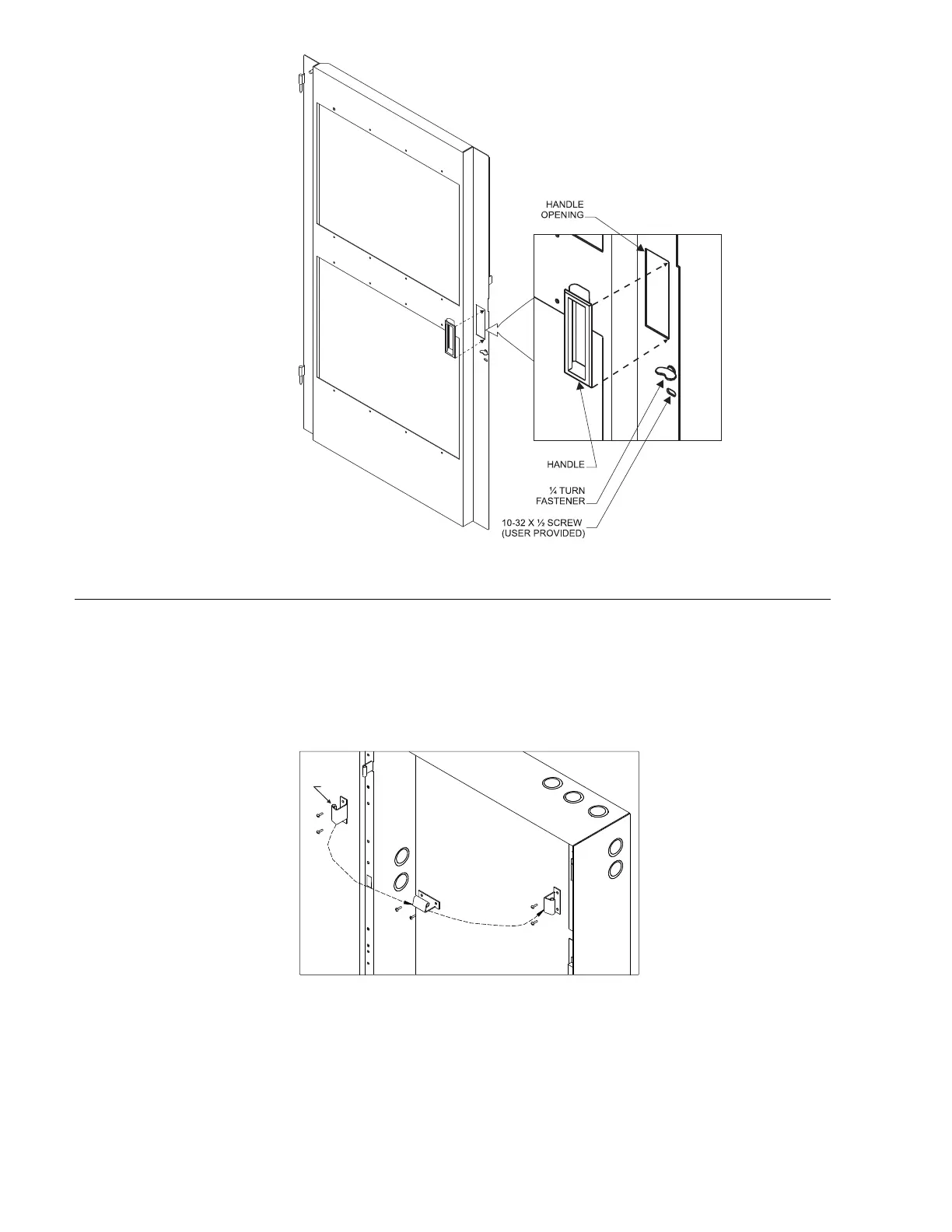

Figure 1
Inserting Handle Into Opening In Inner Door
Figure 2
Outer Door Hinge Revesal
