4. On the right side of the outer door, remove the ground strap. Reinstall the
ground strap on the left side of the outer door. (Refer to Figure 5, page 4.)
5. Install the rubber bumpers on the left side of the backbox. (Refer to Figure 3.)
6. On the right side of the backbox, remove the lock bracket. Reinstall the lock
bracket on the left side of the backbox. (Refer to Figure 3.)
RUBBER
BUMPER
LOCK
BRACKET
7. Remove the plug(s) for the lock(s) on the left side of the door. On the right
side of the door, remove the lock(s). Reinstall the lock(s) on the left side of
the door. Reinstall the plug(s) on the right side of the door.
LOCK
CAB
DOOR
PLUG
FOR
LOCK

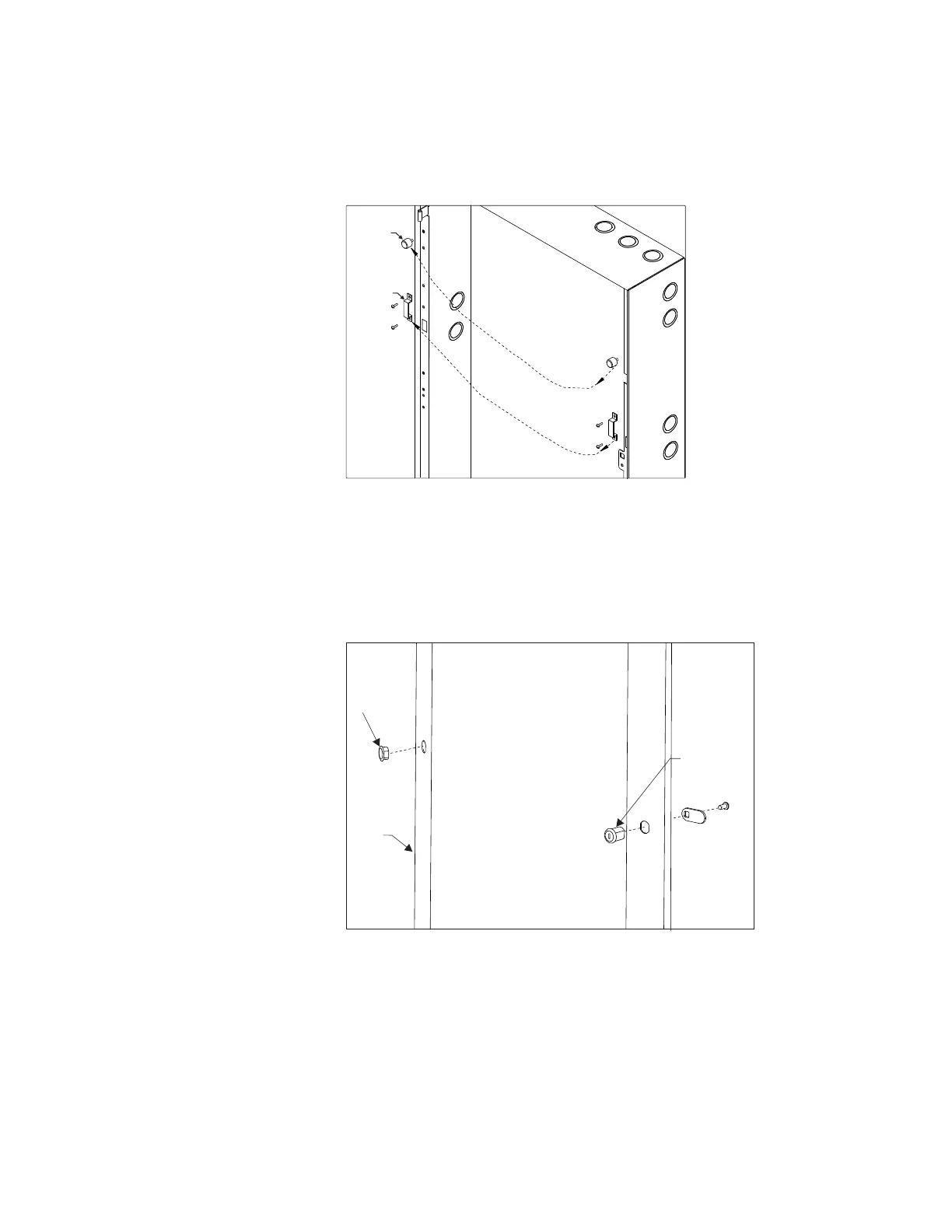

Figure 4
Moving The Door Lock(s) And Plug(s)
Figure 3
Lock Bracket And Rubber Bumper Reversal
