CP-8000 Master Module with I/O

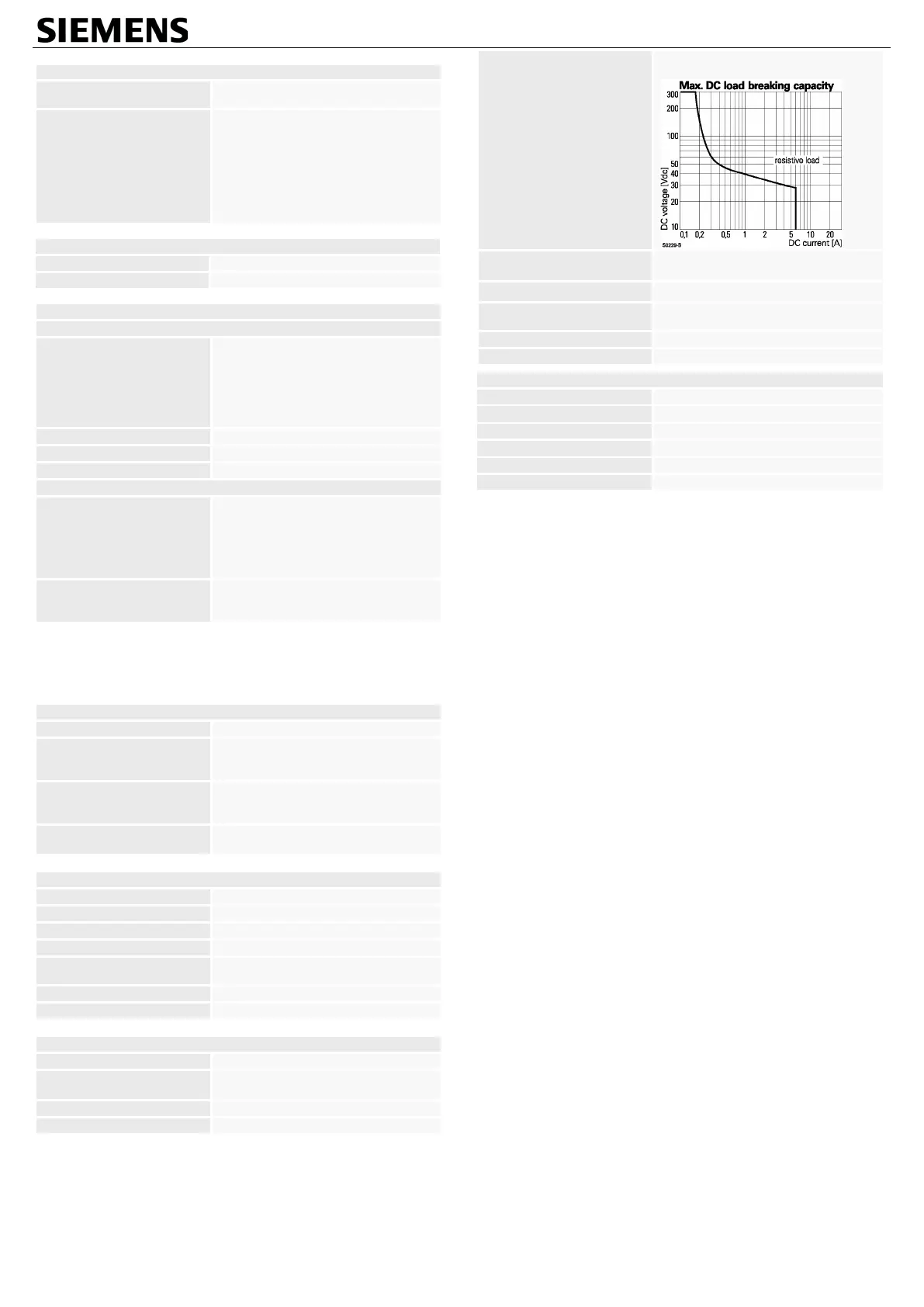

CP-8000 Product Information
C53207-A520-C6-5A-7483 / DC8-002-2.04; Edition 03.2017 4
Technical Data
Power Consumption Total System
Basic System without External
Consumer
4,3 W
System with External Consumers
If a basic system is expanded with external
consumers (modem, I/O modules) then you have
to add their power consumption to that of the
basic system.
Please note, that the power consumption values
of the external consumers must be adjusted
because of the efficiency factor of the internal
power supply PS-8630 (typical 80 %; sub-zero
temperature 77 %).
Mechanics and connectors
Protection type acc. IEC 60529
IP 20 / IP 40 Housing front
Protection class acc. IEC 61140 2
Power Supply (PS-8630)
DC voltage input
Input voltage DC 24 to 60 V + 15 % / - 25 % *)
+ 30 % / - 25 % **)
*) caused by the connection between input
voltage and AUX V0 the input voltage must be
< DC 70 V
**) the reliable function of the power supply is
guaranteed up to DC 78 V
Input power 34 W
Protection type double insulation
Rated impulse voltage
4 kV (category III / AC 230 V)
System voltage outputs
Output voltages
System internal
System external
External I/Os
Contact wetting
DC 5,2 V ± 3 % 2,5 W
DC 12 V + 30 / - 5 % 3 W
DC 5,2 V
1)
± 3 % 2,5 W
equals input voltage 3x each 100 mA
2)
Modem supply (via X2) de-energized (for modem reset)
DC 5,2 V ± 5 % 2,5 W
DC 12 V ± 5 % 2,5 W
1)
not short-circuit proof and not overload proof
2)
Protective mechanism is a self resetting fuse (PTC)
Parameter: Operation voltage: DC 60 Vmax
Switching capacity: < 40 A
Ohmic resistance: < 5 Ohm
Permanent floating current after activation of the fuse: < 1,3 A
Communication interfaces
Rated impulse voltage
2 kV
Ethernet/LAN X1, X4
- RJ45-connector 8-pole (IEC 60603-7)
- Auto-MDI(X)
- galvanically insulated
serial RS-232 X2 - D-SUB 9-pole, male (DIN 41652)
- not galvanically insulated
- Line length < 2.5 m (cabinet internal)
serial RS-485 X3 - Screw terminal 6-pole
- galvanically insulated
Binary inputs (DI-8100)
12 binary inputs
2 groups (with 8 and with 4 inputs)
Nominal voltages
DC 24/48/60 V
Max. operating voltage
DC 78 V
Rated current
0,6 to 1,5 mA (at DC 18 to 78 V)
Dynamic suppression of noise
caused by cable capacitance
typ. 220 nF (for DC 18 to 78 V)
Terminals
Removable screw terminals (grid size 5.08)
Rated impulse voltage
4 kV (category III / AC 230 V)
Binary outputs (DO-8203)
8 binary outputs (relay)
4 groups with 2 outputs each
Nominal voltage DC 24/48/60/110/220 V
AC 110/230 V
Maximum continuous current
3 A (5 A/1 min)
Circuitry with derating
see document: SICAM I/O Modules
Switching capacity - DC voltage
min. 50 mW at DC 5 V
max. acc. to diagram
Switching capacity - AC voltage
max. 1250 VA; 5 A / AC 250 V, resistive load
max. 500 VA; 2 A / AC 250 V, cos
ϕ
= 0.4
Switching cycles
3x10
4
Output circuits Max. DC 250 V / AC 253 V (operated by means
of an external voltage)
Rated impulse voltage
4 kV (category III / AC 230 V)
Terminals
Removable screw terminals (grid size 5.08)
Climatic ambient conditions
Operation temperature - 40 to + 70 °C
Temperature gradient
≤
30 °C/h
Relative air humidity
5 to 95 % (condensation not permissible)
Air pressure
70 to 106 kPa (up to 3000 m)
Temperature for storage/transport
- 30 to + 85 °C
Pollution degree
2
