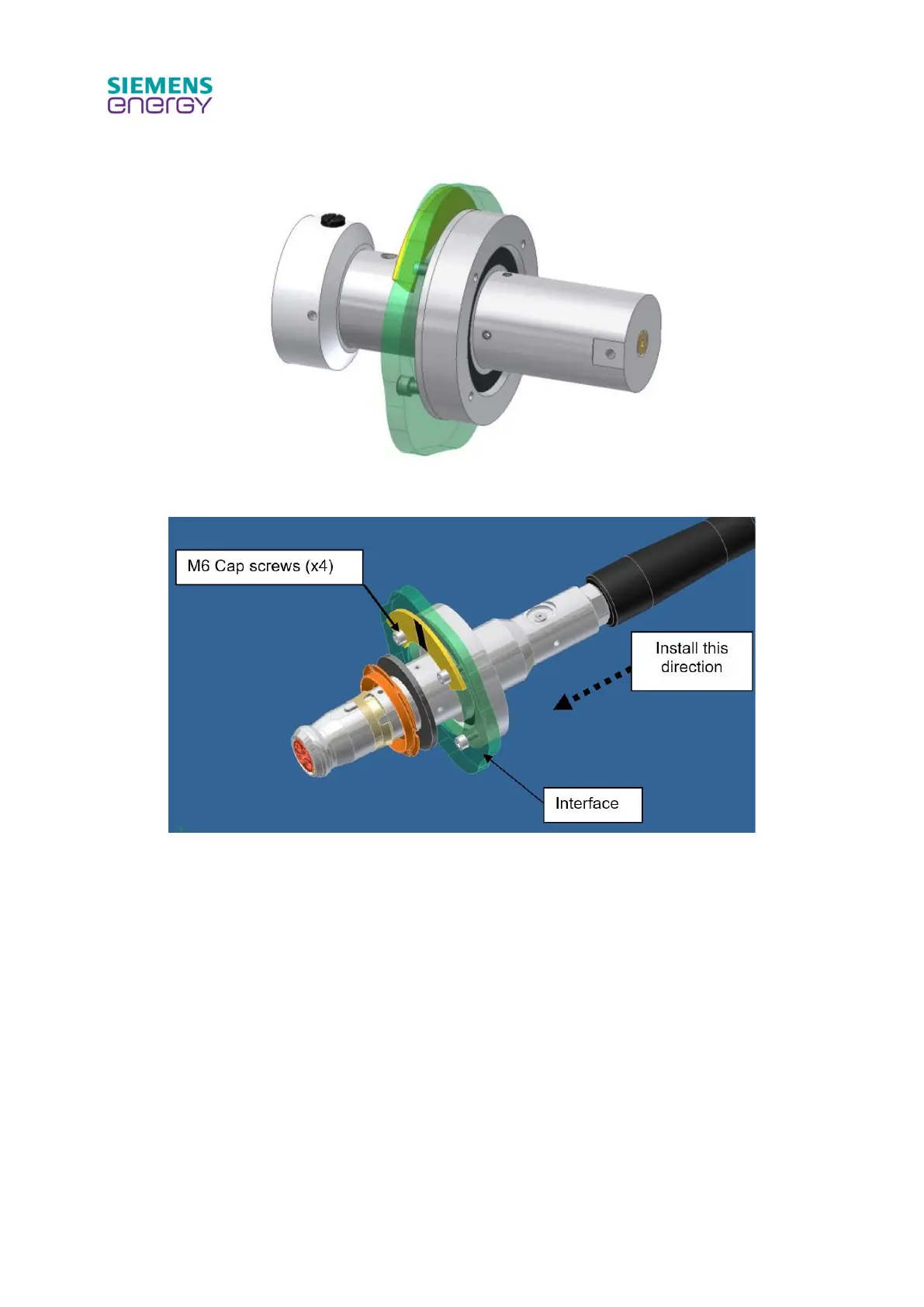

Figure 13 Typical compliant flange-mounted ROV connector
Figure 14 Installation of compliant flange-mount ROV plug
For mounting ROV receptacles (male pins) an extra ring is required, to keep the connector captive
in the event that the rubber mount is lost. This is supplied with the connector and should be fitted
along with the alignment disc, in the orientation shown in Figure 15 and Figure 16.
NOTE: The alignment cone on the receptacle may require removal in order to install the
connector, and re-fitting once installed. Ensure correct orientation to the internal key-way.
