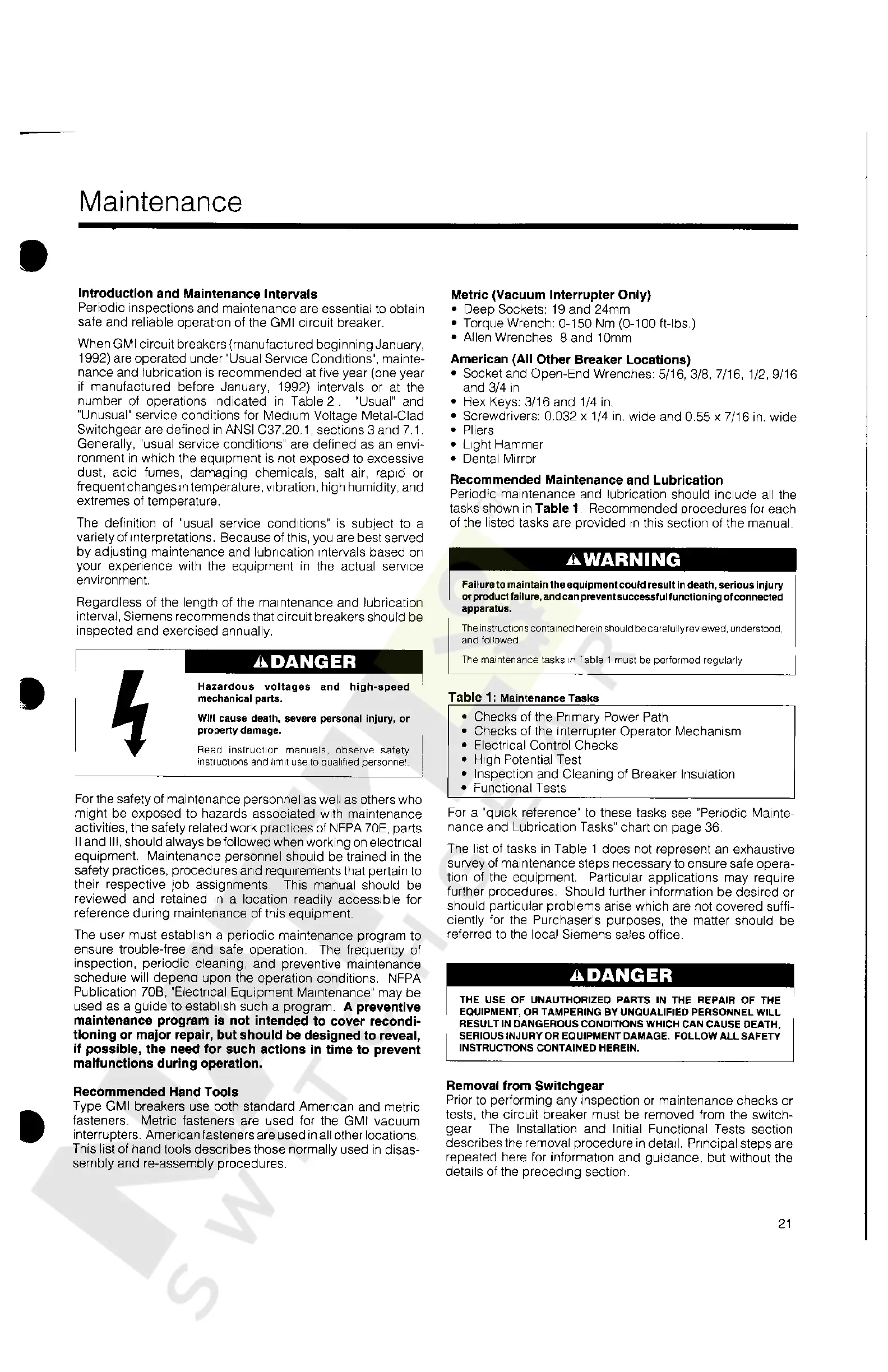

Maintenance
Introduction
and
Maintenance
Intervals
Periodic
inspections
and
maintenance
are
essential
to
obtain
safe
and
reliable
operation
of
the
GMI
circuit
breaker
.
When
GMI
circuit
breakers
{
manufactured
beginning
January
,
1992
)
are
operated
under
"
Usual
Service
Conditions
'
'
,
mainte
-
nance
and
lubrication
is
recommended
at
five
year
(
one
year
if
manufactured
before
January
,
1992
)
intervals
or
at
the
number
of
operations
indicated
in
Table
2
.
"
Usual
"
and
"
Unusual
"
service
conditions
for
Medium
Voltage
Metal
-
Clad
Switchgear
are
defined
in
ANSI
C
37.20
.
1
,
sections
3
and
7.1
.
Generally
,
"
usual
service
conditions
are
defined
as
an
envi
-
ronment
in
which
the
equipment
is
not
exposed
to
excessive
dust
,
acid
fumes
,
damaging
chemicals
,
salt
air
,
rapid
or
frequent
changes
in
temperature
,
vibration
,
high
humidity
,
and
extremes
of
temperature
.
The
definition
of
"
usual
service
conditions
"
is
subject
to
a
variety
of
interpretations
.
Because
of
this
,
you
are
best
served
by
adjusting
maintenance
and
lubrication
intervals
based
on
your
experience
with
the
equipment
in
the
actual
service
environment
.
Regardless
of
the
length
of
the
maintenance
and
lubrication
interval
,
Siemens
recommends
that
circuit
breakers
should
be
inspected
and
exercised
annually
.
Metric
(
Vacuum
Interrupter
Only
)
Deep
Sockets
:
19
and
24
mm
Torque
Wrench
:
0
-
150
Nm
{
0
-
100
ft
-
lbs
.
)
Allen
Wrenches
Sand
10
mm
American
(
All
Other
Breaker
Locations
)
Socket
and
Open
-
End
Wrenches
:
5
/
16
,
3
/
8
,
7
/
16
,
1
/
2
,
9
/
16
and
3
/
4
in
Hex
Keys
:
3
/
16
and
1
/
4
in
.
Screwdrivers
:
0.032
x
1
/
4
in
wide
and
0.55
x
7
/
16
in
.
wide
Pliers
Light
Hammer
Dental
Mirror
Recommended
Maintenance
and
Lubrication
Periodic
maintenance
and
lubrication
should
include
all
the
tasks
shown
in
Table
1
.
Recommended
procedures
for
each
of
the
listed
tasks
are
provided
in
this
section
of
the
manual
.
A
WARNING
Failure
to
maintain
the
equipment
coufd
result
in
death
,
serious
injury
or
product
failure
,
and
can
prevent
successful
functioning
of
connected
apparatus
.
Theinstx
ctions
contained
herein
should
be
carefully
reviewed
,
understood
,
and
followed
.
The
maintenance
tasks
in
Table
1
must
be
performed
regularly
ADANGER
h
Hazardous
voltages
and
high
-
speed
mechanical
parts
.
Will
cause
death
,
severe
personal
injury
,
or
property
damage
.
Read
instruction
manuals
,
observe
safety
instructions
and
limit
use
to
qualified
personnel
.
Table
1
:
Maintenance
Tasks
Checks
of
the
Primary
Power
Path
Checks
of
the
Interrupter
Operator
Mechanism
Electrical
Control
Checks
High
Potential
Test
Inspection
and
Cleaning
of
Breaker
Insulation
Functional
Tests
For
the
safety
of
maintenance
personnel
as
well
as
others
who
might
be
exposed
to
hazards
associated
with
maintenance
activities
,
the
safety
related
work
practices
of
NFPA
70
E
,
parts
11
and
III
,
should
always
be
followed
when
working
on
electrical
equipment
.
Maintenance
personnel
should
be
trained
in
the
safety
practices
,
procedures
and
requirements
that
pertain
to
their
respective
job
assignments
.
This
manual
should
be
reviewed
and
retained
in
a
location
readily
accessible
for
reference
during
maintenance
of
this
equipment
.
The
user
must
establish
a
periodic
maintenance
program
to
ensure
trouble
-
free
and
safe
operation
.
The
frequency
of
inspection
,
periodic
cleaning
,
and
preventive
maintenance
schedule
will
depend
upon
the
operation
conditions
.
NFPA
Publication
70
B
,
"
Electrical
Equipment
Maintenance
"
may
be
used
as
a
guide
to
establish
such
a
program
.
A
preventive
maintenance
program
is
not
intended
to
cover
recondi
-
tioning
or
major
repair
,
but
should
be
designed
to
reveal
,
if
possible
,
the
need
for
such
actions
in
time
to
prevent
malfunctions
during
operation
.
For
a
"
quick
reference
"
to
these
tasks
see
"
Periodic
Ma
.
nte
-
nance
and
Lubrication
Tasks
"
chart
on
page
36
.
The
list
of
tasks
in
Table
1
does
not
represent
an
exhaustive
survey
of
maintenance
steps
necessary
to
ensure
safe
opera
-
tion
of
the
equipment
.
Particular
applications
may
require
further
procedures
.
Should
further
information
be
desired
or
should
particular
problems
arise
which
are
not
covered
suffi
-
ciently
:
or
the
Purchaser
s
purposes
,
the
matter
should
be
referred
to
the
local
Siemens
sales
office
.
ADANGER
THE
USE
OF
UNAUTHORIZED
PARTS
IN
THE
REPAIR
OF
THE
EQUIPMENT
,
OR
TAMPERING
BY
UNQUALIFIED
PERSONNEL
WILL
RESULT
IN
DANGEROUS
CONDITIONS
WHICH
CAN
CAUSE
DEATH
,
SERIOUS
INJURY
OR
EQUIPMENT
DAMAGE
.
FOLLOW
ALL
SAFETY
INSTRUCTIONS
CONTAINED
HEREIN
.
Removal
from
Switchgear
Prior
to
performing
any
inspection
or
maintenance
checks
or
tests
,
the
circuit
breaker
must
be
removed
from
the
switch
-
gear
The
Installation
and
Initial
Functional
Tests
section
describes
the
removal
procedure
in
detail
.
Principal
steps
are
repeated
here
for
information
and
guidance
,
but
without
the
details
of
the
preceding
section
.
Recommended
Hand
Tools
Type
GMI
breakers
use
both
standard
American
and
metric
fasteners
.
Metric
fasteners
are
used
for
the
GMI
vacuum
interrupters
.
American
fasteners
are
used
in
all
other
locations
.
This
list
of
hand
tools
describes
those
normally
used
in
disas
-
sembly
and
re
-
assembly
procedures
.
21
