21
Installation and connection
This appliance is intended for domestic use only.
This appliance is only intended to be fully fitted in a kitchen.
Please observe the special installation instructions.
The appliance can be fitted in a 60 cm wide wall cabinet (min.
30 cm deep and 85 cm off the floor).
The appliance is fitted with a plug and must only be connected
to a properly-installed earthed socket. The fuse protection must
be rated at 10 amperes (L or B circuit breakers). The mains
voltage must correspond to the voltage specified on the rating
plate.
The socket must be installed and the power cable replaced by
a qualified electrician only. If the plug is no longer accessible
following installation, an all-pin disconnecting device must be
present on the installation side, with a contact gap of at least
3 mm.
Multiple plugs, plug bars and extension leads must not be
used. Overloading can result in a risk of fire.

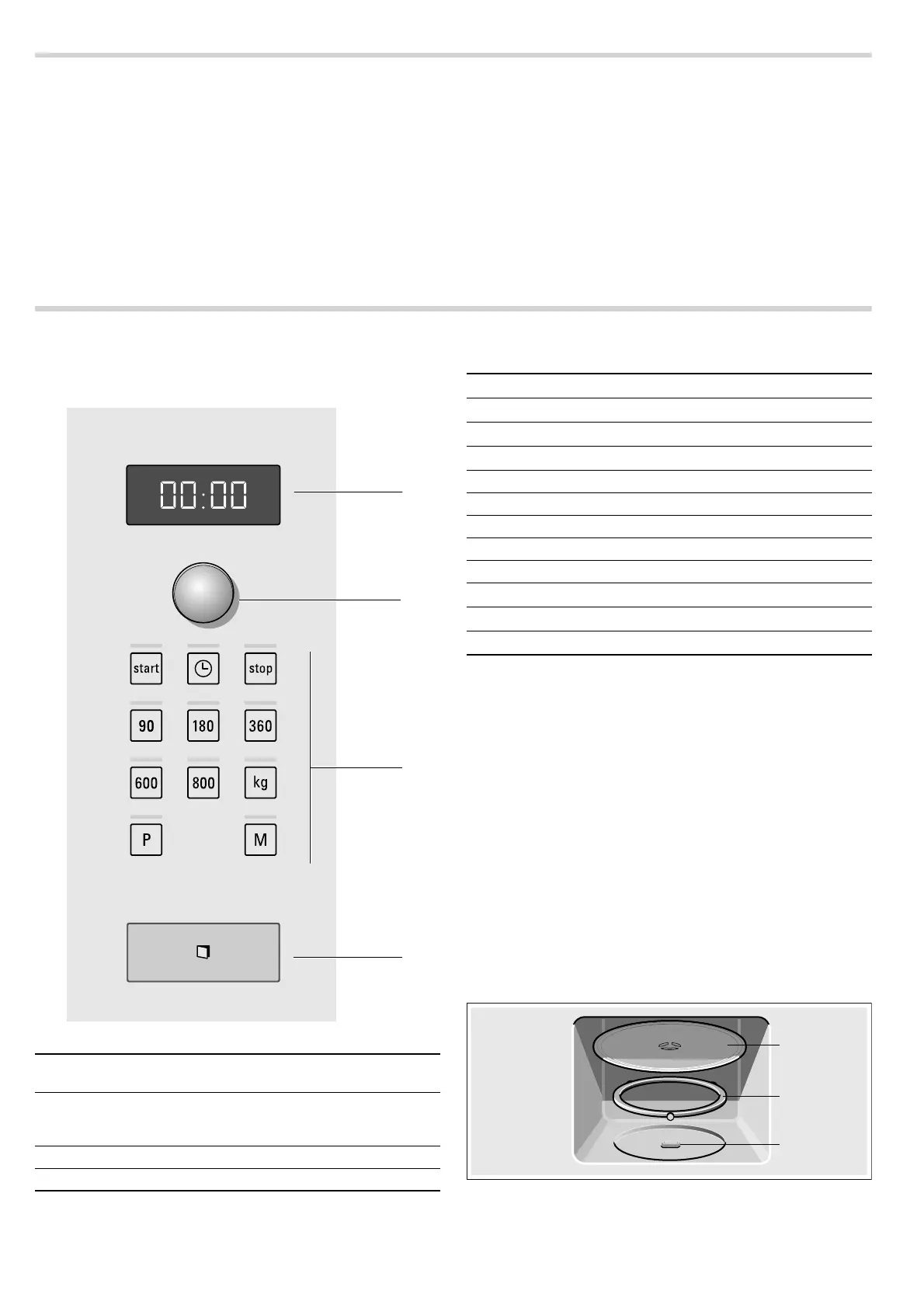

The control panel
Here, you will see an overview of the control panel. Depending
on the appliance model, individual details may differ.
Rotary selector
The rotary selector is used to alter the default values and set
values.
The rotary selector is retractable. Press on the rotary selector to
lock it in or out.
Accessories
Caution!
When removing dishes, make sure that the turntable does not
move. Make sure that the turntable is properly locked. The
turntable can turn left or right.
The turntable
How to fit the turntable:
1. Place the turntable ring a in the recess in the cooking
compartment.
2. Let the turntable b slot in place in the drive c in the centre of
the cooking compartment floor.
Note: Do not use the appliance if the turntable is not in place.
Ensure that it is properly slotted into place. The turntable can
turn clockwise or anti-clockwise.
1 Display
for clock and cooking time
2 Rotary selector
for setting the time and cooking time or for setting
automatic programmes
3 Buttons
4 Door opener
Buttons Use
¹
Starts operation
»
Sets the clock
º
Stops operation
90 Selects 90 watt microwave power
180 Selects 180 watt microwave power
360 Selects 360 watt microwave power
600 Selects 600 watt microwave power
800 Selects 800 watt microwave power
¼
Selects the kilogrammes for the programmes
X
Selects automatic programmes
l
Selects the memory
E
D
F
