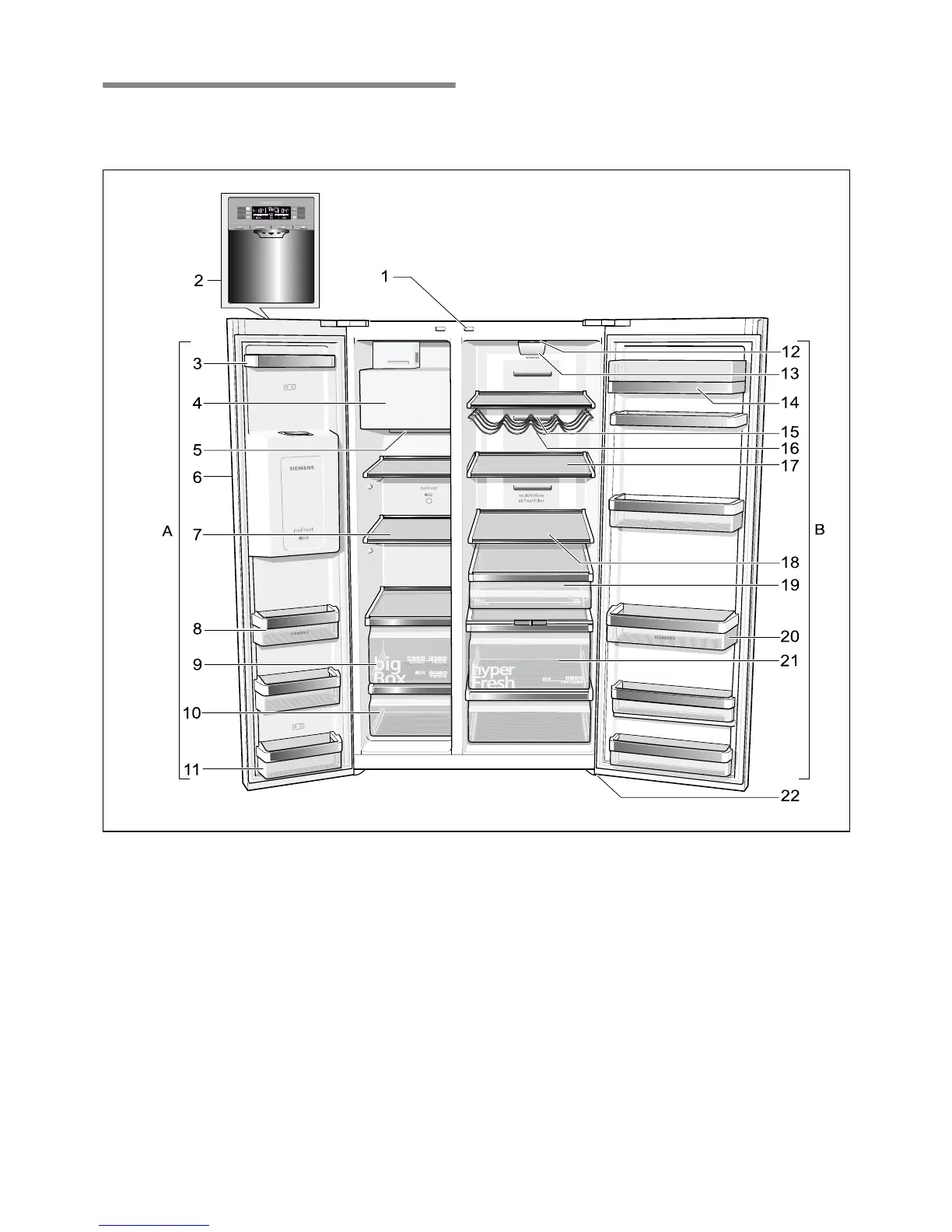

Getting to know your appliance
These operating instructions refer to several models.
The diagrams may differ.
* Not all models.
A Freezer compartment
B Refrigerator compartment
1 Light switch for refrigerator and freezer
compartments
2 Control and display panel
3 Door shelf
4 Ice maker/Ice cube container
5 Air outlet opening
6 Ice and water dispenser
7 Glass shelf in the freezer compartment
8 Door shelf
9 Freezer calendar
10 Frozen food container
11 Door shelf (2 star compartment) for short-term
storage of food and ice cream
12 Light
13 Particle filter/Water filter
14 Butter and cheese compartment
15 Air outlet opening
16 Bottle shelf *
17 Adjustable glass shelf
18 Glass shelf in the refrigerator compartment
19 “Cool-fresh” container
20 Shelf for large bottles
21 Vegetable container with humidity control
22 Height-adjustable feet
