Connection in Recirculation Version
All the items named in this procedure are
included in the recirculation kit. The correspond-
ing accessory numbers can be found at the end
of these operating instructions.

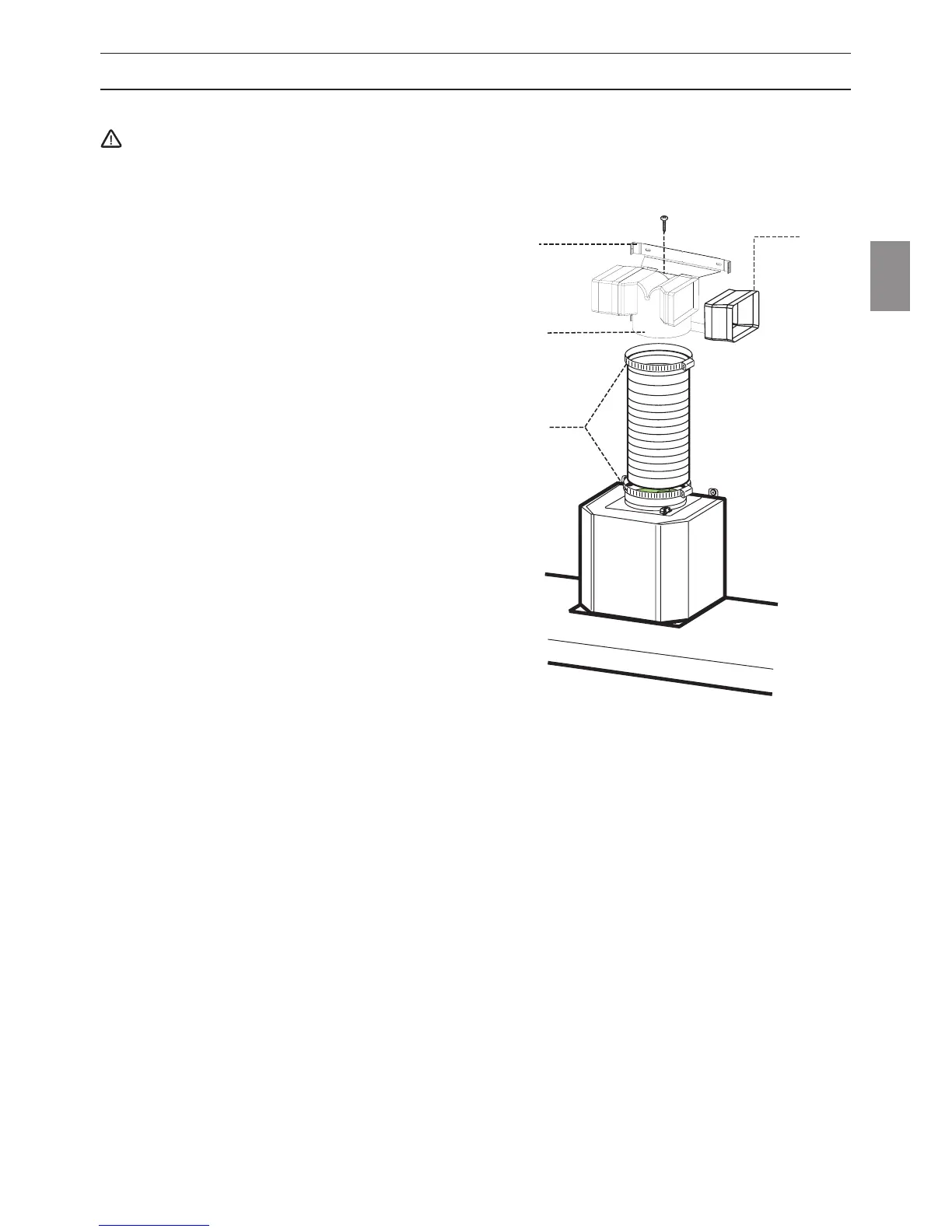

qPut connection 15 into the connection support
7.3, previously x with the upper bracket sup-
port chimne 7.2.1, and secure with a screw.
qInsert the connection extension pieces laterally
14.1 in connection 15.
qMake sure that the outlet of the extension
pieces 14.1 is horizontally and vertically aligned
with the chimney outlets.
qConnect the air outlet connection 15 to the
hood body outlet using either a pipe ø 150 mm.
qUse the jubilee clips 25 to ensure a x connec-
tion between pipe and hood outlet and between
pipe and connection (15).
qEnsure that the activated charcoal lters have
been inserted.(see parag. “Activated carbon
lter” in Filters and Maintenance chapter)
