Installation instructions en
15
3.

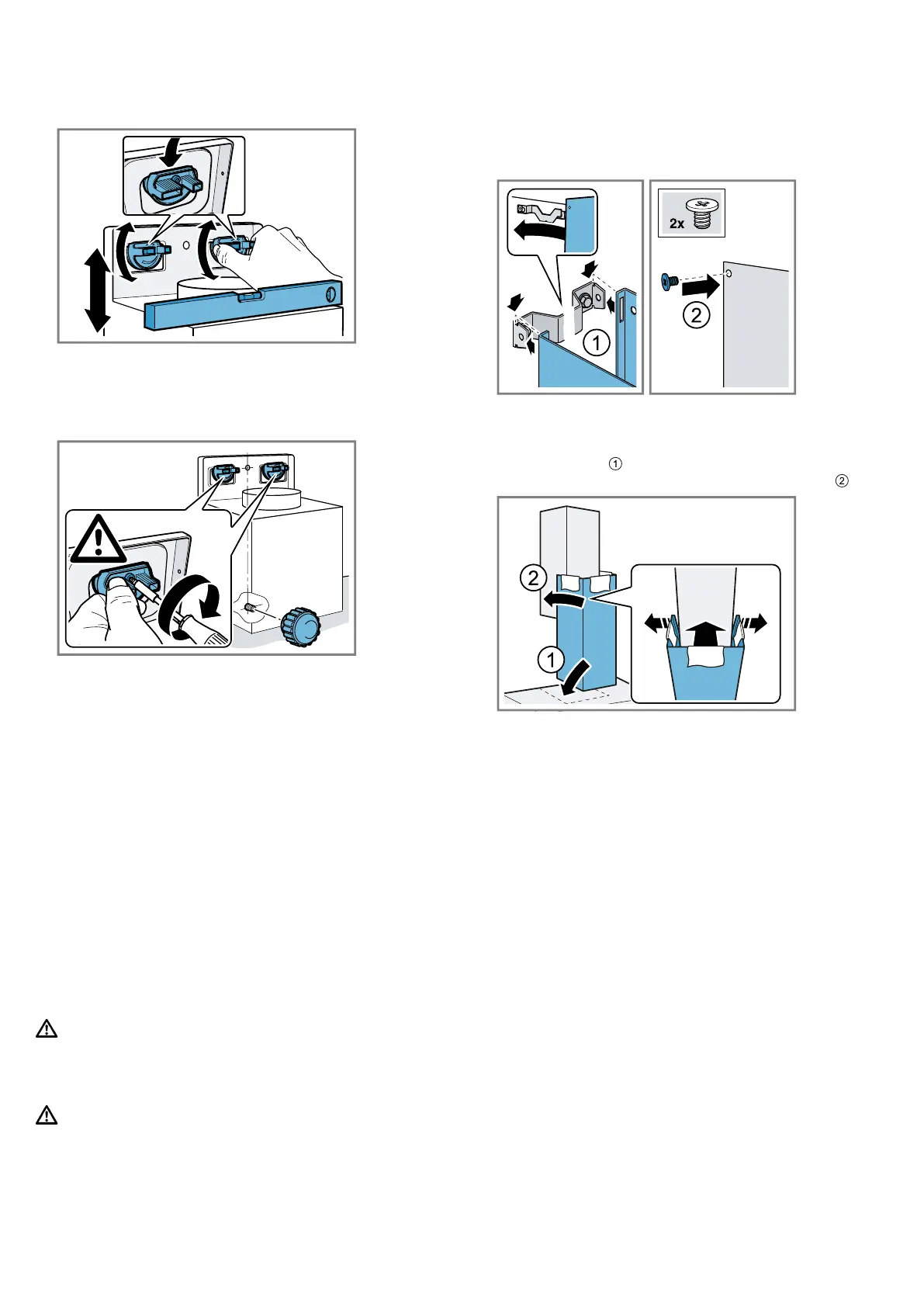

To align the appliance horizontally, turn the mount-
ing brackets.
If required, move the appliance to the right or to the
left.
4.
Firmly tighten the screws for the mounting brackets,
holding the mounting brackets in place.
5.
Firmly tighten the knurled nuts.
Piping
Note:If you are using an aluminium pipe, smooth the
connection area beforehand.
We recommend the piping with an exhaust air pipe dia-
meter of 150mm.
Establishing the exhaust air connection (exhaust air
pipe, 150mm diameter)
▶
Fit the exhaust air pipe directly to the air-pipe con-
nector and seal the joint.
Establishing the exhaust air connection (exhaust air
pipe, 120mm diameter)
1.
Secure the reducing connector to the air-pipe con-
nector.
2.
Secure the exhaust air pipe to the reducing con-
nector.
3.
Seal the joints.
Installing the flue duct
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
▶ Wear protective gloves.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appliance may
damage the connecting cable.
▶ Do not kink or trap the connecting cable.
1.
Screw the retaining bracket for the flue duct to the
wall.
2.
To separate the flue ducts, remove the adhesive
tape or the flue duct from the protective packaging.
3.
Remove any protective foil from both flue ducts.
4.
Use the 2screws to screw the upper flue duct to
the sides of the retaining bracket.
5.
Note:To prevent scratches, lay soft towels over the
edges of the outer flue duct to protect the surface.
Place the lower flue duct on the appliance and pull
it slightly apart. ⁠
6.
Put the lower flue duct over the upper flue duct. ⁠
7.
Carefully remove the towels.
