Siemens LD97AA670 User Manual

9

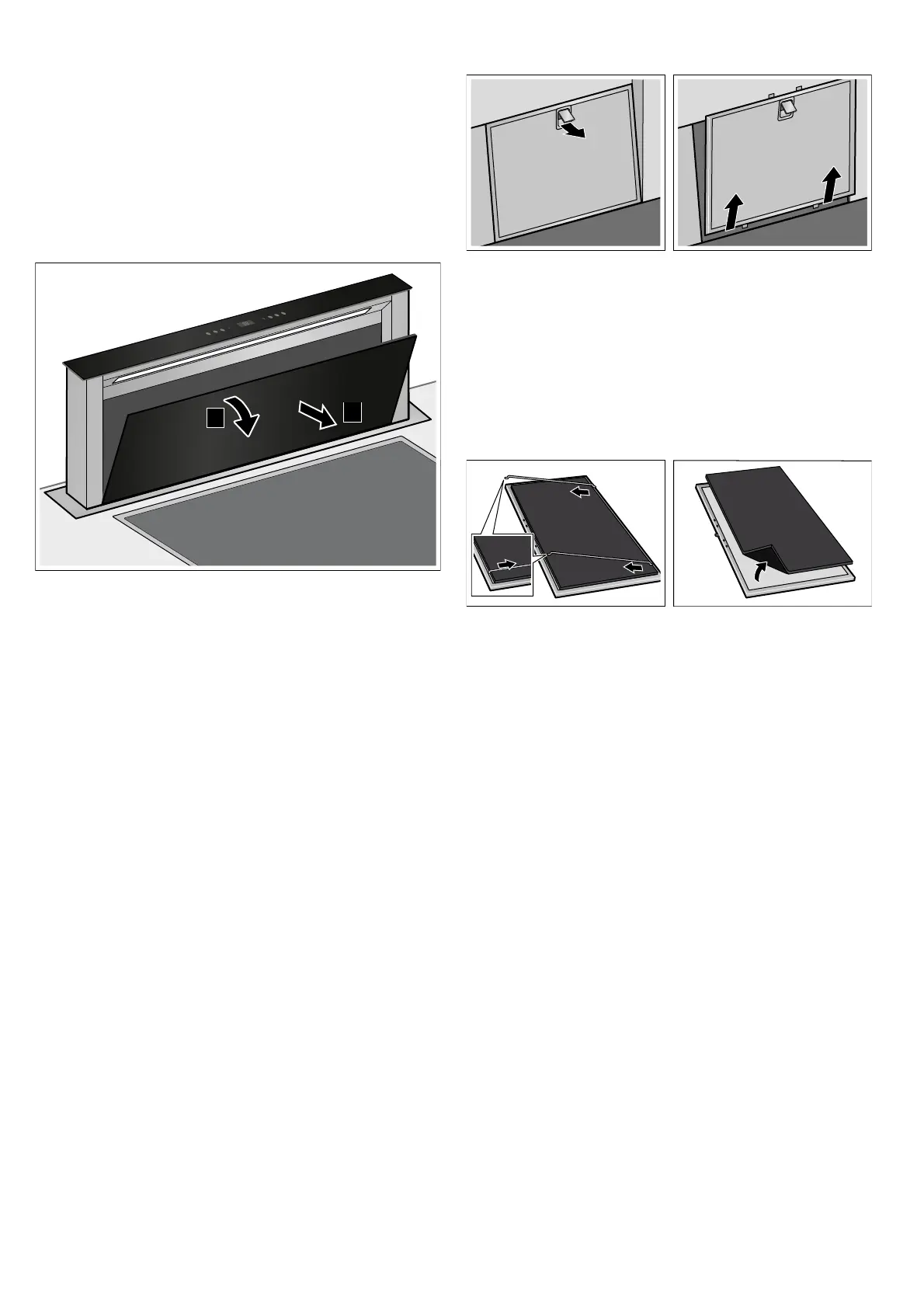

Removing and installing the filter
In order to guarantee efficient filtration of odours and grease,
the filter must be serviced regularly.
Metal grease filter
The metal grease filter must be cleaned every 100 operating
hours, and at least after two months.
Activated charcoal filter (only in circulating-air mode)
The activated charcoal filter must be replaced every
200 operating hours.
Opening the filter cover
1. Fold the filter cover forwards.
2. Lift the filter cover forwards.
Removing metal grease filter
1. Open the metal grease filter lock and remove the filter from
the holder.
Note: Grease can collect in the bottom of the filter holder.
Hold the filter holder at an angle to prevent grease from
dripping out.
2. Clean the metal grease filter and filter cover.
3. After removing the filters, clean the inside of the appliance.
Changing the activated charcoal filter (only in circulating-air
mode)
1. Hold the edge of the metal clip firmly and pull towards the
middle of the filter.
2. Take the metal clip out of the holder.
3. Disconnect the activated charcoal filter from the metal grease
filter.
4. Secure the activated charcoal filter back to the metal grease
filter with the metal clip.
Installing the metal mesh grease filter
1. Fit the metal grease filter.
2. Fit the filter cover.



Siemens LD97AA670 Specifications

General

Intensive speed	Yes
Number of speeds	5
Type of extraction	Ducted/Recirculating
Noise level (low speed)	49 dB
Maximum extraction power	750 m³/h
Noise level (high speed)	66 dB
Type	Downdraft
Cord length	1.5 m
Control type	Touch
Product color	Stainless steel
Exhaust location	Side
Exhaust connection diameter	150 mm
Motor power	275 W
Connected load	285 W
Grease filter type	Aluminum
Bulb type	LED
Bulb power	12 W
Number of bulbs	1 bulb(s)

Weight and Dimensions

Depth	352 mm
Width	880 mm
Height	- mm
Height (max)	1052 mm
Height (min)	652 mm
