32

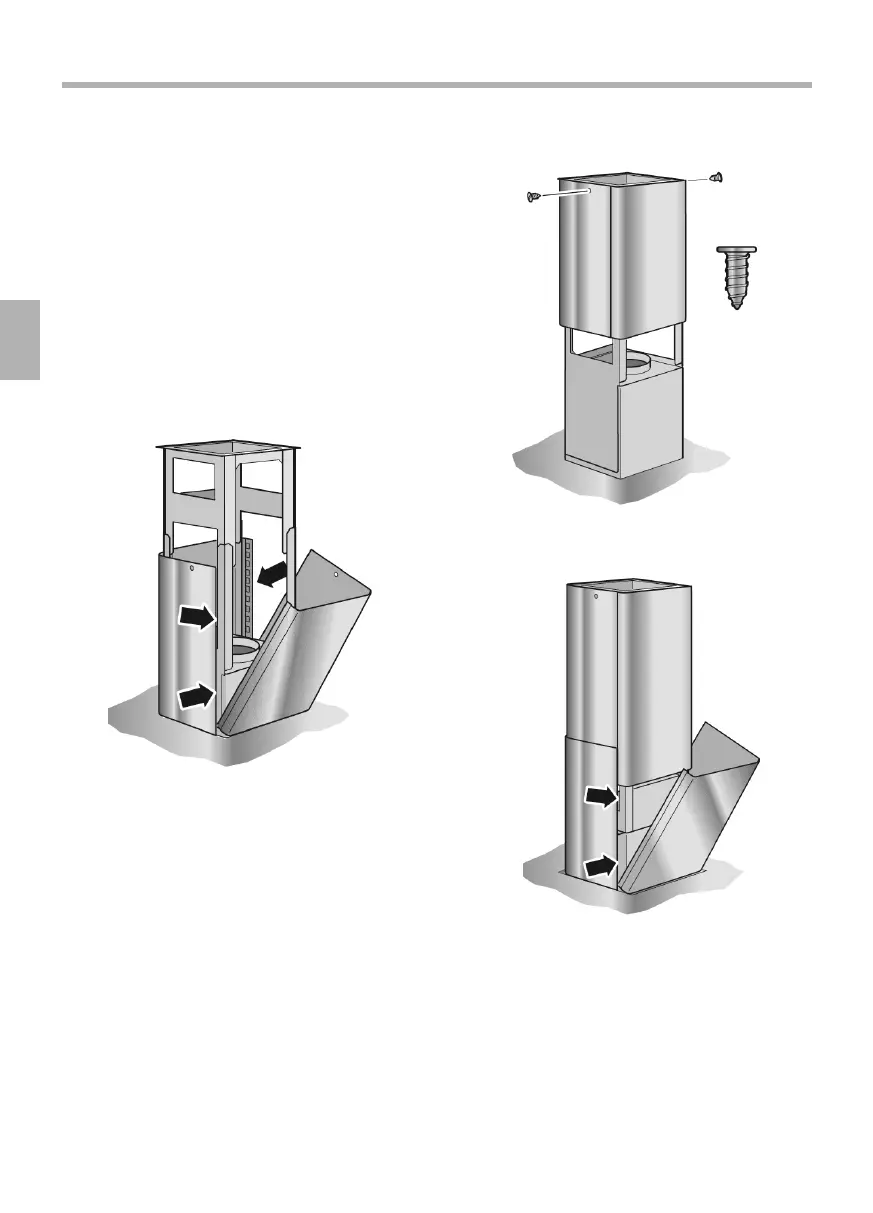

4. Push up the upper ue part and secure with
2 screws.
5. Insert the two lower parts of the ue and
push together.
Installing the ue ducts
RISK OF INJURY
The insides of the ue ducts may have sharp
edges. We recommend wearing protective
gloves during installation.
1. Separate the ue ducts. To do this, remove
the adhesive tape.
2. Remove the protective lm from both ue
ducts.
3. Attach both parts of the upper ue to the
extractor hood und push together.
NOTE: Protect the extractor hood from damage.
Avoid scratching the sensitive surfaces.
Installation
