Operation, indication, diagnostics
Operation
EK
7101z01 /0804
7101z02e/ 0305
The lockout reset button (EK) is the key operating element for resetting
the burner control and for activating / deactivating the diagnostics
functions.
The multicolor signal lamp (LED) in the lockout reset button is the key
indicating element for both visual diagnostics and interface diagnostics.
Both elements (EK / LED) are located under the transparent cover of the lockout
reset button.
There are 2 diagnostics options:
1. Visual diagnostics: Operational status indication or diagnostics of the cause of
error.
2. Interface diagnostics: With the help of interface adapter OCI400 and PC software
ACS410 (in preparation).
A description of the visual diagnostics is provided below.
Operational status
In normal operation, the different operating states are indicated in the form of color
indication
codes according to the color code table below:

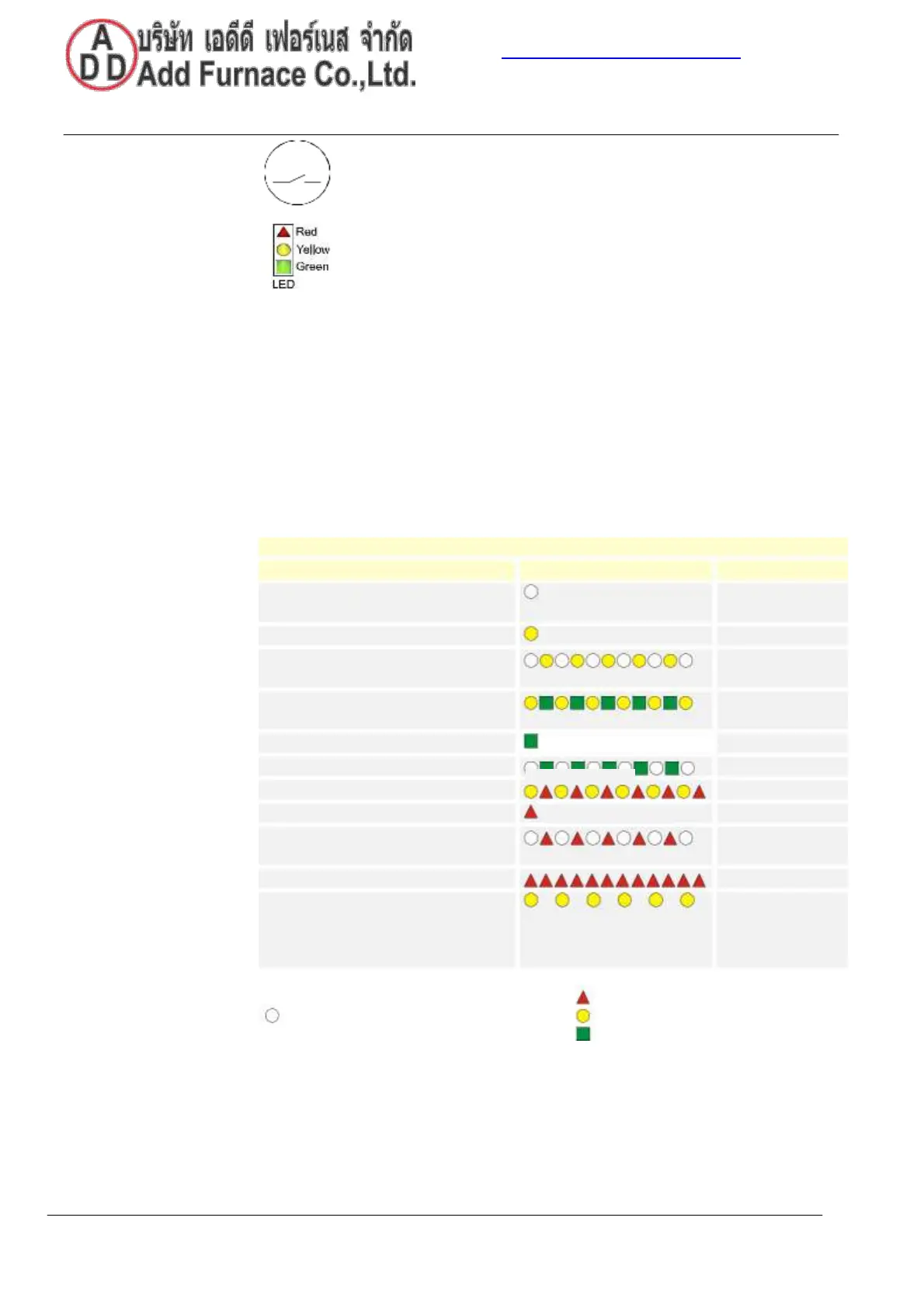

Color code table for the multicolor signal lamp (LED)
Status
Color code
Color
Waiting time (tw) or no operating
........................................
OFF
voltage
Waiting for flame signal
........................................
Yellow
Test mode active, no extraneous light
Flashing yellow
signal available
Test mode active, extraneous light
Yellow-green
signal available
Operation, flame OK
.........................................
Green
Operation, flame not OK
Flashing green
Undervoltage
Yellow-red
Error, alarm
.........................................
Red
Error code output; refer to Error code
Flashing red
table
Interface diagnostics
Red flickering light
Warning message: 1 million switching
x
xx
x
x
x
Also flashes
cycles exceeded (switching cycle
yellow in addition
counter)
to the current
color ―x‖
Key
...... Permanent
Red
OFF
Yellow
Green
Service counter
Press the lockout reset button (EK) for 10 seconds to activate a yellow flashing warning
signal when 1 million switching cycles have been performed. In this case, it is advisable
to carry out a safety test or to replace the unit.
If 1 million switching cycles have not yet been performed, there will be no yellow
flashing warning signal. Press the lockout reset button (EK) for 10 seconds again to
deactivate this function.
