5/11
Siemens Building Technologies CC1N7418en
HVAC Products 08.04.2004

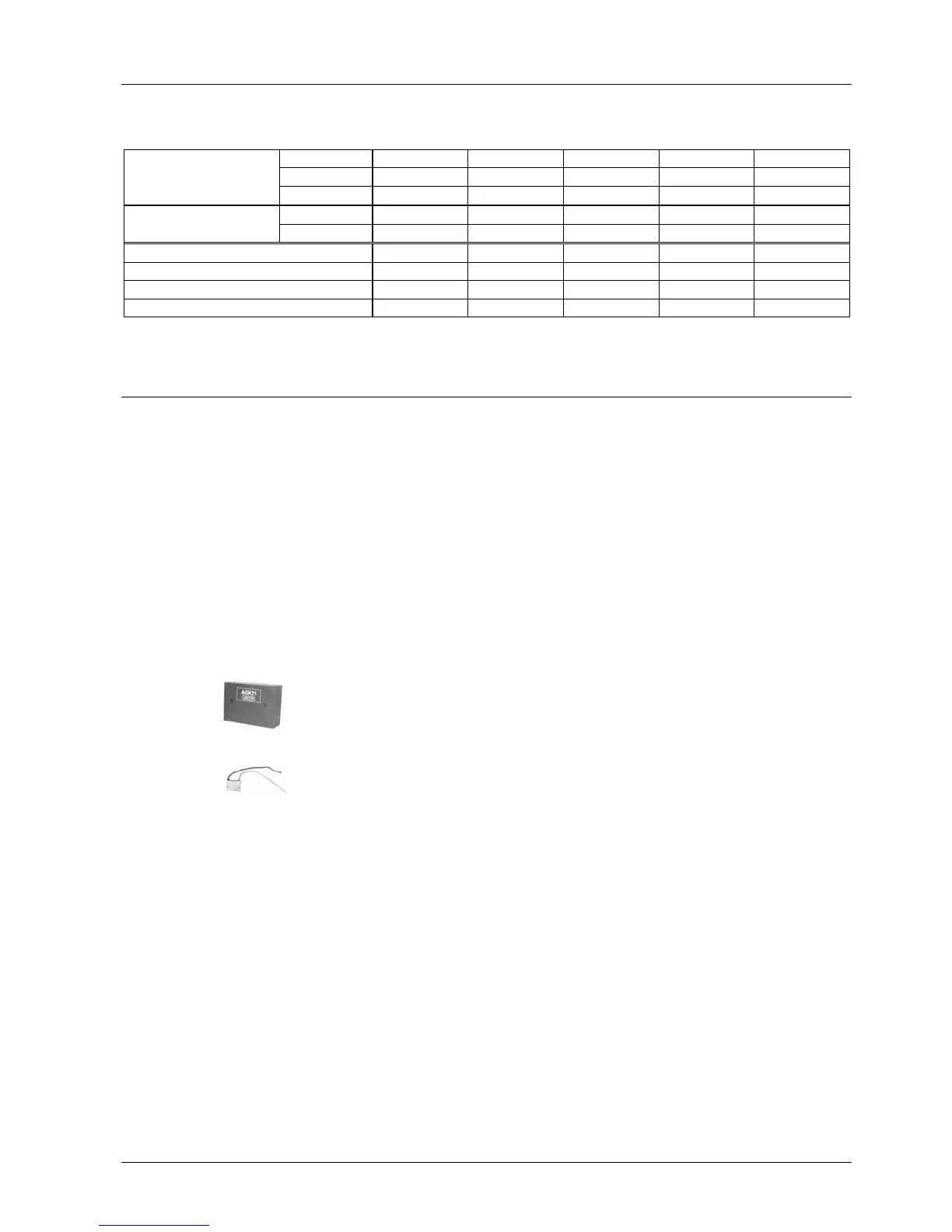

Type summary
The type references given in the table refer to burner controls with no base and no ac-
cessories.
AC 230 V --- --- --- --- LGA63.191A27
AC 220...240 V --- LGA41.173A27 LGA52.150B27 LGA52.171B27 ---
Burner with
undervoltage detection
AC 100...110 V --- --- LGA52.150B17 --- ---
Burner without AC 220...240 V LGA41.153A27 --- --- --- ---
undervoltage detection AC 100...110 V --- --- --- --- ---
Connection facility for auxiliary fan ¹) --- --- x x x
Connection facility for air pressure switch --- --- x x x
Control outputs for gas valves 2 2 2 2 2
Reversed polarity protection x x x x x
1) Auxiliary fan not monitored to EN 298
Ordering
Gas burner control (without plug-in base) refer to «Type summary»
Electrical connections refer to Data Sheet 7201
- Plug-in base AGK11...
- Cable holders AGK65..., AGK66, AGK67...
- Cable strain relief elements for AGK67...
Electrical connections refer to Data Sheet 7203
- Plug-in base AGK13...
- Plug-in housing AGK56
- Cover AGK68
Ionization probe supplied by thirds
Pedestal AGK21
- For increasing the height of the LGA... to that of the LFI1... or LFI5...
RC unit (for the supervision of ionization currents in networks with nonearthed neutral
conductor) ARC 4 668 9066 0
