8/11
Siemens Building Technologies CC1N7418en
HVAC Products 08.04.2004
When the switch-on command is given, power is supplied to the ignition transformer
and the heating coil of the bimetal sequencing device.
The bimetal bends and pushes contact set «c, d, e» towards «f».
On completion of the preignition time, the system tilts so that «e - f» closes and «f - g»
opens, «BV1» receives voltage.
Contacts «c - d» still remain closed («c» resting on «d»).
On flame establishment, the flame relay is energized, latching mechanically «e - f» in
the position now assumed.
The relay also closes contact «f» and, at the same time, opens «c - d», so that the igni-
tion transformer and the bimetal heating element will be switched off.
Then, «d» slowly returns to its starting position, also catching «g».
When tilting back, «g - f» closes, so that the main gas valve «BV2» will be energized.
If no flame signal is generated, the flame relay does not open «c - d», so that the bi-
metal will continue to be heated.
The bimetal thus continues to bend until – tilting – it actuates contact «tz2»: → Lockout.
In the event of an erroneous premature flame signal, the flame relay – by means of its
latch – prevents «e - f» from making, which means no release of gas.
«TZ», however, still receives power so that the bimetal continues to bend until, eventu-
ally, lockout is initiated by «tz2».
EK
1
SB
W
R
L
N
210
AL
9
11
83 76
45
12
Z BV1
BV2
ION
7418i02/0304
LGA41...
L1
tz2
X
Y
Z
a
b
fr
TZ
c
d
e
tz1
f
g
FR
Si
H
AL Fault status signal R Thermostat or pressurestat
BV... Fuel valve SB Safety limit thermostat
EK Lockout reset button Si External primary fuse
ION Ionization probe TZ Electro-thermal timer
FR Flame relay (bimetal system) with contacts «tz»
L1 Built-in lockout warning lamp W Limit thermostat
H Main switch Z Ignition transformer

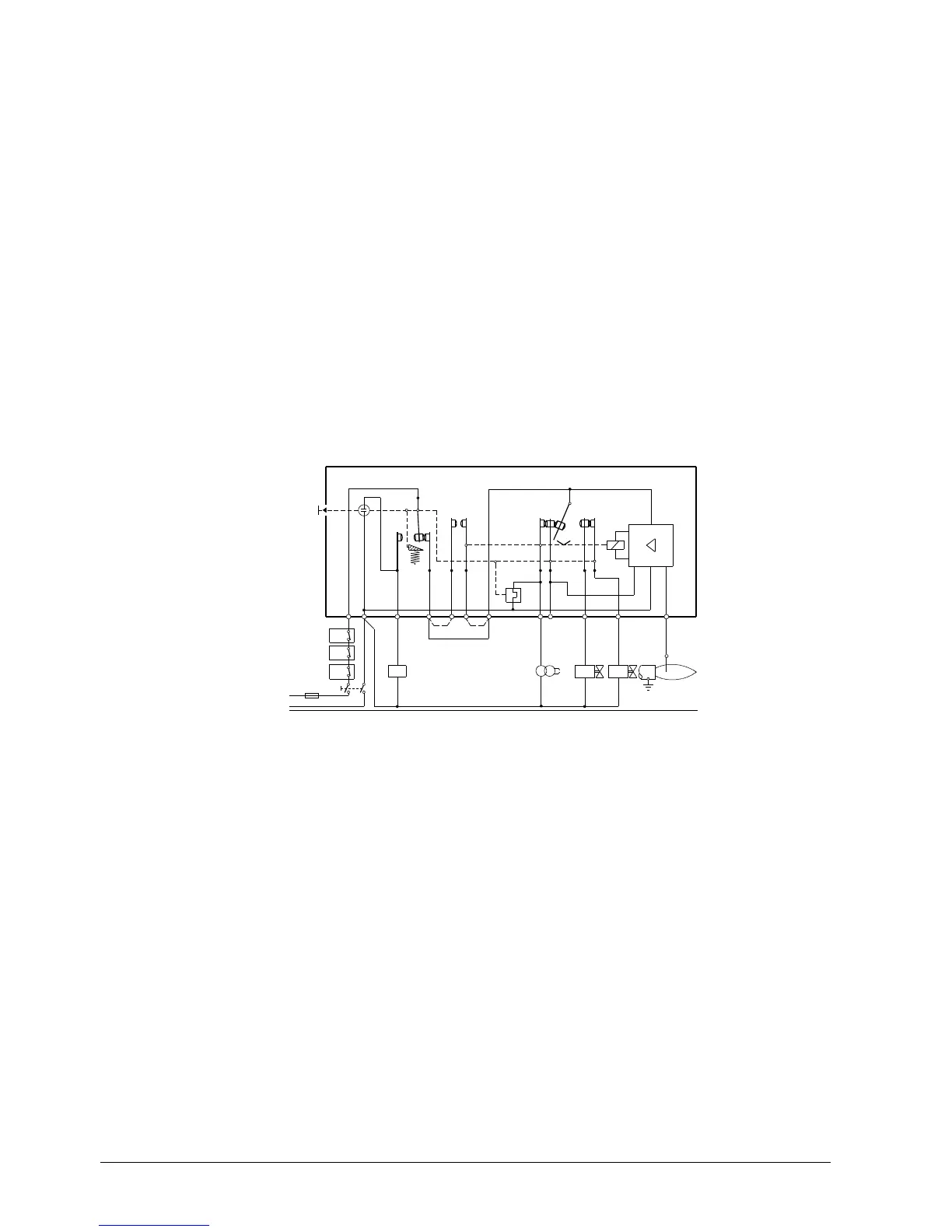

Internal diagram
LGA41...
Legend
