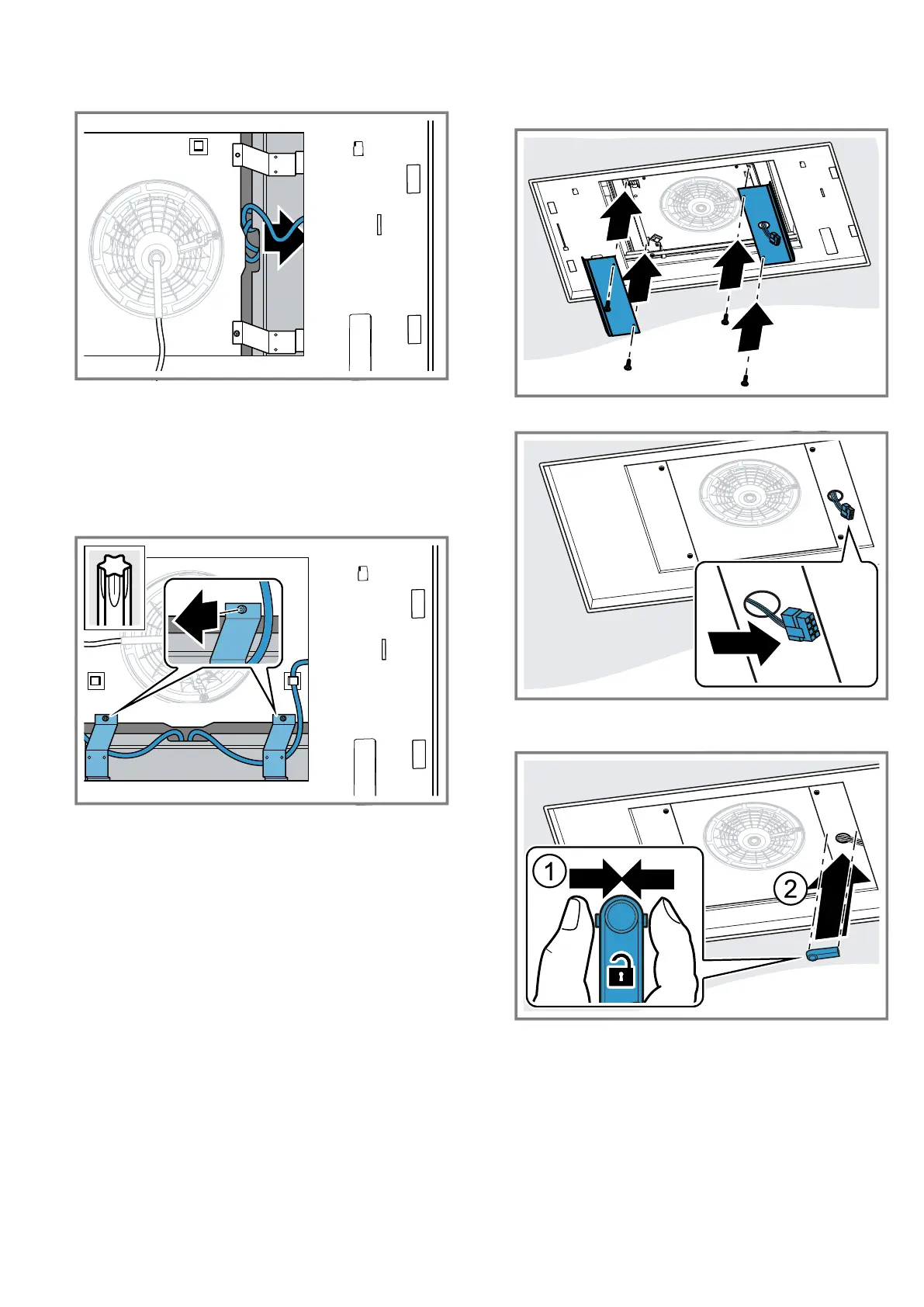

en Installation instructions
20
4. Store the remaining cable in the gap.
5. Tighten the screw on the metal hook so that it is
firmly in place.
Turning the air outlet clockwise
1. Ausgehend vom Auslieferungszustand, den Lüfter-
kasten im Uhrzeigersinn drehen, sodass der
Luftauslass nach rechts zeigt.
2. Undo the screw on the metal hook.
20
3. Das Kabel durch den Metallhaken ziehen.
4. Das Kabel in die Kabelführung 4 einhängen.
5. Tighten the screw on the metal hook so that it is
firmly in place.
Finishing connecting the appliance
1. Guide the cable through the opening in the side
cover.
2. Insert the side covers and screw them firmly in
place.
3. Connect the cable.
4. Press together the cable duct at the sides and at-
tach.
