Siemens LR97CAQ50 User Manual

en Familiarising yourself with your appliance
6

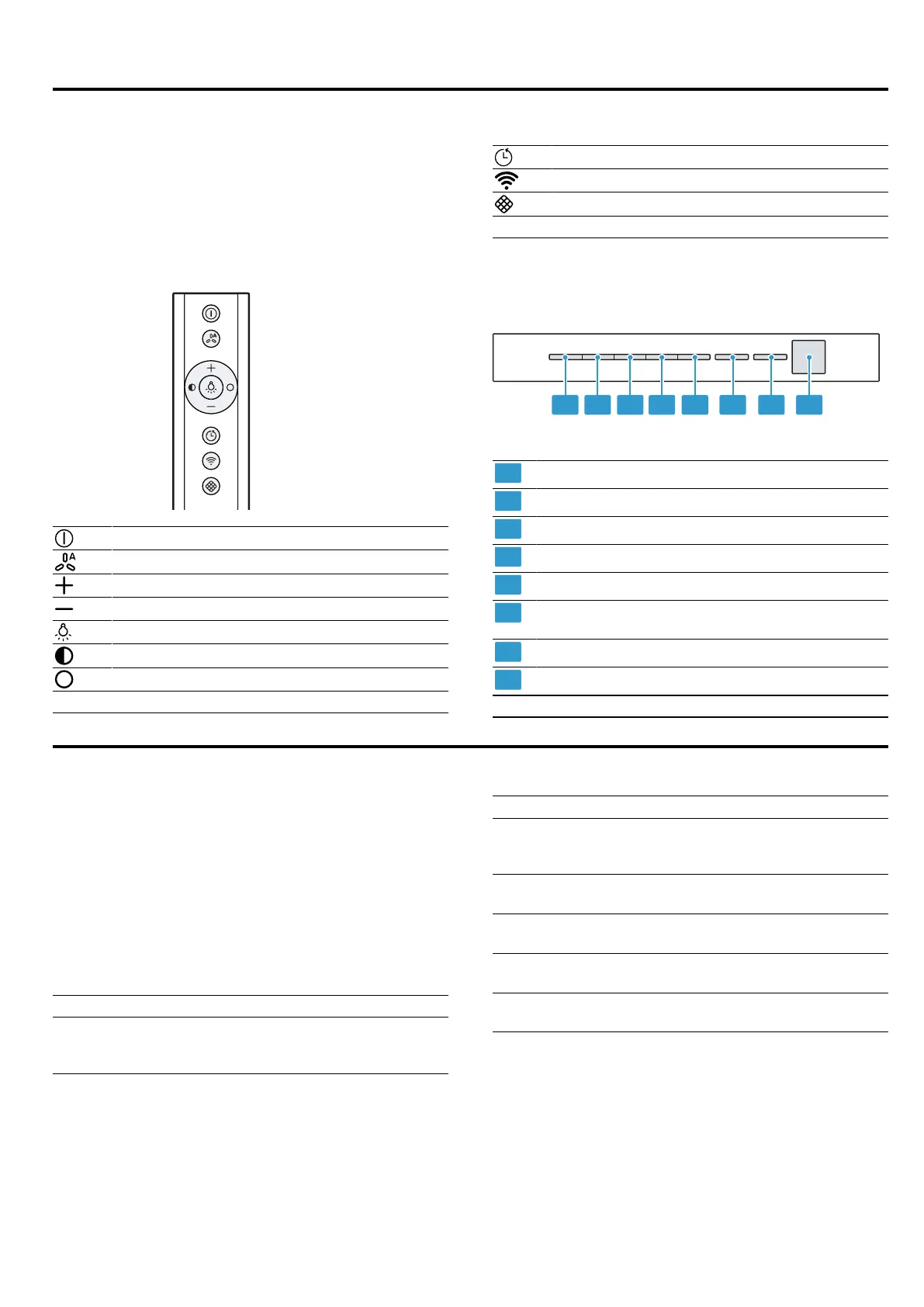

5 Familiarising yourself with your appliance
5.1 Controls
The controls are used to configure all functions of your
appliance and to obtain information about the operat-
ing status.
Tip:Align the remote control as precisely as possible
to the infrared receiver for the LED display.
Switch the appliance on or off
Switch on automatic mode
1
Increase the fan setting
Decrease the fan setting
Switch the lighting on or off
Reduce the brightness
Increase the brightness
1
Depending on the appliance specifications
Switch the fan run-on on or off
SwitchHomeConnect on or off
Reset the filter saturation indicator
1
Depending on the appliance specifications
5.2 LED display
Die LED-Anzeige zeigt eingestellte Werte und Funk-
tionen.
81 2 3 4 5 6 7
1
Fan setting 1/grease filter saturation display
2
Fan setting 2/odour filter saturation indicator
3
Fan setting 3
4
Intensive mode 1
5
Intensive mode 2
6
Automatic mode
1
/fan run-on time/interval vent-
ilation
7
HomeConnect
8
Infrared receiver
1
Depending on the appliance specifications
6 Accessories
You can buy accessories from the after-sales service,
from specialist retailers or online. Only use original ac-
cessories, as these have been specifically designed for
your appliance.
Accessories vary from one appliance to another. When
purchasing accessories, always quote the exact
product number (E no.) of your appliance. →Page14
You can find out which accessories are available for
your appliance in our catalogue, in the online shop or
from our after-sales service.
www.siemens-home.bsh-group.com
Accessories Order number
Clean Air Plus circulating-
air kit, external, stainless
steel
LZ21JCC56
Accessories Order number
Long Life circulating-air
kit, external, stainless
steel
LZ20JCD50
Clean Air Plus recirc.kit
external white
LZ21JCC26
Long Life recirc. kit ex-
ternal white
LZ20JCC20
Long Life odour filter (re-
placement)
LZ00XXP00
Clean Air Plus odor filter
(replacement)
LZ31XXB16

Siemens LR97CAQ50 Specifications

General

Type	Ceiling built-in
Cord length	1.3 m
Certification	CE, VDE
Product color	Black, Silver
Built-in display	-
Exhaust connection diameter	150 mm
Noise level	56 dB
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	41 dB
Maximum extraction power	760 m³/h
Noise level (high speed)	63 dB
Maximum recirculating power	560 m³/h
Noise level (intensive speed)	68 dB
Fluid dynamic efficiency class	A
Grease filtering efficiency class	E
Minimum distance from electric hob	650 mm
Bulb type	LED
Bulb power	3 W
Illuminance	659 lx
Number of bulbs	4 bulb(s)
Grease filter type	Stainless steel
Motor power	174 W
Connected load	160 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	31.8 kWh

Weight and Dimensions

Depth	500 mm
Width	900 mm
Height	300 mm
Weight	26900 g
Installation compartment depth	487 mm
Installation compartment width	888 mm
Installation compartment height	299 mm
