Dimensions


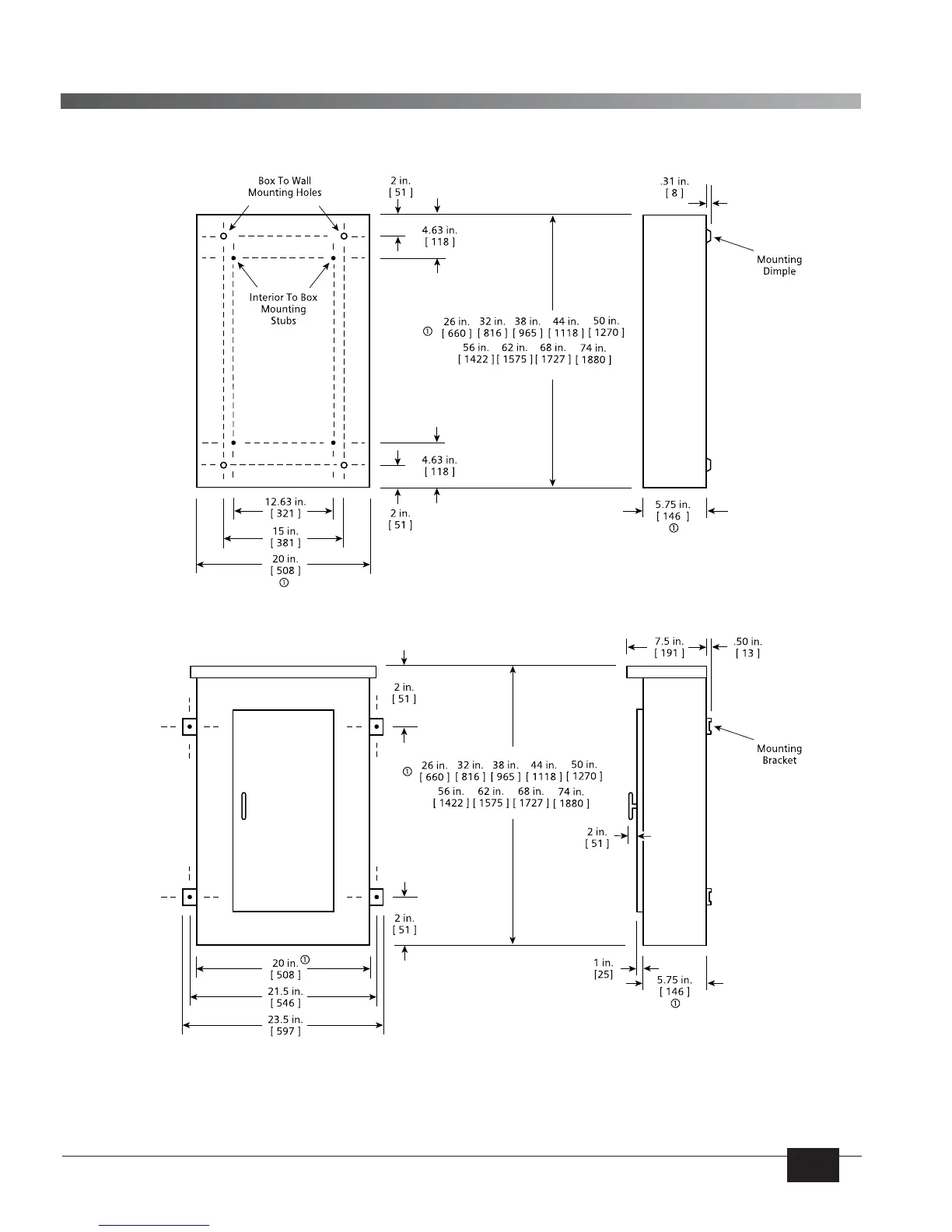

Type 1 Box
Box is symmetrical
Type 3R/12 Box
Dimensions are interior of the box. Add 5/8” to width for
absolute dimension. Add 1/8” to height for absolute dimension.
Dimensions shown in inches and millimeters [ ].
