RAB20 Series Two-pipe Fan Coil Room Thermostat Technical Instructions
Document Number 155-526P25
March 2, 2007
Siemens Building Technologies, Inc. Page 7
2 × 4-inch Electrical Wall
Box Mounting
An ARG70 wall plate adapter (provided with electrical wall box mount models) is
required to mount an RAB… thermostat to a 2 × 4-inch electrical wall box.
1. Loosen the two screws at the bottom of thermostat.
2. Lift the bottom of the thermostat cover from the thermostat base and push up to
remove cover.
3. Using the two screws provided, fasten wall box adapter (3) to plaster ring (2),
supplied by others.
4. Pull wires through plaster ring (2).
5. Flex adapter mask (4) and snap in place inside wall box adapter (3).
6. Fasten sub-base (5), included with thermostat, to wall box adapter assembly (3)
and (4) with the two screws provided.
7. Follow Drywall Mounting Steps 7 through 16.
The installation is now complete.
TH0635R1
1
3
4
5
7
6

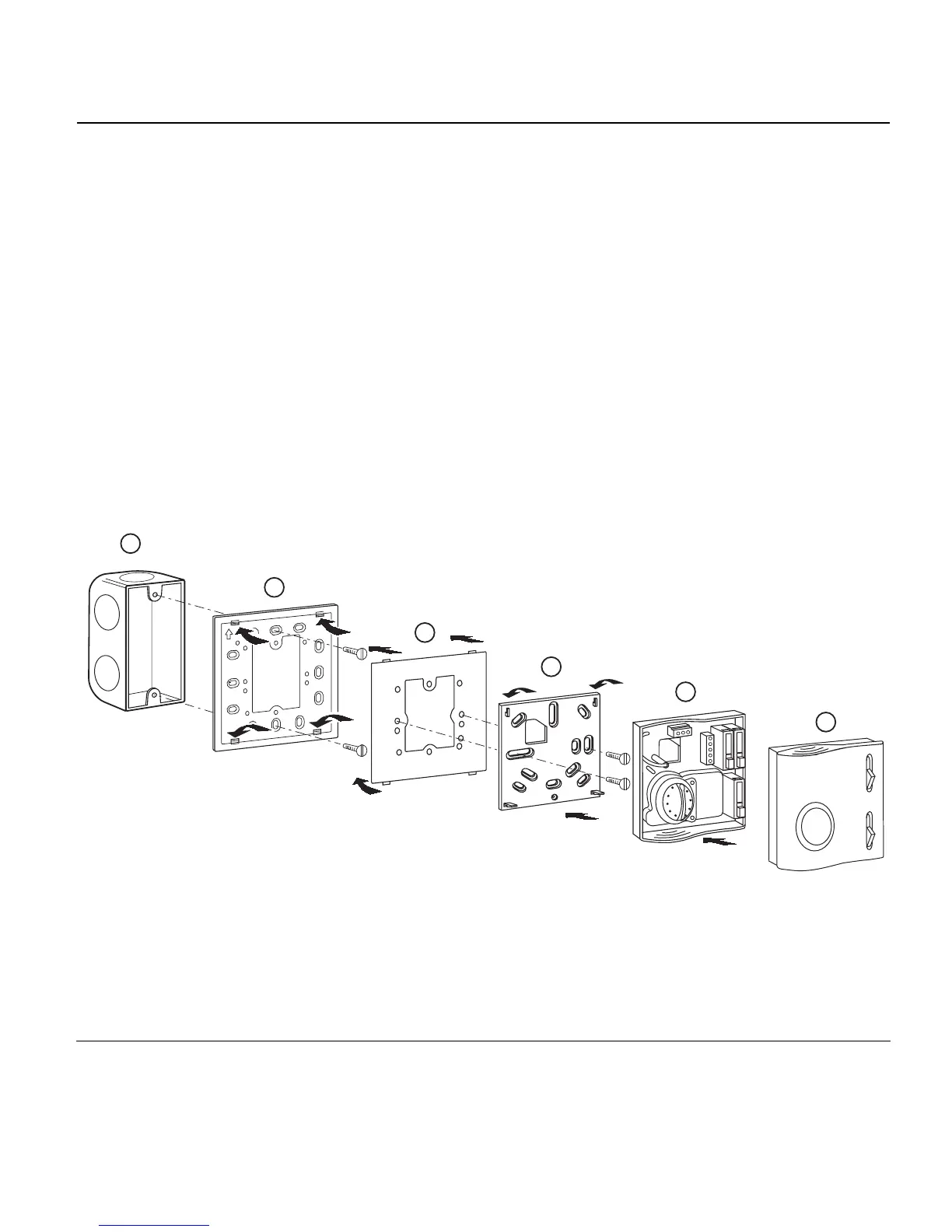

Figure 4. 2 × 4-inch Electrical Wall Box Installation.
1 Electrical wall box
3 Wall box adapter *
4 Adapter mask *
* Included with ARG70
5 Sub-base
6 Thermostat base
7 Thermostat cover
