Siemens RCD310 Series User Manual

Technische Änderungen vorbehalten. Zum späteren Gebrauch aufbewahren.
Subject to change without prior notice. Store for use at a later date.
3339204101-04
3ZW1012-0VA01-4FA0
© Siemens AG 2013
'
-
)
.
**
(
,
,
,
+
$
%
&
∅3.5mm
,QIRUPDWLRQ,QIRUPDWLRQ,QIRUPDWLRQV,QIRUPDFLyQ⫖㭤

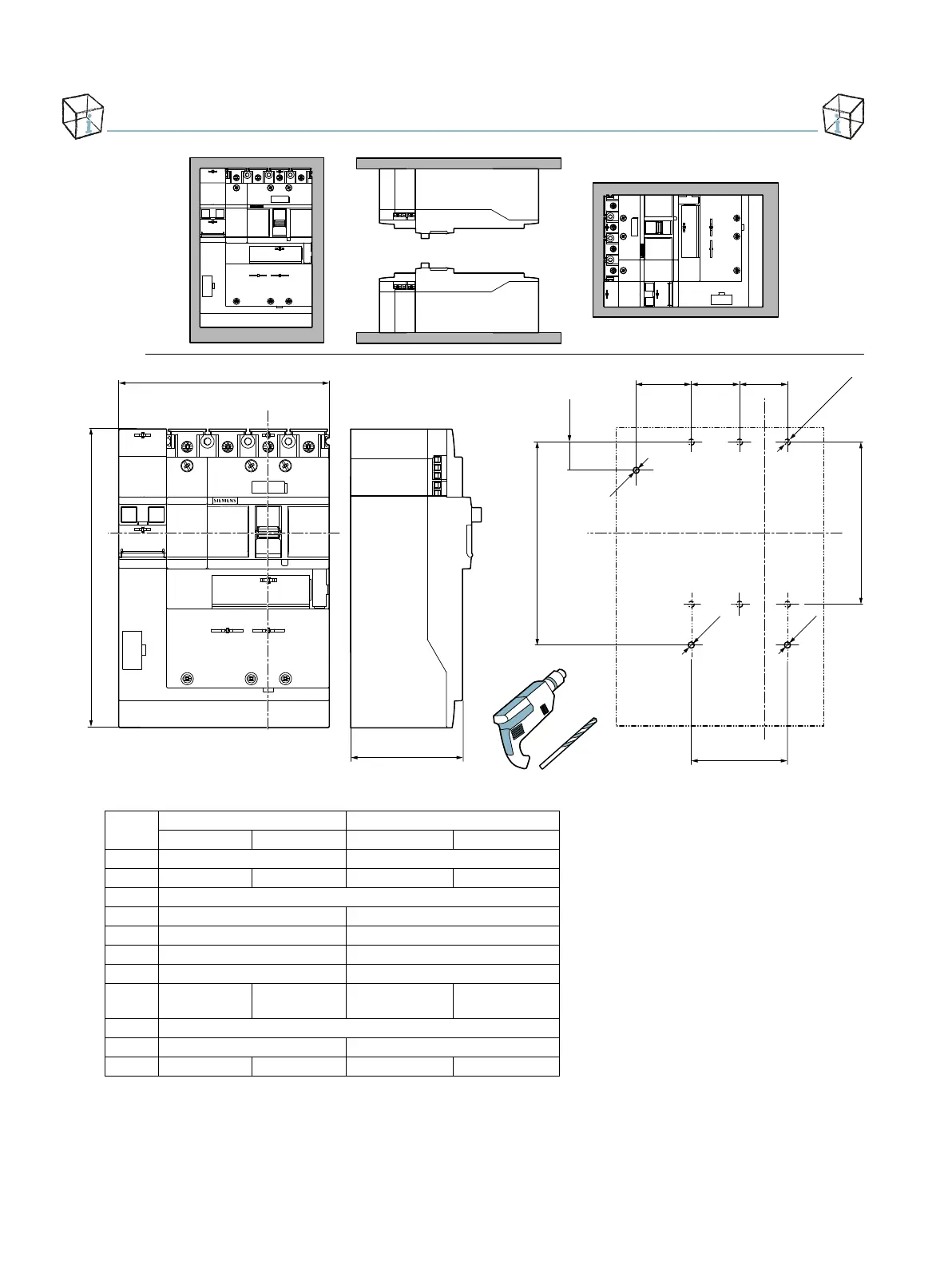

3VA1 160; RCD 310 / 510 3VA1 250; RCD 510
3P 4P 3P 4P
A 187 mm 228 mm
B 106.4 mm 131.8 mm 135 mm 170 mm
C 70 mm
D 129.2 mm 147.75 mm
E 20.7 mm 20.75 mm
F 35.6 mm 45 mm
G 25.4 mm 35 mm
H 4XØ4.5mm
(MCCB)
6XØ4.5mm
(MCCB)
4XØ4.5mm
(MCCB)
6XØ4.5mm
(MCCB)
I Ø3.5mm
J 114.5 mm 123.5 mm
K — 50.8 mm — 70 mm
