32X049EN - April 2009 – HVAC Products 13

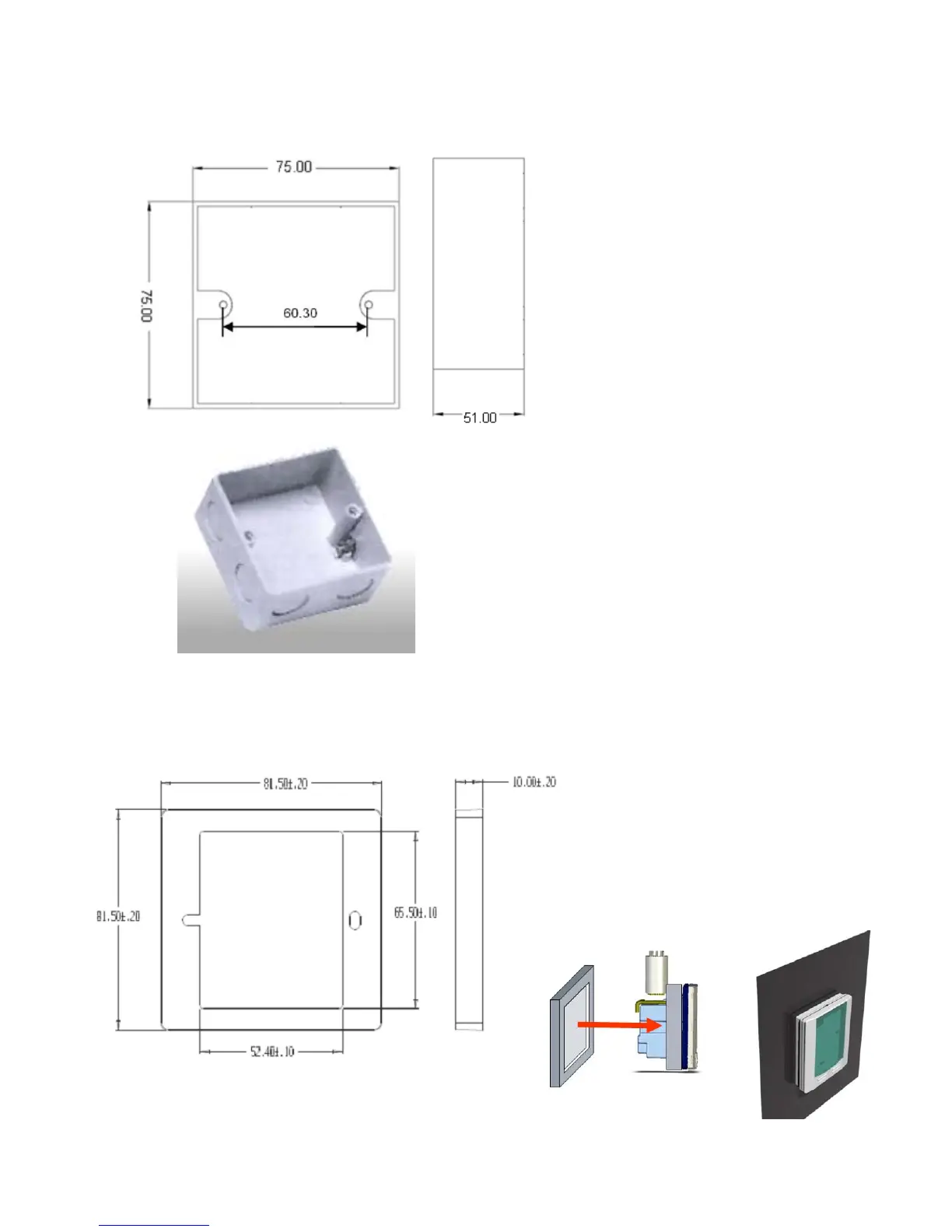

ARG71 – conduit box for all RDF semi flush-mounted room
temperature controllers
ARG70.3 – plastic mounting bracket to fit RDF semi flush-mount
room temperature controllers to conduit boxes without sufficient
depth
Main features:
• Size: 75 mm x 75 mm x 51 mm with
fixing centers 60.3 mm
• For installation of all semi flush-
mount room temperature controllers
• Conformant to BSI standard
BS4662, EN 50086-2-1, IEC/670.
Main features:
• For installation of all semi flush-
mount room temperature controllers
• ARG70.3 is put between the wall
and the room temperature controller,
increasing the headroom in the box
by 10 mm
