Engineering notes
See the "Reference documentation", page 15 for information on how to engineer
the KNX bus (topology, bus repeaters, etc.) and how to select and dimension
connecting cables for supply voltage and field devices.
Mounting and installation

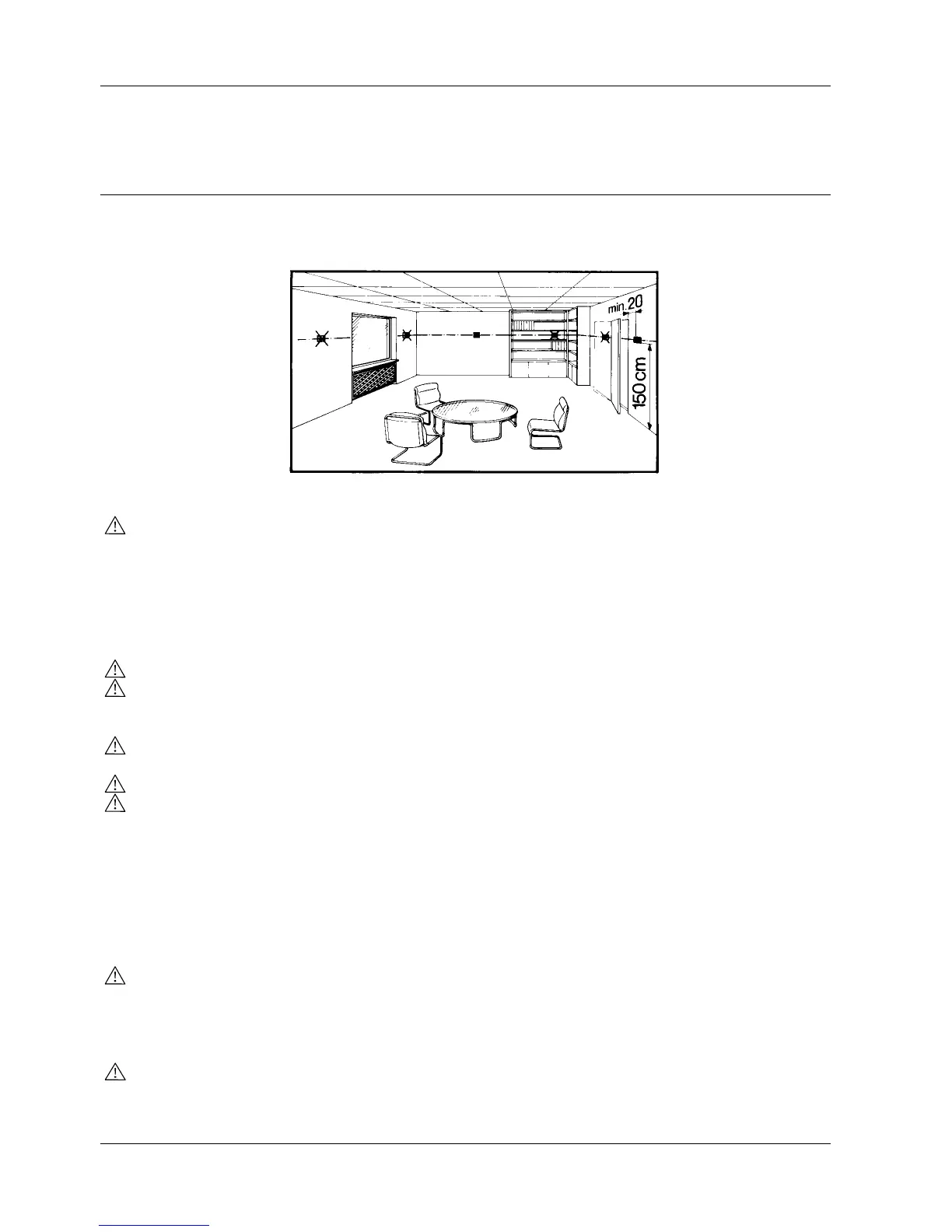

Mount the room thermostat on a conduit box. Do not mount on a wall in niches or
bookshelves, behind curtains, above or near heat sources, or exposed to direct
solar radiation. Mount about 1.5 m above the floor.
Mounting / Dismounting
• Mount the room thermostat on a clean, dry indoor place without direct airflow
from a heating / cooling device, and not exposed to drips or splash water.
• RDF301… : In case of limited space in the conduit box use the mounting
bracket ARG70.3 to increase the headroom by 10mm
• Before removing the front cover, disconnect the power supply.
Wiring
See the mounting instructions M3171... and M3076.1 enclosed with the
thermostat.
• Comply with local regulations to wire, protection and earth the thermostat.
• The device has no internal fuse for supply lines to fan and actuators. To avoid
risk of fire and injury due to short-circuits, the AC 230 V mains supply line must
have a circuit breaker with a rated current of no more than 10 A.
• Properly size the cables to the thermostat, fan and valve actuators for
AC 230 V mains voltage.
• Use only valve actuators rated for AC 230 V.
• The wiring cross section used for power supply (L, N), fan (Q1, Q2, Q3,N) and
230 V outputs (Yx -N) must be adapted to the preceding overload protection
elements (10A) under all circumstances. Comply under all circumstances with
local regulations
• Cables of SELV inputs X1-M/X2-M: Use cables with 230 V insulation, as the
conduit box carries AC 230 V mains voltage.
• Inputs X1-M or X2-M of different units (e.g. summer/winter switch) may be
connected in parallel with an external switch. Consider overall maximum
contact sensing current for switch rating.
• KNX communication cables (input CE+ / CE-): Use cables with 230 V
insulation, as the conduit box carries AC 230 V mains voltage.
• No metal conduits.
• No cables provided with a metal sheath.
• Disconnect from supply before opening the cover.
• When a KNX bus power supply is connected on the line with communicating
thermostats and Synco controller, the internal KNX power supply of the Synco
controllers must be switched off.
10 / 17
Siemens RDF301, RDF301.50..., RDF600KN CE1N3171en
Building Technologies Semi flush-mount communicating room thermostats 2014-05-23
