Siemens RDF310 Series User Manual

Product standards
Automatic electrical controls for household
and similar use
Special requirements for temperature-
dependent controls
EN 60 730 – 1
EN 60 730 – 2 - 9
Electromagnetic compatibility
Emissions
Immunity
IEC/EN 61 000-6-3
IEC/EN 61 000-6-1
Devices of safety class II to EN 60 730
Pollution class normal
Degree of protection of housing IP 30 to EN 60 529
Connection terminals solid wires or prepared
stranded wires
2x0.4-1.5 mm
2
or 1x2.5 mm
2
Weight 0.17 kg
Color of housing front white, RAL 9003
General
Connection terminals
L
NQ1Q2Q3 Y11N
3057G01
AC 230 V
L, N Operating voltage AC 230 V
Q1 Control output “Fan speed 1 AC 230 V
Q2 Control output “Fan speed 2 AC 230 V
Q3 Control output “Fan speed 3 AC 230 V
Y11 Control output “Valve” AC 230 V (N.O.,
for normally closed valves) or output for
compressor

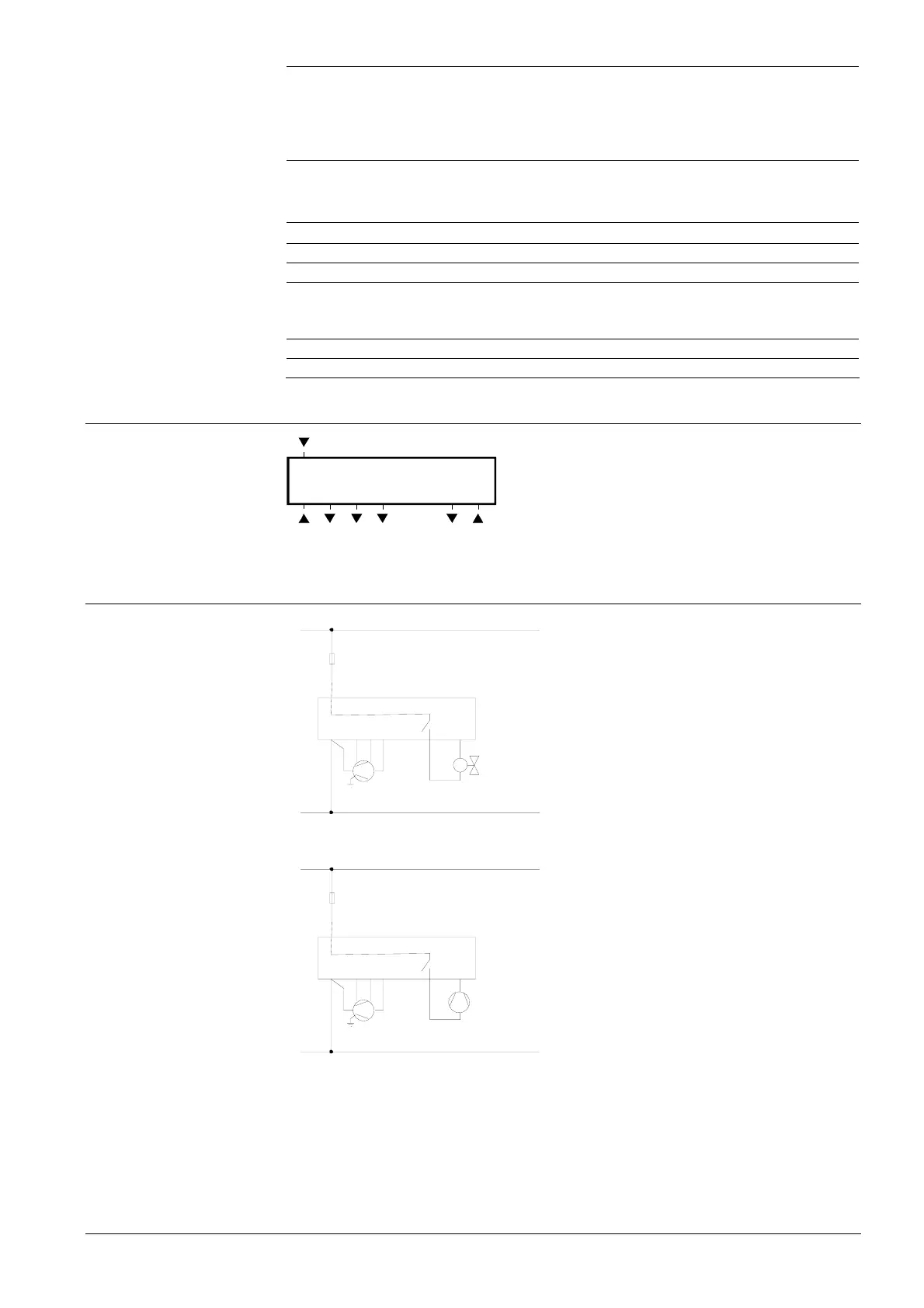

Connection diagrams
Application:
2-pipe fan coil units
L
N
10 A
LB1
M
NQ1Q2Q3 Y11N
4(2)A
max.
4(2)A
max.
I II III
AC 230 V
3
0
5
7
A
0
5
M1
Y1
N1
M1 3-speed fan
N1 Room temperature controller
RDF310.../RDF410...
Y1 Zone valve
Application:
Compressor
in DX type equipment
L
N
10 A
L
NQ1Q2Q3 Y11N
4(2)A
max.
4(2)A
max.
I II III
AC 230 V
3
0
5
7
A
0
6
M1
C1
N1
M1 3-speed fan
N1 Room temperature controller
RDF310.../RDF410...
C1 Compressor
13/14
Siemens Room Temperature Controllers N3067en
Building Technologies 01.10.2007
