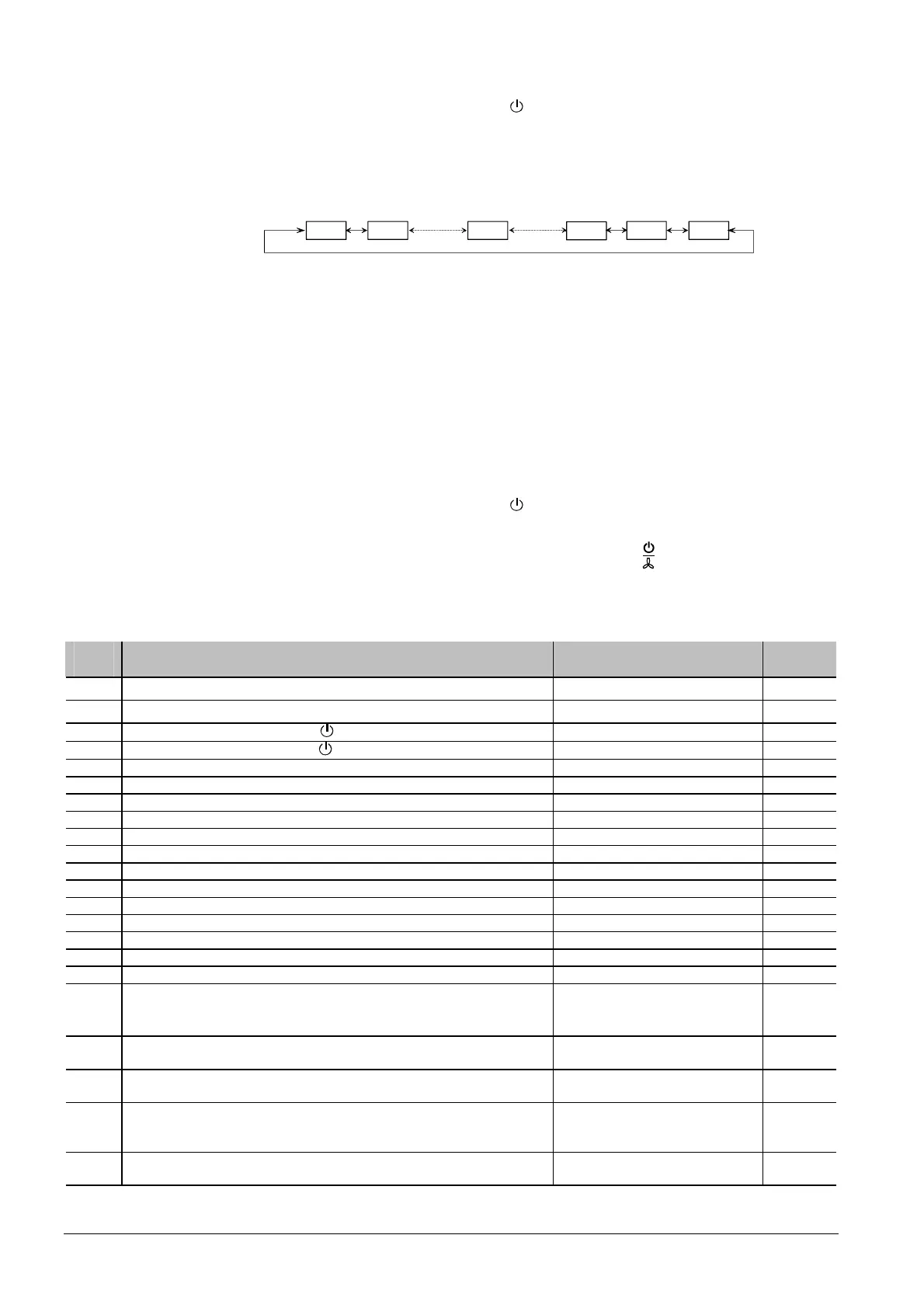

Parameter settings The parameters can be changed as follows:
1. Set the controller to Standby
.
2. Press buttons +
and - simultaneously for 3 seconds. Release them and, within
2 seconds, press button + again for 3 seconds. Then, the display will show
“P01“.
3. Select the required parameter by repeatedly pressing buttons + and -:
P01 P02 P22 P98
+-+
--
+
3057z03
P99
-
+
-
P25
+-
4. By pressing buttons + and - simultaneously, the current value of the selected
parameter appears, which can be changed by repeatedly pressing
buttons + or -
.
5. By pressing buttons + and - simultaneously again or 5 seconds after the last
press of a button, the last parameter will be displayed again.
6. If you wish to display and change additional parameters, repeat steps 3
through 5.
7. 10 seconds after the last display or setting, all changes will be stored and the
controller returns to Standby.
The factory setting of the control parameters can be reloaded as follows:
Parameter reset
1. Set the controller to Standby
.
2. Press buttons +
and - simultaneously for 3 seconds. Release them and, within
2 seconds, press operating mode selector button
2 times.
Then, the display will show “888“ during the reloading process.
Control parameters
Para-
meter
Meaning Setting range
Factory
setting
P01
1)
Setpoint of heating in Energy Saving mode (Wheat
Eco
) OFF, 5 °C…Wcool
Eco
16 °C
P02
1)
Setpoint of cooling in Energy Saving mode (Wcool
Eco
) OFF, Wheat
Eco
…40 °C
28 °C
P03
Setpoint of heating in Standby
(Wheat
Stb
)
OFF, 5 °C…Wcool
Stb
OFF
P04
Setpoint of cooling in Standby
(Wcool
Stb
)
OFF, Wheat
Stb
…40 °C OFF
P05 Minimum setpoint limitation in Normal operation (Wmin
Comf
) 5 °C…Wmax
Comf
5 °C
P06 Maximum setpoint limitation in Normal operation (Wmax
Comf
) Wmin
Comf
…40 °C 35 °C
P07 Sensor calibration -3…+3 K 0 K
P08 Switching differential heating mode SDH 0.5…+4K 2 K
P09 Switching differential cooling mode SDC 0.5…+4K 1 K
P10 Switching differential fan speed 2 in heating mode SDH2 0.5…+4K 1 K
P11 Switching differential fan speed 2 in cooling mode SDC2 0.5…+4K 1 K
P12 Switching differential fan speed 3 in heating mode SDH3 0.5…+4K 1 K
P13 Switching differential fan speed 3 in cooling mode SDC3 0.5…+4K 1 K
P14 Dwelling time of auto fan speeds 1…5 minutes 2 min
P15 Minimum output on time (Y11) 1…10 minutes 1 min
P16 Minimum output off time (Y11) 1…10 minutes 1 min
P17 Selection of °C or °F °C or °F °C
P18
Display of temperature or setpoint
OFF: Setpoint
ON: Room (or return air)
temperature
ON
P20
1)
Fan control in Energy Saving mode
OFF in dead zone
ON in dead zone
OFF
P21 Fan control in Normal operation
OFF in dead zone
ON in dead zone
ON
P22 Heating / cooling mode
0: Heating only
1: Cooling only
3: Manual H/C changeover
3: Manual
P25 Infrared receiver (only with RDF310.21 and RDF410.21)
0: Disabled
1: Enabled
1
1) Only available with RDF410…
8/14
Siemens Room Temperature Controllers N3067en
Building Technologies 01.10.2007
