Siemens RUGGEDCOM RX1524 User Manual

Modules
4.4Installing/Removing Power Modules
5. Install a new or blank module to prevent the ingress of dust and dirt.
Installing a Power Module
To install a power module, do the following:
1. If equipped, remove the existing module.
2. If applicable, connect the supplied terminal block to the module or connect the
terminal block from the previous module.
3. Confirm or connect the wiring from the power supply to the module. For more
information, refer to "Connecting Power (Page 11)".
4. Insert the module into the empty slot.
3
2
1

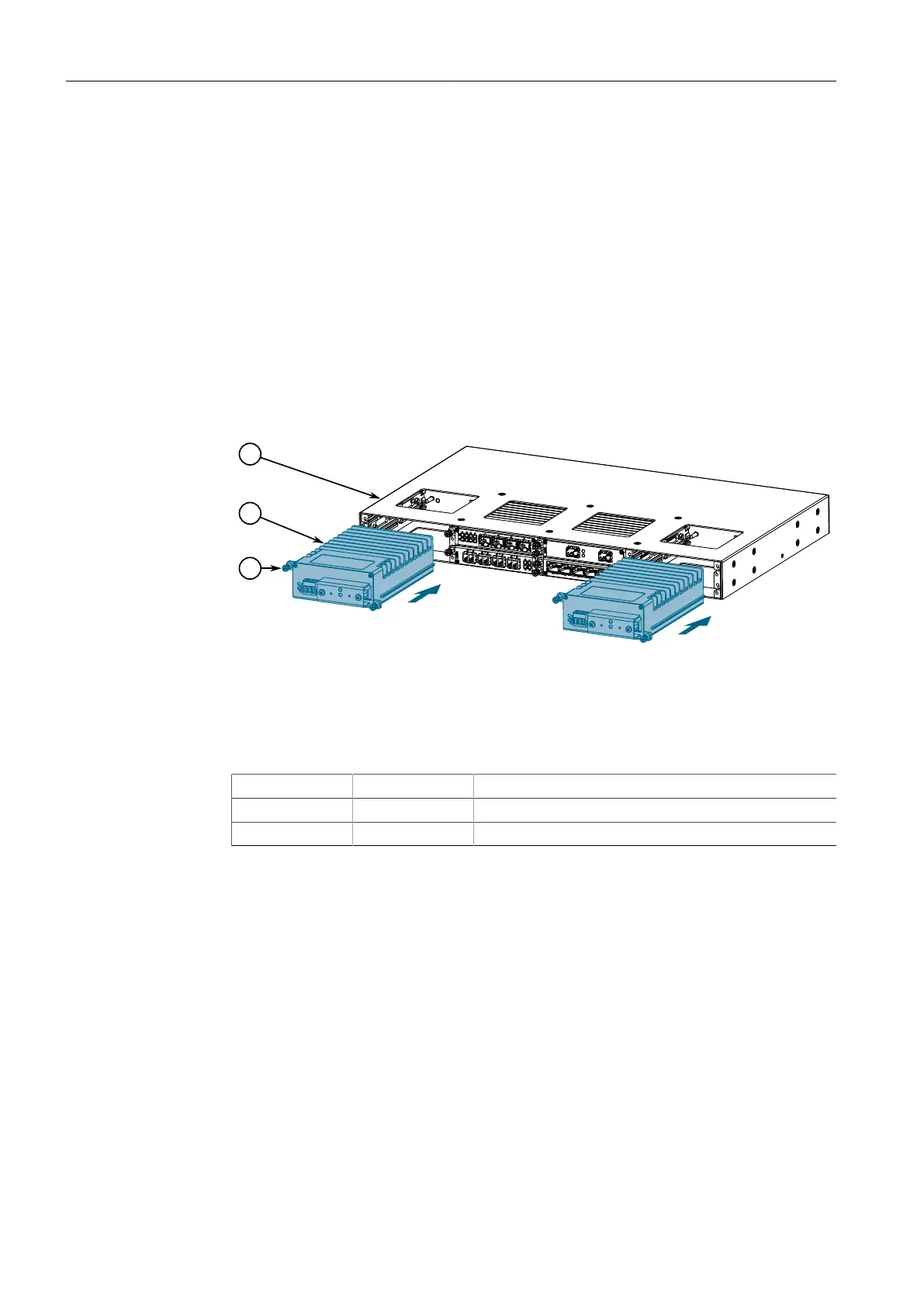

Figure4.6 Installing a Power Module
5. Hand-tighten the screws to secure the power module to the chassis.
6. Turn on power to the device and confirm the module is receiving and supplying
power. This is indicated by the LEDs on the module.
LED State Description
O Green The module is supplying power
I Green The module is receiving power
RUGGEDCOM RX1524
Installation Manual, 04/2021, C79000-G8976-1487-02
41
