Technical Specifications
5.5Dimension Drawings
31.8
463.8
4.7
6.35
29.0 51.1
161.0
212.1
11.7
21.1

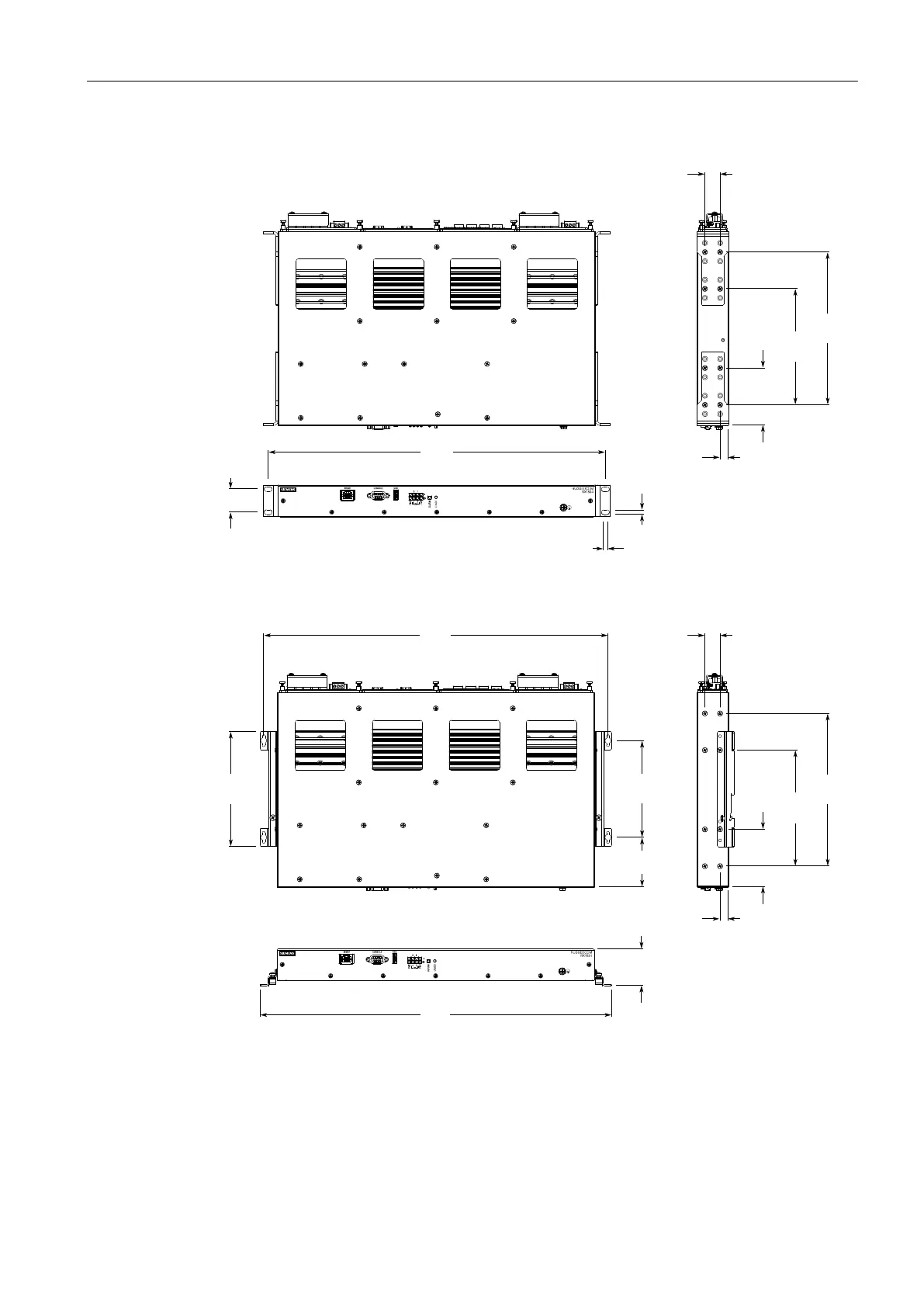

Figure5.2 Rack Mount Dimensions
479.0
160.0
134.668.8
489.2
51.6
11.7
29.0 51.1
161.0
212.1
21.1
Figure5.3 Panel and Din Rail Mount Dimensions
