Connecting up
5.3 Assembling an IE hybrid cable 2 x 2 + 4 x 0.34 with an IE IP 67 hybrid connector
SCALANCE W788-xPRO/RR / W74x-1PRO/RR
Operating Instructions, 07/2014, A5E02280448-08
25
Assembling an IE hybrid cable 2 x 2 + 4 x 0.34 with an IE IP 67
hybrid connector

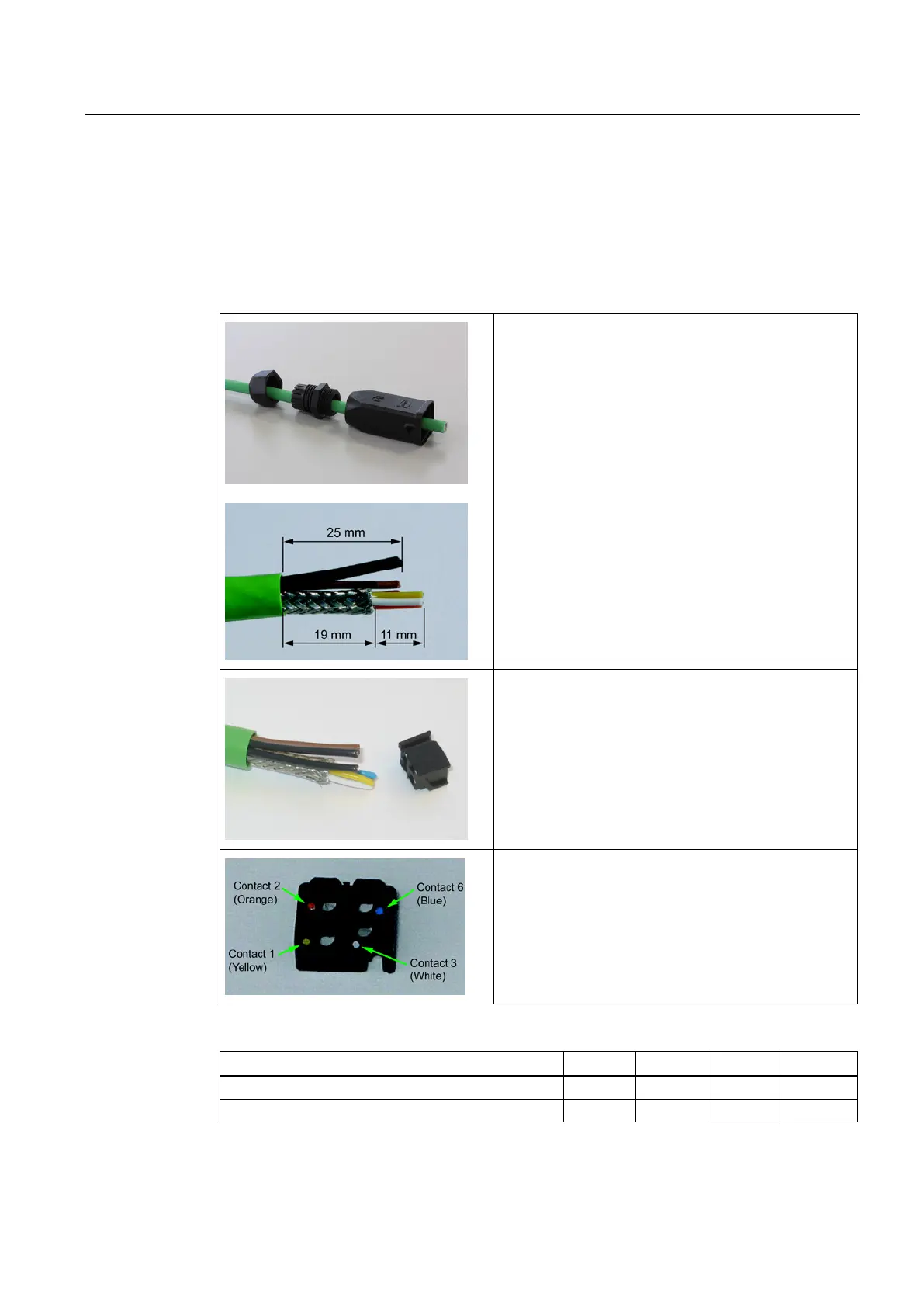

Procedure
Push the hexagonal nut, the sealing sleeve and the
housing over the cable jacket in the order shown.
Remove the following lengths of cable jacket and shield
braid:
• 25 mm for the power leads.
• 30 mm jacket for the data leads (shorten the braid by
11 mm).
Cut off the filler at the height of the cable jacket.
Arrange the data leads according to the color codes on
the splice element. The following table shows the
assignment of the data leads.
Contact and color assignment of the splice element.
Wire color code (standard)
Connector color code (Siemens IE)
Siemens IE FC RJ-45 socket (reference)
